GE IC697ALG320 Ruggedized Analog Output Module for Harsh Environments

Product Overview

GE IC697ALG320 Ruggedized Analog Output Module: Industrial Resilience for Harsh Environments

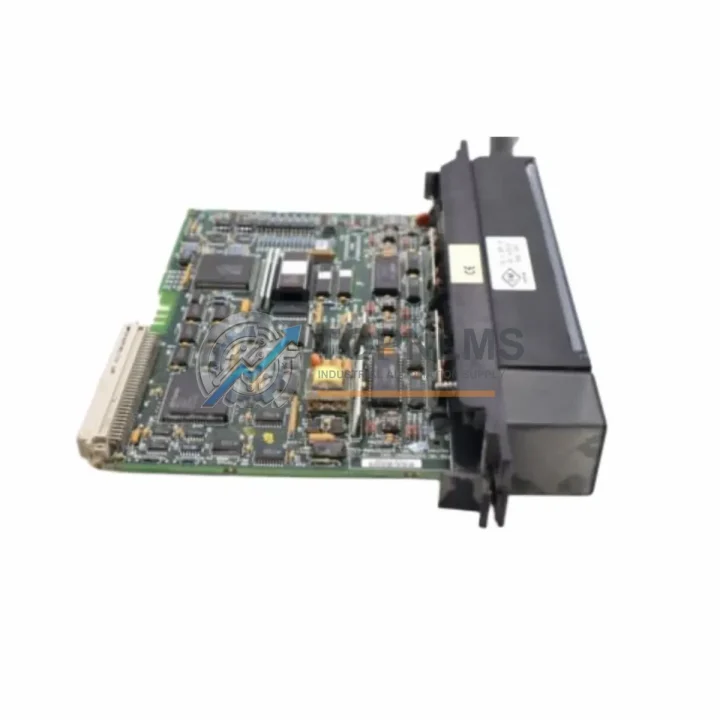

The GE IC697ALG320 is a 4-channel analog output module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry worldwide. Designed to deliver precise, stable analog signal output in environments characterized by extreme temperature fluctuations, high humidity, pervasive dust, mechanical vibration, and intense electromagnetic interference, the IC697ALG320 represents a benchmark in industrial-grade reliability. Whether installed in a petrochemical control cabinet, a mining automation panel, or a continuous steel production line, this module is built to perform without compromise.

At TOPNLMS, every IC697ALG320 unit is sourced through verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month quality warranty — giving procurement engineers and plant maintenance teams the confidence to specify this module as both a primary installation component and a critical spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC697ALG320 does not operate in isolation — it is a precision component within a broader GE Series 90-70 control architecture. In a typical industrial control cabinet, this analog output module works in close coordination with the IC697CPU772 central processing unit, which executes the ladder logic and function block programs that determine the analog setpoints sent to field devices such as control valves, variable frequency drives, and positioners. The backplane integrity of the Series 90-70 rack is maintained by the IC697PWR711 power supply module, which provides clean, regulated DC power to all installed modules — a critical factor in maintaining output accuracy under load transients.

For applications requiring mixed I/O, the IC697ALG320 is commonly paired with the IC697ALG440 analog input module, enabling closed-loop PID control where process variables are read, processed, and corrective analog signals are output — all within the same rack. In safety-critical installations, the system may also incorporate the IC697MDL340 discrete input module and IC697MDL740 discrete output module to handle digital interlocks and emergency shutdown signals alongside the analog control loop.

Communication integrity across the plant network is handled by modules such as the IC697CMM742 Ethernet communications module, which allows the Series 90-70 PLC to interface with SCADA systems, historian servers, and HMI panels over industrial Ethernet. In legacy installations using Genius Bus architecture, the IC697BEM731 bus controller module bridges the Series 90-70 rack to field-level Genius I/O blocks, extending the analog output capability to remote I/O stations without additional wiring infrastructure.

For installations where the IC697ALG320 drives variable frequency drives (VFDs) or servo amplifiers, proper signal shielding and grounding at the terminal block level is essential. Pairing this module with appropriately rated shielded cable assemblies and DIN-rail mounted surge protection devices ensures that the 4–20 mA or 0–10 V output signals remain clean and accurate even in environments with heavy motor switching noise or nearby welding equipment.

Application in Critical Infrastructure

The GE IC697ALG320 has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas processing facilities, this module controls the analog setpoints of pressure control valves, flow regulators, and compressor speed references — operating continuously in environments where ambient temperatures can exceed 50°C and airborne hydrocarbon particulates are a constant concern. Its robust backplane connection and channel isolation ensure that a fault on one output channel does not propagate to adjacent channels or disrupt the CPU’s scan cycle.

In coal and metal mining operations, the IC697ALG320 is deployed in conveyor speed control systems and ventilation fan regulation, where the module must withstand constant mechanical vibration from heavy machinery, coal dust ingress, and frequent power fluctuations caused by large motor starts. The Series 90-70 platform’s inherent hot-standby redundancy capability — when paired with the appropriate redundancy CPU modules — allows the analog output module to remain in service even during a primary controller fault, a requirement for continuous mining operations where unplanned downtime carries significant safety and financial consequences.

In power generation and grid substations, the IC697ALG320 provides analog reference signals to excitation systems, turbine governor controls, and automatic voltage regulators. The module’s 12-bit resolution ensures fine-grained control of generator output, while its EMI-hardened design withstands the intense electromagnetic fields generated by high-voltage switching equipment and bus bars in close proximity.

Water and wastewater treatment plants rely on the IC697ALG320 for dosing pump speed control, aeration blower regulation, and filter backwash sequencing — applications where the module must operate reliably in high-humidity environments with corrosive chemical vapors. Similarly, in metallurgical and steel production facilities, this module manages the analog outputs for furnace temperature control, rolling mill speed references, and cooling water flow regulation, where thermal cycling and radiated heat from furnaces create some of the most challenging operating conditions in industrial automation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the IC697ALG320?
The 12-month warranty provided by TOPNLMS covers full functional performance of the IC697ALG320 module. If the module fails to perform its specified analog output functions under normal operating conditions within 12 months of shipment, TOPNLMS will provide a replacement unit or full refund. Each unit undergoes pre-shipment functional testing to verify channel output accuracy, backplane communication integrity, and power consumption within specification before dispatch.

Q2: How is compatibility with my existing Series 90-70 rack verified?
The IC697ALG320 is a standard IC697-series rack-mount module and is mechanically and electrically compatible with all GE Series 90-70 backplanes, including the IC697CHS750, IC697CHS782, and IC697CHS790 rack assemblies. It is configured via the GE Proficy Machine Edition (formerly Logicmaster 90) programming environment. If you are integrating this module into an existing system, our technical team can assist with configuration file review and compatibility confirmation prior to purchase.

Q3: Can TOPNLMS guarantee long-term supply availability for the IC697ALG320?
Yes. TOPNLMS maintains dedicated inventory of GE Series 90-70 modules, including the IC697ALG320, to support long-term maintenance contracts and planned replacement programs. As the Series 90-70 platform approaches end-of-life from the OEM, sourcing reliable spare modules becomes increasingly critical. TOPNLMS specializes in providing verified, tested legacy PLC components to ensure your installed base remains operational without forced migration to new platforms.

Q4: What safety precautions should be observed when replacing the IC697ALG320 in a live system?
While the Series 90-70 platform supports hot-insertion of I/O modules in certain configurations, it is strongly recommended to follow your site’s lockout/tagout (LOTO) procedures before replacing any analog output module in a safety-critical application. Ensure that all field devices connected to the module’s output channels are placed in a safe state (e.g., control valves in fail-safe position, VFDs at zero speed reference) before removing the module. After installation, verify channel output values against expected setpoints before returning the control loop to automatic mode.
