GE IC697ALG230 Replacement/Upgrade Solution for Series 90-70

Product Overview

GE IC697ALG230 Replacement/Upgrade Solution for Series 90-70: Smooth Migration from Legacy Analog Output Systems

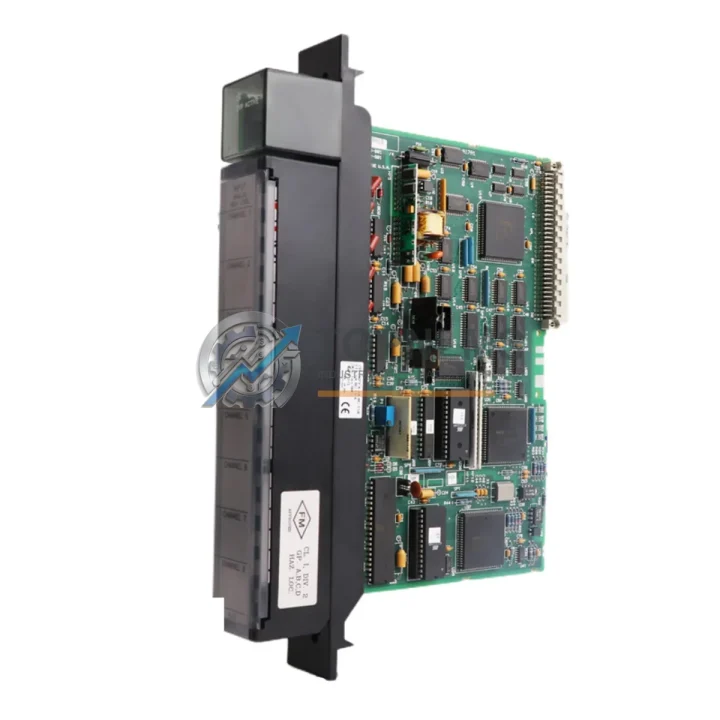

The GE Fanuc IC697ALG230 is an 8-channel analog output module designed for the Series 90-70 PLC platform. As GE Fanuc’s Series 90-70 product line reaches end-of-life in many industrial facilities, the IC697ALG230 remains one of the most sought-after replacement and upgrade components for engineers managing legacy distributed control systems, process automation panels, and continuous manufacturing lines. Whether you are replacing a failed unit, building a spare-parts buffer, or executing a phased migration from an older GE Series 90-30 or Series Six architecture, the IC697ALG230 provides a reliable, wiring-compatible solution that minimizes engineering rework and production downtime.

This module outputs 8 independent analog channels, typically configured for 4–20 mA current loop or ±10 V voltage signals, making it directly compatible with field instruments such as control valves, variable-frequency drives, and positioners already wired to your existing terminal assemblies. When migrating from an earlier-generation analog output card such as the IC697ALG320 or IC697ALG321, the IC697ALG230 slots into the same Series 90-70 VME rack — including the IC697CHS750, IC697CHS782, and IC697CHS790 rack configurations — without requiring physical rack modifications. Field wiring connected to the IC697ACC300 or compatible terminal block assemblies can typically be retained as-is, dramatically reducing the labor cost and risk associated with a hot-cutover replacement.

For facilities running GE Proficy Machine Edition or the legacy Logicmaster 90-70 programming environment, the IC697ALG230 is recognized natively by the hardware configuration tool. No new I/O driver installation is required. Engineers can import the existing hardware configuration, swap the module reference, verify the analog scaling blocks, and download the updated program — often completing the software side of the replacement within a single maintenance window. This is a critical advantage over cross-brand migration paths that require full I/O remapping and signal re-engineering.

In systems where the IC697CPU772, IC697CPU781, or IC697CPU788 CPU module serves as the rack controller, the IC697ALG230 communicates over the Series 90-70 VME backplane without additional configuration. For multi-rack architectures using the IC697BEM711 Bus Expansion Module or remote I/O drops connected via the IC697CMM742 communications module, the analog output module integrates seamlessly into the existing network topology. There is no need to reconfigure Genius Bus or SRTP Ethernet communication parameters solely because of an analog output card swap.

Power supply compatibility is another key consideration during replacement. The IC697ALG230 draws its logic power from the Series 90-70 rack backplane, supplied by the installed power supply module — typically the IC697PWR710 or IC697PWR724. No separate field-side power wiring changes are required for the module itself, though field loop power for 4–20 mA circuits must be verified against your existing panel design. This makes the IC697ALG230 one of the lowest-disruption replacement options available for Series 90-70 analog output applications.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Series 90-70 analog output migration rarely involves a single module swap. In practice, engineers sourcing the IC697ALG230 are often simultaneously addressing adjacent components in the same rack or control cabinet. The IC697PWR710 power supply module is frequently replaced alongside analog I/O cards when a rack has been in service for more than a decade, as aging power supplies are a common root cause of intermittent analog signal faults. Similarly, the IC697MDL340 discrete input module and IC697MDL341 discrete output module are often refreshed during the same maintenance outage to consolidate downtime and reduce future service calls.

For facilities transitioning from Genius Bus field I/O to a more modern network architecture, the IC697BEM711 Bus Expansion Module and IC697CMM742 Ethernet communications module are key components to evaluate. Upgrading the communications layer while retaining the IC697ALG230 for analog output allows a phased migration strategy — modernizing the network without requiring a full I/O hardware replacement in a single project phase. This approach is particularly common in chemical processing, water treatment, and power generation facilities where continuous operation constraints limit the scope of any single maintenance window.

When the control cabinet layout requires signal conditioning between the PLC analog output and legacy field instruments, DIN-rail-mounted signal isolators and loop-powered transmitter barriers are typically installed alongside the IC697ALG230 without any modification to the module itself. The IC697ACC300 terminal assembly provides the physical interface between the module’s field connector and the cabinet wiring, and is available as a separate spare component for facilities that need to replace damaged terminal blocks without disturbing the module installation.

For HMI integration, facilities running GE iFIX or Wonderware InTouch SCADA systems connected to the Series 90-70 via SRTP Ethernet will find that the IC697ALG230 analog output tags are immediately accessible after the hardware configuration download, with no OPC server reconfiguration required in most standard installations.

Retrofit Guidance FAQ

Q: Can I reuse existing field wiring when replacing IC697ALG320 with IC697ALG230?
A: In most cases, yes. Both modules use the same Series 90-70 field connector pinout via the IC697ACC300 terminal assembly. Verify your specific wiring diagram against the IC697ALG230 datasheet before cutover, but field wiring changes are typically not required.

Q: Do I need to modify my Logicmaster or Proficy hardware configuration?
A: You will need to update the module reference in the hardware configuration tree and re-download the configuration to the CPU. Analog scaling blocks (SCALE_W / SCALE_R function blocks) should be verified for correct engineering unit ranges after the swap.

Q: Is the IC697ALG230 compatible with Genius Bus remote I/O drops?
A: The IC697ALG230 is a rack-mounted VME module and is not a Genius Bus device itself. It communicates with the CPU over the VME backplane. Genius Bus topology and the IC697BEM711 bus controller configuration are unaffected by an analog output module swap within the local rack.

Q: What is the physical installation space requirement?
A: The IC697ALG230 occupies a single VME slot in any standard Series 90-70 rack (IC697CHS750, CHS782, or CHS790). No adjacent slot clearance is required beyond standard Series 90-70 module spacing.

Q: How do I verify the module is functioning correctly after installation?
A: After downloading the updated hardware configuration, use the Proficy Machine Edition online monitoring function or the LM90-70 I/O Force utility to command each analog output channel to a known engineering value and verify the corresponding field signal with a calibrated loop calibrator or multimeter at the terminal block.

Q: Can the IC697ALG230 be used in a redundant CPU configuration?
A: Yes. The IC697ALG230 is compatible with Series 90-70 redundant CPU configurations using the IC697CPU788 and the associated redundancy synchronization modules. Analog output behavior during CPU switchover follows the standard Series 90-70 redundancy hold-last-state or go-to-preset logic as configured in the application program.

Warranty Assurance

Every IC697ALG230 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes functional verification including backplane communication check, analog output channel signal verification, and visual inspection for connector integrity and component condition. Units that do not pass our pre-shipment test protocol are not dispatched.

In the event of a warranty claim, TOPNLMS provides replacement dispatch or repair coordination within 5 business days of claim confirmation. Our technical support team is available to assist with installation questions, compatibility verification, and commissioning guidance via email at [email protected] or by phone at +86 18359293191. We maintain stock of the IC697ALG230 and related Series 90-70 components in Xiamen, China, enabling fast international dispatch to minimize your facility’s exposure to unplanned downtime.

For urgent replacement requirements, expedited shipping options are available to most destinations. Please contact our sales team directly to confirm lead time and shipping method for your specific location and timeline.
