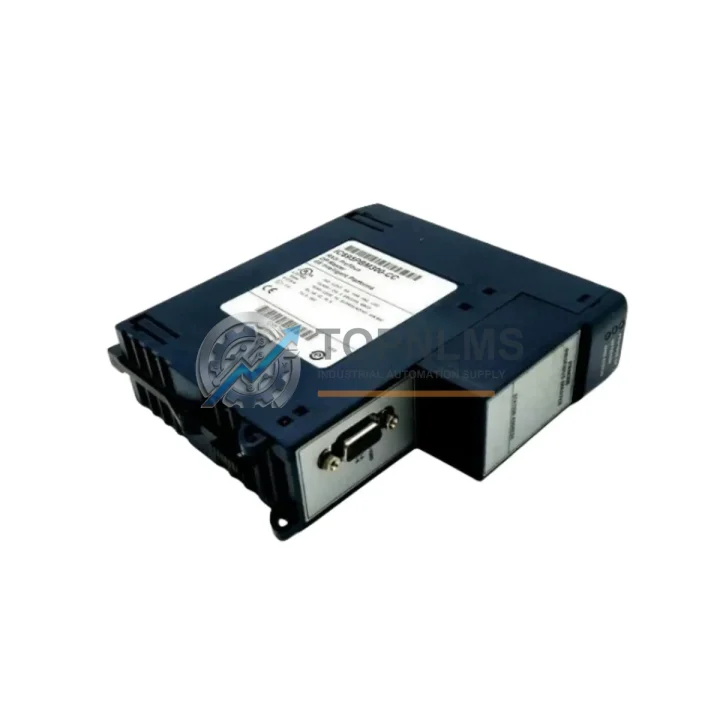

GE IC695PBM300 Ruggedized PROFIBUS DP Master Module for Harsh Environments

Product Overview

GE IC695PBM300 Ruggedized PROFIBUS DP Master Module for Harsh Environments

The GE IC695PBM300 is a high-performance PROFIBUS DP Master Module engineered for the PACSystems RX3i platform, purpose-built to deliver uninterrupted communication integrity in the most demanding industrial environments. Whether deployed in oil refineries, underground mining operations, high-voltage power substations, water treatment facilities, or continuous steel production lines, the IC695PBM300 maintains deterministic fieldbus communication where system failure is not an option.

Designed to GE Intelligent Platforms’ rigorous industrial hardening standards, this module operates reliably across wide temperature ranges, high-humidity conditions, and environments saturated with airborne particulates, vibration, and electromagnetic interference. Its robust backplane integration within the RX3i universal backplane ensures secure mechanical seating and stable signal transmission even under sustained mechanical shock — a critical requirement in heavy-press manufacturing, compressor stations, and rotating-equipment monitoring applications.

The IC695PBM300 supports PROFIBUS DP-V0 and DP-V1 protocols, enabling cyclic and acyclic data exchange with up to 125 slave devices per segment. This makes it an ideal master controller for distributed I/O networks, variable frequency drives (VFDs), intelligent motor control centers, and remote sensor arrays. In process industries, it routinely interfaces with PROFIBUS-capable field instruments including pressure transmitters, flow meters, and positioners — all managed through a single, deterministic communication backbone.

Within a complete PACSystems RX3i control architecture, the IC695PBM300 operates alongside complementary modules such as the IC695CPU310 or IC695CPU315 central processing units, IC695ETM001 Ethernet communication modules, IC695ALG600 analog I/O modules, and IC695MDL765 discrete output modules. For safety-critical applications, it integrates with GE’s RX3i Safety CPU and safety I/O modules to form a unified safety instrumented system (SIS) compliant with IEC 61508 requirements. Power integrity is maintained through IC695PSA040 or IC695PSD040 power supply modules, which provide regulated, noise-filtered DC power to the entire rack assembly.

In hazardous-area installations — such as Zone 1 or Zone 2 classified environments in petrochemical plants — the IC695PBM300 is typically housed in certified explosion-proof or purged-and-pressurized control cabinets, paired with PROFIBUS repeaters and optical isolators to extend segment reach and provide galvanic isolation from field wiring. Terminal modules and marshalling panels further protect the communication infrastructure from transient voltage spikes and ground loops common in high-power industrial facilities.

Rugged Specifications Table

Comprehensive Protection Solutions

Reliable industrial automation is never the result of a single component — it is the outcome of a carefully integrated system. The IC695PBM300 is most effective when deployed as part of a coordinated control architecture. In a typical RX3i control cabinet, the module shares rack space with the IC695CPU315 processor, which handles ladder logic execution and coordinates all I/O scanning. The IC695ETM001 Ethernet module provides supervisory SCADA connectivity via Modbus TCP or SRTP, while the IC695ALG600 handles precision analog signal conditioning from 4–20 mA field transmitters.

For discrete control, IC695MDL765 output modules drive solenoid valves, motor starters, and relay coils — all synchronized through the PROFIBUS network managed by the IC695PBM300. In high-availability configurations, a redundant CPU pair (IC695CPU320 with IC695RMX128 redundancy module) ensures bumpless transfer in the event of a processor fault, protecting continuous production processes from unplanned downtime.

On the field side, the IC695PBM300 communicates with PROFIBUS DP slave devices including GE VersaMax remote I/O drops, Siemens ET 200M distributed I/O stations, ABB AC500 I/O modules, and third-party PROFIBUS-capable variable frequency drives. Safety relay modules and emergency stop monitoring units connected via PROFIBUS DP-V1 enable diagnostic data retrieval without interrupting cyclic process control — a key advantage in safety-instrumented systems requiring continuous proof-test monitoring.

Application in Critical Infrastructure

In oil and gas upstream facilities, the IC695PBM300 serves as the communication backbone for wellhead control panels, managing pressure safety valves, flow control actuators, and gas detection systems across PROFIBUS segments spanning hundreds of meters. Its optical isolation capability and surge-protected RS-485 interface protect the controller from the high-energy transients common near high-voltage switchgear and variable-speed pump drives.

In coal and metal mining operations, where ambient temperatures fluctuate dramatically and coal dust creates both explosion risk and signal interference, the IC695PBM300’s sealed module design and EMI-hardened communication circuitry maintain network integrity across conveyor control systems, ventilation fan drives, and hoisting equipment PLCs. Its deterministic scan cycle ensures that safety interlocks respond within defined time windows, a non-negotiable requirement under IEC 62061 and ISO 13849 machinery safety standards.

Power generation facilities — including thermal, hydroelectric, and combined-cycle gas turbine plants — rely on the IC695PBM300 to coordinate turbine governor I/O, excitation system feedback, and balance-of-plant automation. In water and wastewater treatment, it manages PROFIBUS networks connecting pump VFDs, chlorination dosing systems, and SCADA RTUs across geographically distributed lift stations. Metallurgical plants use it to synchronize rolling mill drives, furnace temperature control loops, and ladle transfer automation — environments where millisecond-level communication latency and zero packet loss are engineering requirements, not aspirations.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the IC695PBM300?
Every IC695PBM300 unit shipped by TOPNLMS carries a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed with priority technical review and replacement dispatch within agreed lead times. Our quality commitment is backed by pre-shipment functional testing on calibrated test benches.

Q2: How is each unit tested before shipment?
All IC695PBM300 modules undergo multi-point inspection prior to dispatch: visual inspection for physical integrity, backplane connector verification, firmware version confirmation, and where applicable, powered functional testing to validate PROFIBUS communication initialization and LED status indication. Units that do not pass inspection are quarantined and not shipped.

Q3: Is the IC695PBM300 compatible with existing PACSystems RX3i racks and CPUs?
Yes. The IC695PBM300 is fully compatible with all IC694 and IC695 series universal backplanes and is supported by IC695CPU310, IC695CPU315, IC695CPU320, and IC695CPU330 processors running current Proficy Machine Edition firmware. It is backward-compatible with existing PROFIBUS DP slave device networks without requiring slave reconfiguration.

Q4: Can TOPNLMS support long-term or repeat procurement of the IC695PBM300?
Yes. TOPNLMS maintains dedicated inventory reserves for high-demand PACSystems RX3i modules including the IC695PBM300, supporting both emergency single-unit replacement orders and scheduled bulk procurement for MRO programs. Our supply chain covers both new-production and certified-refurbished units, with full traceability documentation available on request. Contact [email protected] or call +86 18359293191 to discuss volume pricing and lead times.
