GE IC695NIU001-ACAD Ruggedized Ethernet NIU Harsh Environments

Product Overview

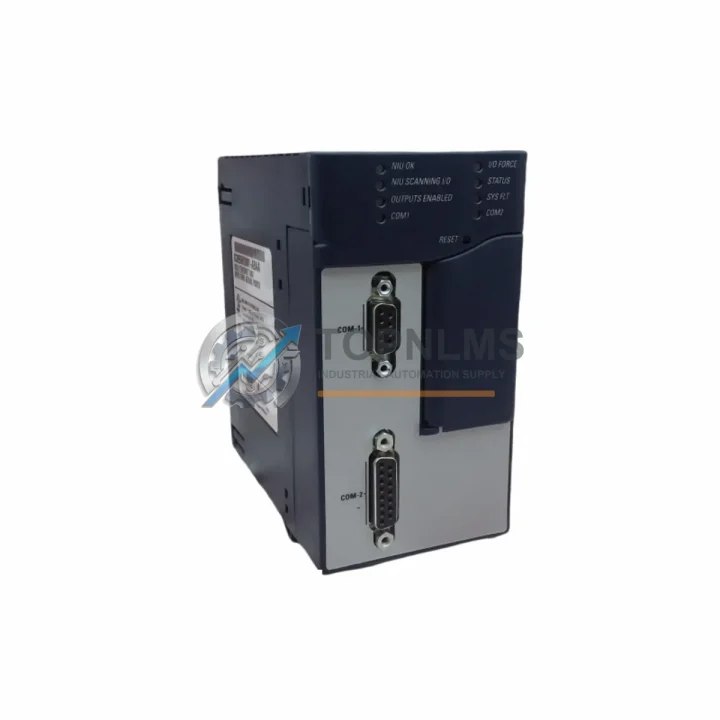

GE IC695NIU001-ACAD Ruggedized Ethernet NIU Harsh Environments

The GE IC695NIU001-ACAD is a high-performance Network Interface Unit (NIU) engineered for the PACSystems RX3i platform, designed to deliver uninterrupted Ethernet and dual serial communications in the most demanding industrial environments. Whether deployed in oil refineries, underground mining operations, high-voltage power substations, water treatment facilities, or continuous steel production lines, this module is built to sustain reliable data exchange where conventional networking hardware would fail.

Industrial automation systems operating in harsh environments face a relentless combination of threats: extreme temperature swings, high ambient humidity, airborne particulate contamination, mechanical vibration from heavy machinery, and pervasive electromagnetic interference (EMI) generated by variable frequency drives, large motor starters, and high-current bus bars. The IC695NIU001-ACAD addresses each of these challenges through its ruggedized hardware design, conformal-coated PCB, and compliance with industrial-grade environmental standards — ensuring that your PACSystems RX3i backplane maintains its network backbone without interruption.

In a typical RX3i control cabinet, the IC695NIU001-ACAD serves as the communications hub connecting the CPU module — such as the IC695CPE330 or IC695CPE302 — to the plant Ethernet network, while simultaneously maintaining legacy serial links via its dual RS-232/RS-485 serial ports. This dual-port serial capability is critical in brownfield installations where older MODBUS RTU devices, barcode scanners, or third-party instrumentation must coexist with modern Ethernet-based SCADA systems. The module slots directly into the IC695CHS016 or IC695CHS012 universal backplane, sharing the high-speed RX3i backplane bus for deterministic, low-latency data transfer.

The IC695NIU001-ACAD is fully compatible with the broader PACSystems RX3i ecosystem. It operates alongside analog and discrete I/O modules such as the IC695ALG600 analog input module and IC695MDL664 discrete output module, enabling tightly integrated process control loops. In safety-critical applications, it can coexist with IC695ETM001 Ethernet transmitter modules and IC695PSD040 power supply modules, all sharing the same backplane while maintaining electrical isolation between communication domains. For installations requiring redundant power, the IC695PSA040 power supply provides a hot-standby alternative, ensuring the NIU remains powered even during a primary supply fault.

In petrochemical and oil and gas facilities, the IC695NIU001-ACAD is frequently deployed in Zone 2 classified areas within sealed, purged, or pressurized control enclosures. Its wide operating temperature range and resistance to sulfur-bearing atmospheres make it suitable for upstream wellhead automation, midstream pipeline SCADA, and downstream refinery distributed control. The module’s dual serial ports are often used to interface with HART multiplexers or Modbus RTU field transmitters, aggregating process data from pressure, temperature, and flow instruments before forwarding it upstream to the DCS historian.

In mining and mineral processing environments, where vibration from crushers, conveyors, and ball mills is constant, the IC695NIU001-ACAD’s robust mechanical design and secure backplane locking mechanism prevent intermittent contact failures — a leading cause of unplanned downtime in these settings. The module is routinely paired with IC695CMM002 communications modules and IC695RMX128 reflective memory modules to support distributed, multi-rack control architectures spanning large processing plants.

Power generation and grid infrastructure operators rely on the IC695NIU001-ACAD for substation automation, turbine control, and generator protection systems. In these applications, the module’s EMI immunity — validated against IEC 61000-4 series surge, burst, and conducted immunity tests — is non-negotiable. It enables reliable GOOSE messaging and IEC 61850 data exchange when integrated with appropriate protocol conversion gateways, keeping protection relay coordination data flowing even during switching transients and lightning-induced surges.

Water and wastewater treatment plants benefit from the IC695NIU001-ACAD’s resistance to high-humidity environments and its ability to maintain stable communications in facilities where chlorine gas, hydrogen sulfide, and other corrosive agents are present. The module supports remote I/O expansion via the RX3i backplane, allowing operators to extend control to pump stations, chemical dosing skids, and filtration systems from a centralized control room — reducing the need for local operator intervention in hazardous areas.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC695NIU001-ACAD does not operate in isolation — it is the communications backbone of a complete PACSystems RX3i control architecture. In a fully configured control cabinet, it works in concert with the IC695CPE330 CPU module, which executes the ladder logic and function block programs governing process control decisions. Discrete field signals are marshalled through IC695MDL664 output modules and IC695MDL654 input modules, while analog process variables — temperature, pressure, flow — are conditioned by the IC695ALG600 analog input module. Power integrity across the entire rack is maintained by the IC695PSA040 power supply, which provides regulated 5 VDC and 3.3 VDC backplane power with built-in overvoltage and short-circuit protection.

For installations requiring inter-rack communication or remote I/O expansion, the IC695CMM002 serial communications module extends the control network to remote panels via RS-485 Modbus RTU, while the IC695ETM001 Ethernet transmitter module provides an additional Ethernet port for historian or HMI connectivity. In high-availability architectures, the IC695RMX128 reflective memory module enables hot-standby CPU redundancy, ensuring zero-downtime failover in the event of a primary controller fault. Surge protection devices and DIN-rail mounted terminal blocks from the RX3i accessories catalog complete the cabinet, providing a fully protected, standards-compliant automation solution.

Application in Critical Infrastructure

In oil and gas upstream operations, the IC695NIU001-ACAD is deployed in wellhead RTUs and compressor station control panels, where it manages communications between the PACSystems RX3i CPU and the SCADA master station over Ethernet, while simultaneously polling field instruments via its serial ports. Its resistance to hydrogen sulfide atmospheres and wide temperature tolerance make it suitable for both arctic and desert field deployments.

In coal and metal mining, the module is installed in surface control rooms and underground electrical substations, where it coordinates conveyor belt sequencing, ventilation fan control, and hoisting system interlocks. The vibration and shock resistance of the IC695NIU001-ACAD ensures that backplane communications remain stable even when installed in close proximity to blasting operations or heavy crushing equipment.

Power utilities deploy the IC695NIU001-ACAD in gas turbine control systems and hydroelectric plant automation, where deterministic Ethernet communications are required for turbine speed regulation, generator synchronization, and protection relay coordination. The module’s EMI immunity is particularly valued in high-voltage switchgear rooms, where switching transients can disrupt less robust networking hardware.

In metallurgical plants — including electric arc furnace (EAF) steelmaking and aluminum smelting — the IC695NIU001-ACAD manages communications in environments characterized by extreme radiant heat, heavy electromagnetic interference from high-current bus systems, and airborne metallic dust. Its conformal-coated PCB and sealed connector interfaces provide the contamination resistance necessary for reliable long-term operation in these conditions.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the IC695NIU001-ACAD?
All IC695NIU001-ACAD units supplied by TOPNLMS carry a 12-month functional warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, TOPNLMS will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned unit.

Q2: How is each unit tested before shipment?
Every IC695NIU001-ACAD undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, power-on functional test verifying Ethernet link establishment and serial port activity, and firmware version verification. Units are shipped with an inspection report confirming test results. New-in-box units are shipped in original GE packaging with factory seals intact.

Q3: Is the IC695NIU001-ACAD compatible with my existing PACSystems RX3i rack and CPU?
Yes. The IC695NIU001-ACAD is compatible with all standard RX3i universal backplanes (IC695CHS016, IC695CHS012) and is supported by PACSystems RX3i CPUs running Proficy Machine Edition firmware version 7.0 and above. It is backward-compatible with existing RX3i I/O modules and does not require backplane or CPU replacement in most upgrade scenarios. Contact TOPNLMS with your existing CPU firmware version for a compatibility confirmation before ordering.

Q4: Can TOPNLMS guarantee long-term supply and replacement support?
TOPNLMS maintains a dedicated inventory of PACSystems RX3i modules, including the IC695NIU001-ACAD, to support long-term MRO (Maintenance, Repair, and Operations) procurement. For customers managing aging RX3i installations where OEM supply has been discontinued, TOPNLMS offers a standing stock reservation service — contact our team to discuss volume pricing and guaranteed availability agreements. Emergency same-day dispatch is available for critical plant breakdowns.
