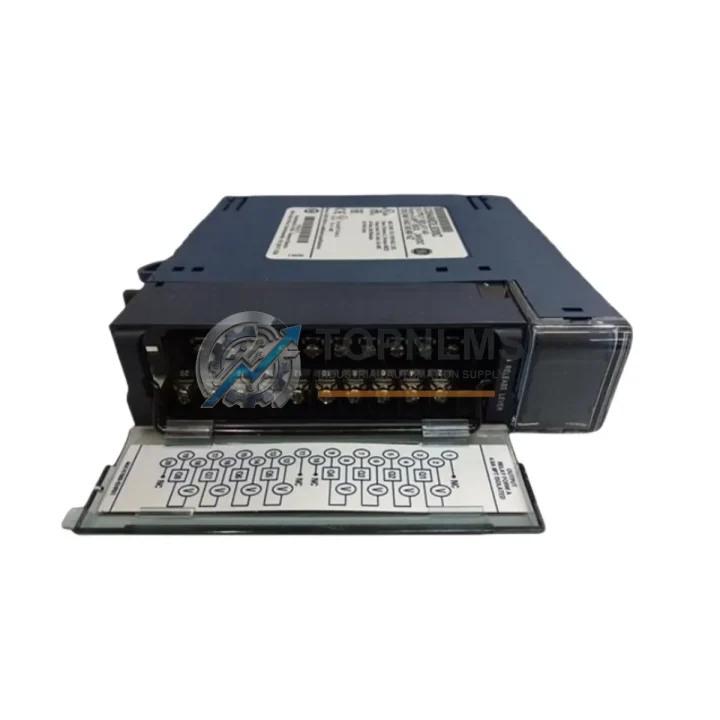

GE IC694MDL930C Ruggedized Relay Output Module

Product Overview

GE IC694MDL930C Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The GE IC694MDL930C is a 16-point relay output module engineered for the GE Series 90-30 PLC platform, one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to deliver reliable discrete output switching in environments characterized by high temperatures, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IC694MDL930C is a cornerstone component for engineers who cannot afford unplanned downtime.

Each of the 16 relay output points is capable of switching both AC and DC loads, making this module exceptionally versatile across mixed-signal control panels. The relay contact architecture provides inherent galvanic isolation between the PLC backplane logic and field-side devices, a critical safety attribute in applications where personnel protection and equipment integrity are non-negotiable. Whether controlling motor starters, solenoid valves, pilot lights, or alarm annunciators, the IC694MDL930C delivers consistent, repeatable switching performance across its full rated operating range.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC694MDL930C does not operate in isolation — it is part of a tightly integrated control architecture. In a typical Series 90-30 control cabinet, this relay output module works in concert with the GE IC693CPU374 or IC694CPU310 central processing units, which execute the ladder logic programs that drive each output point. Discrete input signals are gathered by companion modules such as the GE IC694MDL660 32-point DC input module, providing the CPU with real-time field status before commanding the IC694MDL930C to actuate downstream devices.

Power integrity is maintained by the GE IC694PWR331 power supply module, which conditions incoming AC mains into stable 5 VDC and 24 VDC backplane rails. In installations where the control panel must communicate upstream to a SCADA system or DCS, the GE IC694CMM321 communications module provides Ethernet connectivity, while the IC694DSM314 motion control module can coordinate servo or stepper axes within the same rack. For safety-critical zones requiring IEC 61508 compliance, engineers often pair the Series 90-30 I/O tier with a dedicated GE RX3i Safety CPU or an external safety relay module to create a layered protection architecture.

Terminal block assemblies and field wiring connectors — including the IC694ACC300 series terminal blocks — simplify field wiring to the IC694MDL930C’s output commons, reducing installation time and the risk of wiring errors in high-density panels. Surge protection devices and DIN-rail mounted EMC filters are routinely installed upstream of the relay output commons to protect contact life in environments with inductive load switching transients.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the IC694MDL930C is deployed in wellhead control panels and pipeline compressor stations where it commands shutdown valves, chemical injection pumps, and flare ignition systems. The relay contact isolation ensures that high-voltage field devices cannot back-feed into the PLC backplane during fault conditions, a requirement explicitly addressed in IEC 61511 functional safety standards for the process industry.

In coal and metal mining operations, the module controls conveyor belt starters, ventilation fan contactors, and dewatering pump motor control centers. The module’s rated operating temperature range and vibration tolerance make it suitable for installation in surface control rooms as well as underground electrical substations where ambient conditions are demanding and maintenance access is infrequent.

At power generation and electrical substation sites, the IC694MDL930C interfaces with protection relay panels, breaker trip circuits, and annunciator systems. Its dry contact outputs are compatible with the 110 VDC station battery systems commonly used in substation control schemes, providing a direct interface without additional signal conditioning hardware.

In municipal water and wastewater treatment plants, the module drives pump motor starters, valve actuators, and chemical dosing systems across multiple process stages. The non-condensing humidity rating ensures reliable operation in wet process areas where condensation on control equipment is a persistent concern.

For metallurgical and steel mill applications, the IC694MDL930C withstands the high electromagnetic interference generated by large variable frequency drives, arc furnaces, and induction heating equipment. Its relay contact outputs provide the noise immunity needed to command cooling water valves, fume extraction fans, and casting line conveyors without spurious trips caused by conducted or radiated EMI.
