GE IC694MDL645 Ruggedized DC Input Module for Harsh Environments

Product Overview

GE IC694MDL645 Ruggedized DC Input Module for Harsh Industrial Environments

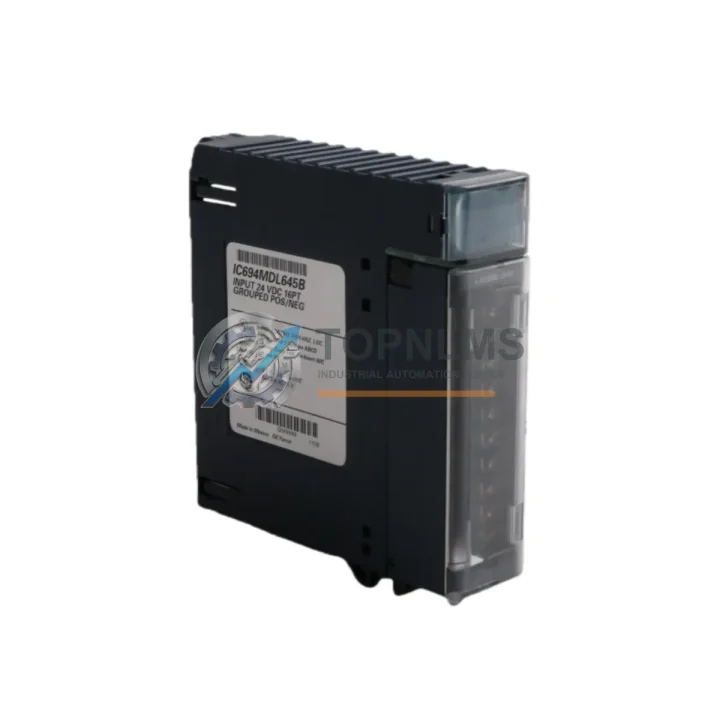

The GE Fanuc IC694MDL645 is a 16-point, 12/24VDC discrete input module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably under the demanding conditions found in continuous production lines, heavy manufacturing, and process-critical infrastructure, the IC694MDL645 delivers consistent signal acquisition performance even when exposed to high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI).

In industrial environments where uptime is non-negotiable — oil refineries, natural gas compression stations, underground mining operations, power generation facilities, water treatment plants, and steel mills — the integrity of every discrete input signal directly affects system safety and production continuity. The IC694MDL645 provides the electrical isolation, noise immunity, and thermal tolerance required to maintain reliable communication between field devices and the Series 90-30 CPU, even when installed in control cabinets subject to radiated and conducted interference from variable frequency drives (VFDs), large motor starters, and high-current switching equipment.

Each input channel on the IC694MDL645 is optically isolated, providing a robust barrier between field-level wiring and the PLC backplane. This isolation architecture protects the GE IC694CHS392 or IC694CHS398 baseplate and the connected IC694CPU310 or IC694CPU323 CPU modules from transient voltage spikes and ground loop currents that are common in heavy industrial wiring environments. The module accepts both 12VDC and 24VDC input signals, making it compatible with a broad range of field sensors, proximity switches, limit switches, and pushbutton stations without requiring additional signal conditioning hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC694MDL645 does not operate in isolation — it is a critical node within a broader Series 90-30 control architecture. In a fully configured control cabinet, it works in concert with discrete output modules such as the GE IC694MDL740 (16-point relay output) and IC694MDL754 (32-point 24VDC output) to form a complete I/O subsystem capable of managing both input sensing and actuator control across the production floor.

Power integrity for the entire rack is maintained by the GE IC694PWR321 or IC694PWR330 power supply modules, which provide regulated 5VDC backplane power with built-in protection against input voltage fluctuations — a common challenge in facilities where large inductive loads cause line voltage sags and surges. Stable backplane power is essential for the IC694MDL645 to deliver accurate, glitch-free input scanning across all 16 channels.

For applications requiring analog signal acquisition alongside discrete inputs, the GE IC694ALG220 analog input module can be installed in adjacent slots on the same baseplate, allowing the Series 90-30 system to monitor process variables such as temperature, pressure, and flow rate within the same scan cycle. Communication with supervisory SCADA systems or distributed control systems (DCS) is handled by modules such as the IC694CMM302 communications module, which supports Ethernet connectivity and enables remote diagnostics — reducing the need for on-site intervention in hazardous or hard-to-access locations.

In safety-critical installations, the IC694MDL645 is often deployed alongside dedicated safety relay modules and emergency stop circuits that interface with the Series 90-30 CPU to implement machine guarding, interlock logic, and process shutdown sequences. Terminal block assemblies and field wiring modules compatible with the Series 90-30 platform simplify installation and reduce wiring errors in dense control cabinet configurations.

Application in Critical Infrastructure

In oil and gas upstream and midstream operations, the IC694MDL645 is used to monitor valve position feedback, pressure switch states, and flow meter pulse inputs across wellhead control panels and pipeline SCADA nodes. Its optical isolation and EMI immunity make it suitable for installation in areas where high-voltage switching equipment and long cable runs introduce significant electrical noise.

In underground and surface mining, the module monitors conveyor belt safety switches, level sensors in ore hoppers, and motor protection relay contacts. The ability to operate across a wide temperature range and withstand mechanical vibration from heavy machinery ensures continuous operation without nuisance faults or unplanned shutdowns.

In power generation and electrical utilities, the IC694MDL645 interfaces with generator protection relays, circuit breaker auxiliary contacts, and transformer monitoring systems. Its reliable input scanning supports the fast response times required for protective relay coordination and load-shedding automation.

In water and wastewater treatment, the module reads pump run/fail status, valve open/close confirmation, and level switch inputs across lift stations and treatment process trains. Its resistance to humidity and condensation makes it well-suited for wet process environments where control panels are exposed to washdown and high ambient moisture.

In metallurgy and steel production, the IC694MDL645 operates in the presence of intense electromagnetic fields generated by arc furnaces, induction heaters, and large DC drives. Its robust isolation architecture prevents false input readings that could trigger unsafe machine states or interrupt continuous casting operations.

Security & Quality FAQ

Q1: Does the IC694MDL645 come with a warranty?
Yes. Every IC694MDL645 unit supplied by TOPNLMS is covered by a 12-month quality warranty from the date of shipment. If the module fails under normal operating conditions within the warranty period, we will provide a replacement or full refund. Our warranty reflects our confidence in the quality of every unit we ship.

Q2: How is the module tested before shipment?
All IC694MDL645 modules undergo functional verification testing prior to dispatch. This includes power-on self-test validation, input channel continuity checks, and isolation integrity verification. Modules that do not pass our quality inspection are not shipped. A test report is available upon request for critical procurement applications.

Q3: Is the IC694MDL645 compatible with my existing Series 90-30 system?
Yes. The IC694MDL645 is fully compatible with all GE Series 90-30 baseplates and CPU modules, including the IC694CPU310, IC694CPU323, IC694CPU340, and IC694CPU360. It installs directly into any available I/O slot on IC694CHS392 or IC694CHS398 baseplates without requiring firmware updates or hardware modifications. If you are unsure about compatibility with your specific system configuration, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat procurement of this module?
Yes. TOPNLMS maintains stock of the IC694MDL645 and other Series 90-30 components to support ongoing maintenance, spare parts programs, and emergency replacement requirements. We understand that industrial facilities often require rapid turnaround for critical spare parts, and we are equipped to process urgent orders with expedited shipping. For volume pricing, blanket purchase orders, or long-term supply agreements, please contact our sales team directly.
