GE IC694MDL350 Replacement/Upgrade Solution for Series 90-30

Product Overview

GE IC694MDL350 Replacement/Upgrade Solution for Series 90-30: Smooth Transition to Modern Control

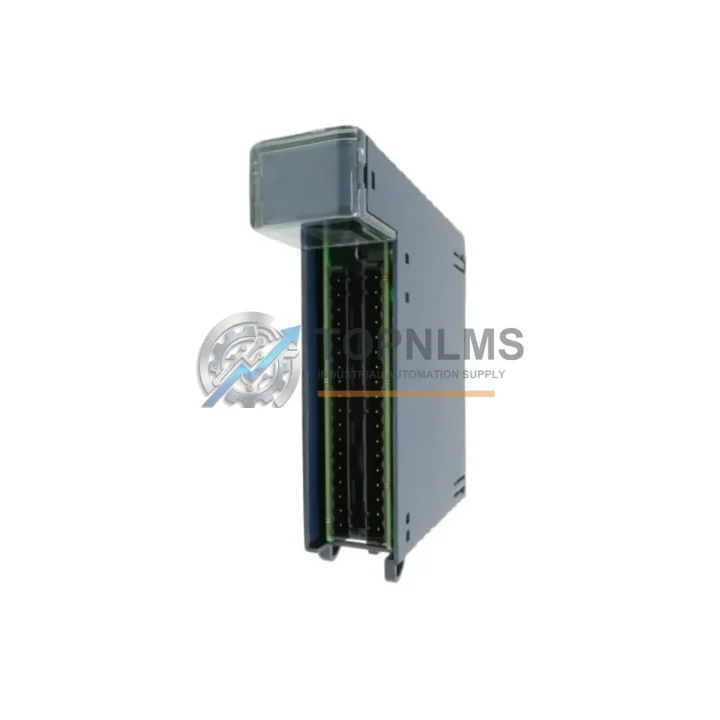

The GE IC694MDL350 is a 16-point 120/240VAC discrete output module designed for the GE Series 90-30 PLC platform. As aging Series 90-30 systems approach end-of-life and original IC694MDL350 units become increasingly difficult to source through standard distribution channels, plant engineers and maintenance teams face mounting pressure to secure reliable replacements that preserve existing wiring infrastructure, rack geometry, and ladder logic programs without triggering a full control system overhaul.

TOPNLMS supplies tested, fully functional IC694MDL350 modules sourced from verified industrial channels. Each unit undergoes pre-shipment functional verification to confirm output switching performance across all 16 channels, inrush current handling, and backplane communication integrity with the IC694CHS392 or IC694CHS398 rack. Whether you are replacing a failed module on an active production line or building a strategic spare-parts inventory for a multi-site Series 90-30 installation, our stock is ready for immediate dispatch from Xiamen with global logistics coverage.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC694MDL350 migration rarely involves a single module swap. In practice, upgrading or replacing an AC output module within a Series 90-30 system requires careful coordination across the entire control cabinet. When the IC694MDL350 is installed alongside an IC694MDL654 (32-point 24VDC input module), engineers must verify that the shared rack power budget — typically managed by the IC694PWR321 or IC694PWR331 power supply module — remains within specification after adding the AC output load. The IC694PWR321 is a common companion unit in 5-slot rack configurations and should be inspected for capacitor aging during any planned maintenance window.

For systems that rely on the IC694ALG220 or IC694ALG221 analog input modules to feed process variables into the same CPU — typically an IC694CPU364 or IC694CPU374 — the output module replacement should be coordinated with a full I/O map review in Proficy Machine Edition to confirm that reference addresses remain consistent after the slot reassignment. If the rack also houses an IC694CMM321 communications module for Ethernet or serial connectivity to a SCADA host, the module’s configuration should be backed up before any physical intervention to avoid losing network parameters.

In retrofit projects where the Series 90-30 rack is being migrated toward a PACSystems RX3i platform, the IC694MDL350 can serve as a transitional output module while the CPU and communications infrastructure is upgraded incrementally. During this phase, the IC695CHS012 RX3i rack may coexist in the same control cabinet, and signal wiring from the IC694MDL350’s removable terminal block can often be re-terminated directly to the new rack’s I/O modules without re-pulling field cables — a significant advantage in retrofit projects where conduit access is restricted. An IC693ACC300 or equivalent wiring arm accessory simplifies terminal block management during the transition.

For applications where the IC694MDL350 drives motor starters, solenoid valves, or lighting contactors, a signal isolator or surge suppressor fitted at the field terminal is recommended to protect the triac outputs from inductive kickback — particularly in older installations where load-side suppression may not have been part of the original design. This small addition can meaningfully extend the service life of the replacement module in high-cycle applications.

Retrofit Guidance FAQ

Q: Can I replace a failed IC694MDL350 without modifying my ladder logic program?
A: Yes. The IC694MDL350 is a direct slot-for-slot replacement within any Series 90-30 rack. The CPU recognizes the module by its backplane slot address, not by a hardware serial number. Provided the replacement unit is installed in the same slot, no program changes are required in Proficy Machine Edition or Logicmaster 90.

Q: Is the field wiring connector compatible between old and new units?
A: The IC694MDL350 uses a removable 40-pin terminal block. If the original terminal block is undamaged, it can be unplugged from the failed module and plugged directly into the replacement — preserving all field wiring without re-termination. This is one of the key advantages of the Series 90-30 modular wiring architecture.

Q: What communication protocol does the IC694MDL350 use?
A: The module communicates exclusively over the Series 90-30 backplane I/O bus. There is no external fieldbus or Ethernet interface on this module. PROFIBUS, Modbus, or Ethernet/IP connectivity in the same rack is handled by dedicated communications modules such as the IC694CMM321, and the output module replacement has no impact on those configurations.

Q: Will the IC694MDL350 fit in both 5-slot and 10-slot Series 90-30 racks?
A: Yes. The module is mechanically and electrically compatible with all standard Series 90-30 rack sizes, including the IC694CHS392 (5-slot) and IC694CHS398 (10-slot). It occupies a single slot and draws power from the rack backplane via the IC694PWR321 or IC694PWR331 power supply.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After seating the module and restoring power, use Proficy Machine Edition’s online monitoring mode to force individual output bits and confirm field-side voltage switching with a multimeter or indicator lamp. All 16 output channels should be verified before returning the system to automatic operation. TOPNLMS recommends a channel-by-channel functional check as part of the commissioning procedure.

Q: Can this module be used in a PACSystems RX3i rack during a phased migration?
A: No. The IC694MDL350 is electrically and mechanically specific to the Series 90-30 backplane. It is not compatible with the IC695CHS012 RX3i rack. However, it can continue to operate in its original Series 90-30 rack while RX3i modules are introduced in a parallel rack within the same control cabinet, allowing a staged migration without a full production shutdown.

Warranty Assurance

Every IC694MDL350 unit shipped by TOPNLMS is covered by a 12-month warranty against functional defects, calculated from the date of shipment. Prior to dispatch, each module undergoes a pre-shipment inspection that includes backplane connector integrity check, output channel switching verification across all 16 points, and visual inspection for physical damage or counterfeit indicators.

If a unit exhibits a functional defect within the warranty period under normal operating conditions, TOPNLMS will arrange a replacement dispatch or issue a credit at our discretion. Warranty claims are processed within 3 business days of receiving the returned unit and a completed fault description. Units damaged by incorrect installation, overvoltage, or field wiring faults are not covered under the standard warranty but may be eligible for a discounted exchange.

For procurement teams managing multi-site Series 90-30 installations, TOPNLMS offers batch inspection and serialized test records on request, supporting your incoming quality control process. Stock availability is confirmed at time of order, and lead times for in-stock units are typically 3–7 business days to major international destinations via DHL, FedEx, or UPS Express.

To place an order, request a test report, or discuss volume pricing for spare-parts programs, contact our technical sales team directly.
