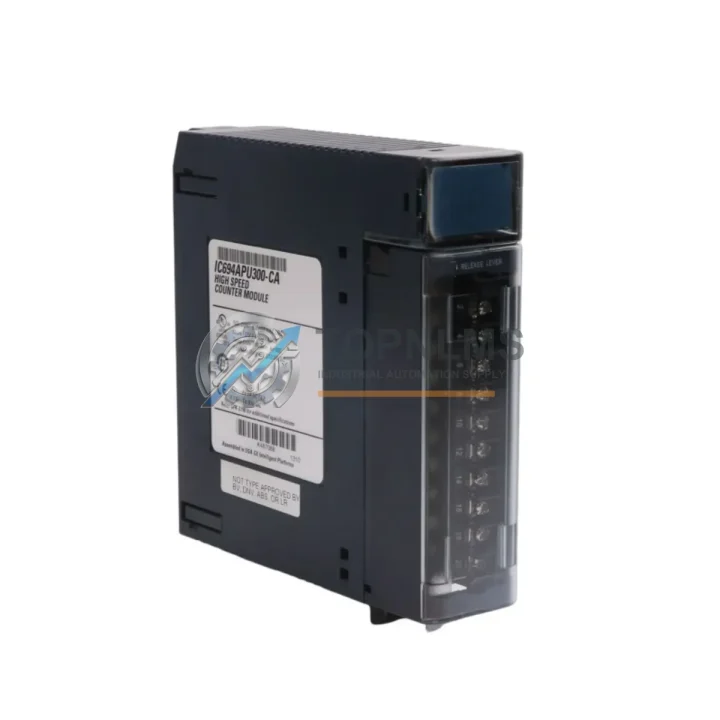

GE IC694APU300 Ruggedized High-Speed Counter Module

Product Overview

GE IC694APU300 Ruggedized High-Speed Counter Module: Industrial Resilience for Harsh Environments

The GE IC694APU300 is a high-speed counter and arithmetic processing unit (APU) module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to withstand the rigors of continuous production environments, this module delivers deterministic pulse counting, high-frequency input processing, and arithmetic computation with the reliability demanded by oil & gas, mining, power generation, water treatment, metallurgy, and heavy manufacturing facilities.

Built to GE Fanuc’s industrial-grade standards, the IC694APU300 operates reliably across wide temperature ranges, resists electromagnetic interference (EMI), and maintains signal integrity in high-vibration, high-humidity, and dust-laden environments. Its ruggedized backplane interface ensures stable communication within the Series 90-30 rack even under sustained mechanical stress — a critical requirement for rotating machinery monitoring, conveyor speed control, and encoder feedback applications on the plant floor.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC694APU300 is rarely deployed in isolation. In a fully integrated Series 90-30 control system, it works in concert with a range of complementary modules to deliver complete machine safety and process reliability. The IC693CPU374 or IC694CPU310 central processing units serve as the system brain, executing ladder logic and coordinating data exchange with the APU module over the backplane. Discrete I/O modules such as the IC694MDL340 (24 VDC input) and IC694MDL754 (relay output) handle field-level signal conditioning, while the IC694ALG220 analog input module provides process variable feedback from temperature, pressure, and flow transmitters.

For applications requiring network connectivity, the IC694CMM321 Ethernet communications module enables Modbus TCP and SRTP protocol integration, allowing the Series 90-30 rack to communicate with SCADA systems, HMIs, and distributed control systems (DCS) over plant-wide Ethernet infrastructure. In safety-critical zones, the IC694APU300 is often paired with dedicated safety relay modules and emergency stop circuits to ensure SIL-compliant shutdown sequences. Industrial power supply units such as the IC693PWR321 or IC694PWR330 provide stable, filtered DC power to the rack, protecting all installed modules — including the APU — from voltage transients and power quality disturbances common in heavy industrial environments.

Terminal block assemblies and shielded I/O cables further protect signal integrity at the field wiring level, while surge protection devices installed at the control cabinet entry point guard against lightning-induced transients and switching surges. Together, these components form a layered protection architecture that maximizes uptime and minimizes unplanned maintenance interventions on the production line.

Application in Critical Infrastructure

The GE IC694APU300 has established a proven track record across the world’s most demanding industrial sectors. In oil & gas upstream and midstream operations, it monitors pump stroke counters, pipeline pig passage detectors, and wellhead flow meters — applications where missed counts or processing delays translate directly into safety incidents or regulatory non-compliance. Its EMI resistance is particularly valuable in environments where variable frequency drives (VFDs), high-voltage switchgear, and radio communications equipment generate significant electromagnetic noise.

In mining and mineral processing, the IC694APU300 tracks conveyor belt speed, crusher rotation, and ore feed rates in environments characterized by extreme dust loading, mechanical vibration, and wide ambient temperature swings. The module’s sealed backplane connector and conformal-coated PCB (where applicable) provide additional protection against conductive dust ingress that could otherwise cause insulation breakdown or short circuits.

Within power generation and electrical utilities, the module supports turbine speed monitoring, generator synchronization feedback, and auxiliary equipment control — functions where microsecond-level timing accuracy is non-negotiable. Water and wastewater treatment plants rely on the IC694APU300 for flow totalizing, pump cycle counting, and chemical dosing batch control, leveraging its arithmetic processing capability to compute running totals and trigger setpoint-based outputs without burdening the main CPU.

In metallurgy and steel production, continuous casting lines and rolling mills use the module for precise roll speed feedback and tension control, where high-frequency encoder signals must be processed in real time to maintain product dimensional tolerances. The module’s ability to handle quadrature encoder inputs at up to 80 kHz makes it well-suited to these high-speed motion control applications.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All IC694APU300 units supplied by TOPNLMS carry a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. If a module fails within the warranty period, we provide a replacement unit or full refund after fault verification. Warranty claims are processed via email at [email protected] with a fault description and order reference.

Q2: How is each unit tested before shipment?
Every IC694APU300 module undergoes pre-shipment functional verification including power-on self-test (POST) confirmation, backplane communication check, and counter channel input response testing. Units that fail any test stage are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the IC694APU300 compatible with both IC693 and IC694 Series 90-30 racks?
Yes. The IC694APU300 is backward-compatible with IC693-series racks and fully native to IC694-series racks. It occupies a single slot in any standard Series 90-30 5-slot, 10-slot, or expansion rack. No firmware modification is required for installation in either rack generation, making it a direct drop-in replacement for aging APU modules in legacy systems.

Q4: Can TOPNLMS support long-term supply continuity for maintenance and spare parts programs?
Yes. TOPNLMS maintains standing inventory of GE Series 90-30 modules including the IC694APU300 and related I/O, CPU, power supply, and communications modules. We support MRO (maintenance, repair, and operations) procurement programs with scheduled delivery, reserved stock agreements, and technical consultation. Contact us at +86 18359293191 or [email protected] to discuss your spare parts strategy.
