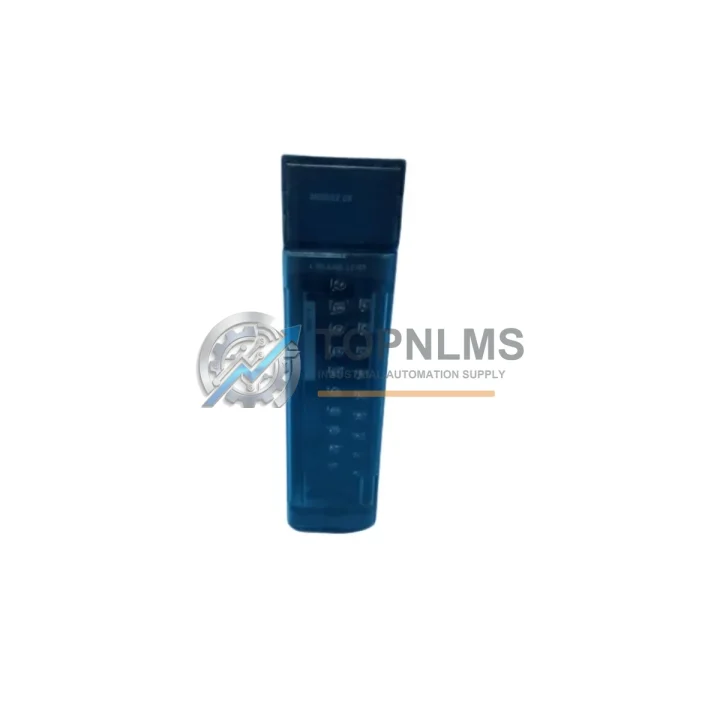

GE IC694ALG391A Ruggedized Analog Output Module for Harsh Environments

Product Overview

GE IC694ALG391A Ruggedized Analog Output Module for Harsh Environments

The GE IC694ALG391A is an 8-channel analog output module engineered for the GE PACSystems RX3i platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to deliver precise, stable analog signal output in environments characterized by extreme temperature swings, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, the IC694ALG391A is a cornerstone component for engineers who cannot afford signal drift or module failure in continuous production operations.

Each of the eight output channels provides individually configurable current or voltage output (0–20 mA, 4–20 mA, 0–10 VDC, ±10 VDC), enabling fine-grained control of field devices such as variable frequency drives, proportional control valves, electro-pneumatic positioners, and analog-input safety instrumented systems. The module’s 13-bit resolution ensures the signal fidelity required for closed-loop process control in applications where even minor output deviation can trigger safety shutdowns or product quality failures.

Built on GE’s ruggedized RX3i backplane architecture, the IC694ALG391A operates reliably across a wide industrial temperature range and is designed to withstand the vibration profiles common in rotating machinery environments — compressor stations, pump skids, and milling lines. Its conformal-coated PCB provides additional protection against condensation and corrosive atmospheres found in coastal chemical plants, offshore platforms, and underground mining operations.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC694ALG391A does not operate in isolation — it is one node in a tightly integrated control architecture. In a typical PACSystems RX3i control cabinet, it works alongside the IC695CPE305 CPU module, which handles ladder logic execution and inter-module communication via the high-speed RX3i backplane. Discrete I/O is managed by modules such as the IC694MDL754 32-point DC output module and the IC694MDL655 32-point DC input module, which together provide the digital signal layer that complements the IC694ALG391A’s analog output capability.

For applications requiring analog input — closing the feedback loop on process variables like temperature, pressure, or flow — the IC694ALG221 8-channel analog input module is the natural companion, enabling full PID control loops within the same RX3i rack. Power integrity is maintained by the IC695PSD040 power supply module, which delivers regulated 3.3 V and 5 V rails to all backplane-mounted modules, including the IC694ALG391A, even under fluctuating plant power conditions.

In safety-critical zones, the IC694ALG391A is often deployed alongside GE Safety PLC modules and IC695ETM001 Ethernet communication modules that support SRTP and Modbus TCP protocols, enabling real-time supervisory monitoring from SCADA systems without interrupting field-level output. For installations requiring serial fieldbus connectivity, the IC694BEM331 Genius Bus Controller extends the RX3i’s reach to remote I/O drops across large plant footprints — a common requirement in water treatment facilities and power substations.

Terminal connectivity is handled through IC694TBSx series terminal block assemblies, which provide secure, vibration-resistant field wiring termination for the IC694ALG391A’s output channels. In high-density control cabinets, these terminal blocks are paired with IC694ACC300 series I/O expansion accessories to maintain organized, maintainable wiring even in retrofit installations where panel space is constrained.

Application in Critical Infrastructure

In oil and gas upstream operations, the IC694ALG391A is deployed in wellhead control panels and compressor station automation systems, where it drives 4–20 mA signals to electro-hydraulic actuators controlling choke valves and separator pressure regulators. The module’s EMI hardening is essential in these environments, where high-power VFDs and motor starters generate significant conducted and radiated interference on shared power buses.

In coal and metal mining, the IC694ALG391A controls conveyor belt speed references via VFD analog inputs and manages slurry pump flow rates in mineral processing circuits. Its ability to maintain output accuracy under continuous mechanical vibration — from blasting, crusher operation, and heavy vehicle traffic — makes it a preferred choice over less ruggedized alternatives.

In municipal and industrial water treatment, the module drives dosing pump speed references and valve positioner signals in chlorination, coagulation, and filtration control loops. Continuous 24/7 operation is the norm in these facilities, and the IC694ALG391A’s proven mean time between failures (MTBF) in similar deployments supports the long maintenance intervals required by utility operators.

In power generation and grid substations, the IC694ALG391A is used in turbine governor control systems and transformer cooling fan speed regulation, where precise analog output is critical to maintaining grid frequency stability. Its compatibility with the broader PACSystems RX3i ecosystem — including redundant CPU configurations — supports the high-availability architectures mandated by grid operators.

In metallurgical and steel production environments, the module controls furnace temperature setpoints via thyristor firing angle references and manages rolling mill tension control loops. The combination of high-resolution output and robust thermal performance makes it suitable for the extreme ambient conditions found near induction furnaces and continuous casting lines.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the failure mode. Our technical team will provide a return authorization and expedite the replacement to minimize your downtime.

Q2: How is each IC694ALG391A unit tested before shipment?
Every IC694ALG391A unit in our inventory undergoes pre-shipment functional verification, including power-on self-test, channel output accuracy checks across all configured signal ranges, and backplane communication integrity testing. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for customers with traceability requirements.

Q3: Is the IC694ALG391A compatible with my existing PACSystems RX3i configuration?
The IC694ALG391A is compatible with all standard GE PACSystems RX3i universal backplanes (IC694CHS series) and is supported by Proficy Machine Edition (PME) programming software. It is backward-compatible with existing RX3i CPU firmware versions and does not require hardware modification to the backplane or power supply. If you have a specific CPU model or firmware version to verify, contact our technical team before ordering.

Q4: Can TOPNLMS support long-term or repeat supply of the IC694ALG391A for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of the IC694ALG391A and related PACSystems RX3i modules to support planned maintenance, emergency spare parts programs, and capital project procurement. We can provide volume pricing, reserved stock agreements, and consolidated shipments for customers managing multi-site maintenance inventories. Contact us to discuss a supply arrangement tailored to your operational schedule.
