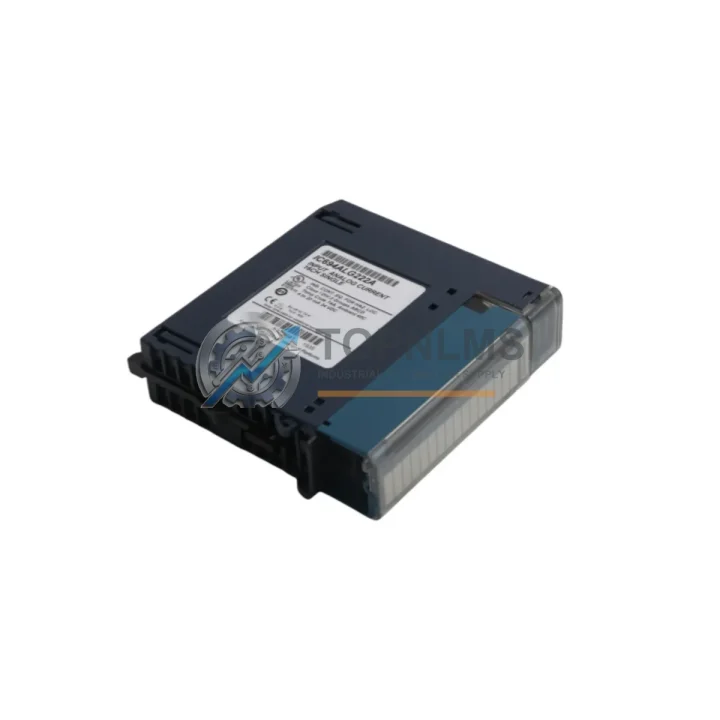

GE IC694ALG222 Replacement/Upgrade Solution for RX3i

Product Overview

GE IC694ALG222 Replacement/Upgrade Solution for PACSystems RX3i: Smooth Transition from Legacy Analog Input Systems

The GE IC694ALG222 is a 16-channel analog input module designed for the PACSystems RX3i platform — one of GE Automation & Controls’ most widely deployed control architectures in process manufacturing, utilities, and discrete automation. As legacy Series 90-30 and early RX3i installations reach end-of-life, plant engineers and procurement teams are actively seeking verified replacement and upgrade paths that minimize downtime, preserve existing wiring infrastructure, and maintain compatibility with established control programs.

This listing provides a fully tested, in-stock IC694ALG222 module ready for direct drop-in replacement or structured migration from discontinued analog input hardware. Whether you are retiring a GE IC693ALG221 from a Series 90-30 rack, consolidating I/O from multiple legacy chassis, or upgrading a distributed control node to the RX3i backplane, the IC694ALG222 delivers the channel density, resolution, and signal range flexibility required for demanding industrial environments.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to the IC694ALG222 rarely involves a single module swap. In practice, upgrading from a Series 90-30 or early RX3i analog input configuration requires coordinated changes across the control system architecture. The IC694ALG222 installs into the IC694CHS392 or IC694CHS398 universal backplane, which also accommodates the IC694CPU310 or IC694CPU315 controller — allowing engineers to consolidate legacy CPU and I/O hardware into a single, modern RX3i chassis without redesigning the control cabinet layout.

Field wiring from decommissioned IC693ALG221 or IC693ALG222 modules can typically be re-terminated to the IC694ALG222 using the same screw-terminal field wiring blocks, significantly reducing rewiring labor. Where signal conditioning is required — particularly when migrating thermocouple or RTD inputs from older analog modules — an inline signal isolator or signal converter may be inserted between the field device and the new module to ensure input range compatibility.

On the communications side, the IC694ALG222 operates over the RX3i high-speed backplane bus and integrates natively with the IC695ETM001 Ethernet module for Profinet or Modbus TCP supervisory connectivity. Plants previously relying on serial communications via IC693CMM311 or IC693CMM302 communication modules can transition to Ethernet-based SCADA integration without modifying the field instrument network.

Power supply compatibility is a critical checkpoint in any RX3i migration. The IC694PWR330 and IC694PWR331 power supply modules provide the regulated backplane voltage required by the IC694ALG222 and all co-installed I/O modules. If the existing cabinet uses a legacy 90-30 power supply, replacement with an RX3i-compatible unit is required before commissioning the new analog input module.

For digital I/O consolidation during the same migration window, the IC694MDL340 discrete output module and IC694MDL655 discrete input module are commonly installed alongside the IC694ALG222 in the same RX3i chassis, enabling a complete I/O modernization in a single planned outage. HMI connectivity is typically maintained through the existing IC695ETM001 Ethernet port, preserving SCADA tag mappings and operator screen layouts with minimal reconfiguration.

Programming migration from the legacy Series 90-30 project to the RX3i platform is performed using Proficy Machine Edition, which supports project import and hardware configuration conversion. The analog input channel scaling parameters, alarm limits, and filter settings configured for the IC693ALG221 can be mapped directly to equivalent IC694ALG222 configuration registers, reducing software re-engineering time.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing IC693ALG221 with IC694ALG222?
A: In most cases, yes. The IC694ALG222 uses the same screw-terminal wiring convention as the 90-30 analog modules. Field cables terminated to voltage or current input channels can be re-terminated directly to the IC694ALG222 terminal block. Verify signal range configuration in Proficy Machine Edition to match the original channel settings.

Q: Do I need to modify my PLC program after installing the IC694ALG222?
A: If migrating from a Series 90-30 project, a hardware configuration update in Proficy Machine Edition is required to reflect the new RX3i backplane and module addresses. Analog input reference addresses (%AI) are preserved in the program logic; only the hardware configuration tree requires updating. No ladder logic rewrites are typically necessary for direct channel-for-channel replacements.

Q: Is the IC694ALG222 compatible with Modbus TCP SCADA systems?
A: Yes. When paired with the IC695ETM001 Ethernet module, the RX3i controller exposes analog input data over Modbus TCP, EGD (Ethernet Global Data), or SRTP protocols. Existing SCADA register mappings can be preserved by maintaining the same %AI reference addresses in the updated hardware configuration.

Q: How much physical space does the IC694ALG222 require in the control cabinet?
A: The IC694ALG222 occupies one standard RX3i backplane slot. The IC694CHS392 provides 12 I/O slots; the IC694CHS398 provides 18 slots. If the existing cabinet houses a 90-30 10-slot rack, the RX3i universal backplane has a comparable footprint and can typically be mounted on the same DIN rail or panel surface without cabinet modification.

Q: What is the recommended commissioning procedure after installation?
A: After physical installation and wiring, power up the RX3i chassis and verify module status LEDs. Use Proficy Machine Edition to download the updated hardware configuration to the IC694CPU. Perform a channel-by-channel signal verification using a calibrated signal source at each analog input terminal. Confirm %AI register values in the PLC data table match expected engineering unit readings before returning the system to automatic control.

Q: Can the IC694ALG222 replace modules from other brands in a mixed-vendor cabinet?
A: The IC694ALG222 is designed exclusively for the GE PACSystems RX3i backplane and is not directly interchangeable with Siemens S7-300, Allen-Bradley ControlLogix, or Schneider Quantum analog input modules. However, in mixed-vendor cabinets where the RX3i controller is the primary PLC, the IC694ALG222 can be added to the RX3i rack to consolidate analog inputs previously handled by standalone signal conditioners or third-party I/O modules communicating over Modbus RTU.

Warranty Assurance

Every IC694ALG222 module shipped from TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes a functional pre-shipment test verifying backplane communication, channel signal acquisition across all 16 inputs, and power consumption within GE specification limits. Modules that do not pass functional verification are not listed for sale.

In the event of a confirmed module defect within the warranty period, TOPNLMS provides a replacement unit or full refund at the buyer’s discretion. Our after-sales response target is within 24 business hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize control system downtime.

For procurement teams requiring documentation, we provide a test report, packing list, and commercial invoice with each shipment. Export compliance documentation is available upon request for international orders. Bulk orders of 3 or more units are eligible for pre-negotiated pricing — contact our sales team directly for a formal quotation.

Stock is maintained on-hand for immediate dispatch. Standard lead time is 1–3 business days for in-stock units. Express international shipping options are available to minimize plant downtime for urgent replacement requirements.
