GE IC694ALG221B Replacement for Series 90-30 & RX3i: Seamless Migration & Upgrade Solution

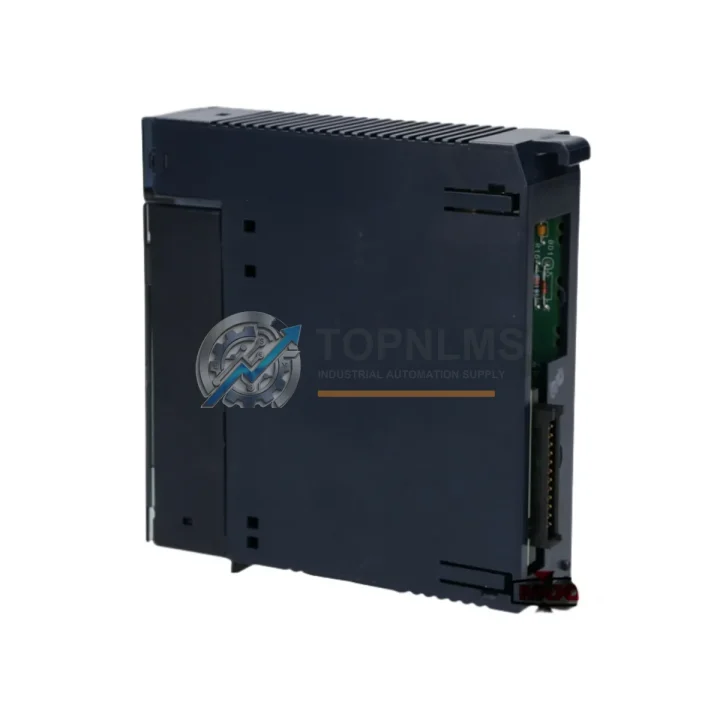

The GE Fanuc IC694ALG221B is a 16-channel analog input module originally designed for the Series 90-30 PLC platform, and it remains fully compatible with RX3i systems via the IC694 form-factor backplane. As GE Fanuc (now Emerson Automation Solutions) progressively phases out legacy Series 90-30 hardware, many facilities running IC694-series racks face increasing pressure to source reliable replacement modules before production downtime becomes unavoidable. TOPNLMS stocks verified IC694ALG221B units to support your migration, emergency replacement, or long-term spare-parts strategy — with same-week dispatch from Xiamen and a 12-month warranty on every unit.

Whether you are replacing a failed module in an existing Series 90-30 rack, consolidating spare inventory ahead of a planned RX3i migration, or bridging operations while a full system upgrade is budgeted, the IC694ALG221B slots directly into any IC694-compatible backplane without rewiring field terminals or modifying ladder logic. The module accepts 16 single-ended or 8 differential analog input channels, supports voltage and current input ranges configurable via software, and communicates over the Series 90-30 backplane bus — making it a true drop-in replacement for any IC694ALG221 variant in service.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC694ALG221B replacement or Series 90-30 migration rarely involves a single module in isolation. In most retrofit projects, the analog input module works alongside a broader set of IC694-series components that must be evaluated for compatibility or replaced in parallel. The IC694MDL655 discrete output module and IC694MDL645 discrete input module are frequently co-located in the same rack and should be inspected for firmware revision alignment when the analog module is swapped. If your rack uses an IC694PWR321 or IC694PWR330 power supply, verify that the total backplane current budget accommodates the IC694ALG221B alongside any newly added modules — the power supply is often the first bottleneck discovered during a multi-module upgrade.

For facilities migrating from Series 90-30 to the RX3i platform, the IC695CHS012 or IC695CHS016 universal backplane accepts IC694-series modules in mixed configurations, allowing a phased migration where the IC694ALG221B continues to operate alongside newer IC695 CPU modules such as the IC695CPE330 or IC695CPE400. This hybrid approach significantly reduces capital expenditure and downtime compared to a full cutover. Communication continuity is maintained through the IC695ETM001 Ethernet module, which supports SRTP and Modbus TCP alongside legacy SNP programming connections — ensuring your existing SCADA or HMI integration remains uninterrupted during the transition.

Field wiring is preserved entirely: the IC694ALG221B uses the same 40-pin removable terminal block as its predecessors, so analog signal cables from transmitters, pressure sensors, flow meters, and temperature transducers connect without modification. If signal isolation is required between field instruments and the PLC backplane — particularly in environments with high common-mode noise or long cable runs — an inline signal isolator or barrier module can be inserted without altering the IC694ALG221B configuration. For programming and configuration, the module is fully supported by Proficy Machine Edition (PME) Logic Developer, and existing Variable Declaration Tables and I/O configuration blocks transfer without modification when the CPU firmware is current.

Retrofit Guidance FAQ

Q: Can I install the IC694ALG221B without rewiring field terminals?
Yes. The module uses the same 40-pin removable terminal block as all IC694ALG221 variants. Remove the terminal block from the failed module, inspect for damage, and transfer it directly to the replacement unit. No field wiring changes are required.

Q: Will my existing ladder logic and I/O configuration work without modification?
In virtually all cases, yes. The IC694ALG221B is register-compatible with earlier IC694ALG221 revisions. Analog reference addresses (%AI) assigned in your CPU configuration remain valid. Confirm the module slot assignment in your hardware configuration file matches the physical slot, then download and verify.

Q: Is the IC694ALG221B compatible with RX3i CPUs?
Yes. When installed in an IC694-compatible backplane (IC694CHS392, IC694CHS016, or the universal IC695CHS012), the IC694ALG221B operates normally under RX3i CPU control. The RX3i CPU recognizes IC694-series analog modules natively through the mixed-backplane compatibility layer.

Q: What communication protocols does the Series 90-30 system support?
The Series 90-30 platform supports SNP (Serial), SRTP (Ethernet), Modbus RTU/TCP, and Genius Bus depending on the communication modules installed. The IC694ALG221B itself communicates over the internal backplane bus; external protocol support is determined by the CPU and communication modules (e.g., IC694CMM321 for serial, IC695ETM001 for Ethernet).

Q: How much physical space does the module require in the control cabinet?
The IC694ALG221B occupies a single IC694 backplane slot. Standard IC694 racks (IC694CHS392 — 9 slots, IC694CHS016 — 16 slots) accommodate the module without any cabinet modification. Ensure adequate ventilation clearance above and below the rack per GE installation guidelines.

Q: What should I check before powering up after replacement?
Verify the terminal block is fully seated, confirm the module is firmly latched into the backplane slot, check that the IC694PWR321 or IC694PWR330 power supply LED indicates normal status, then power up and observe the module’s OK LED. Use PME Logic Developer to force an I/O scan and validate analog readings against known field signal values before returning the system to automatic operation.

Warranty Assurance

Every IC694ALG221B unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each module undergoes a functional bench test including backplane communication verification, channel-by-channel analog input validation across all configured ranges, and visual inspection for connector integrity and component condition. Units that do not pass all test criteria are quarantined and never shipped.

If a warranty claim arises, TOPNLMS provides a replacement unit or full refund — your choice — with no requirement to return the defective module for pre-authorization. Our technical support team responds to warranty and application inquiries within one business day. For urgent production-down situations, expedited dispatch is available with same-day processing for orders confirmed before 14:00 CST.

Shipping is available worldwide via DHL Express, FedEx International Priority, and UF Express for domestic China destinations. Export documentation, commercial invoices, and packing lists are prepared to customs standards for smooth clearance. Lead time for in-stock units is 1–3 business days to most destinations.

For volume orders, long-term supply agreements, or project-based procurement of Series 90-30 and RX3i spare parts, contact our industrial automation team directly to discuss pricing, stocking arrangements, and technical pre-sales support.
