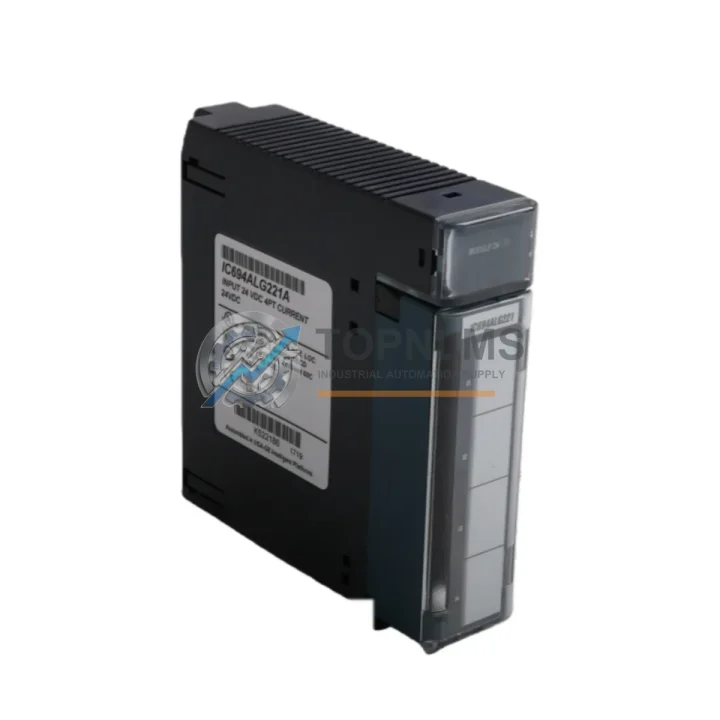

GE IC694ALG221 Ruggedized Analog Input Module for Harsh Environments

Product Overview

GE IC694ALG221 Ruggedized Analog Input Module: Industrial Resilience for Harsh Environments

The GE IC694ALG221 is a 16-channel analog input module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry. Designed to deliver precise, noise-immune analog signal acquisition in environments where conventional electronics fail, the IC694ALG221 is a cornerstone component for engineers and procurement teams managing critical automation infrastructure across oil & gas, mining, power generation, water treatment, metallurgy, and continuous manufacturing.

At TOPNLMS, every IC694ALG221 unit is sourced from verified supply channels, individually inspected, and shipped with a 12-month quality warranty — giving your maintenance and engineering teams the confidence to deploy with zero compromise on uptime.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC694ALG221 does not operate in isolation — it is a precision instrument within a broader, interdependent control architecture. In a typical Series 90-30 control cabinet, the IC694ALG221 works in concert with the IC694CPU364 or IC694CPU374 central processing units, which execute the ladder logic and function block programs that interpret the analog signals this module delivers. Reliable analog acquisition is only as good as the CPU’s ability to process it in real time, making the pairing of these modules critical for deterministic control loops.

On the power side, the IC694PWR321 power supply module provides the stable, regulated DC bus voltage that the IC694ALG221 and all co-resident modules depend on. In high-vibration environments such as compressor stations or mining conveyors, power supply integrity is the first line of defense against spurious analog readings and module faults. Pairing the IC694ALG221 with a quality power supply is non-negotiable for continuous production lines.

For discrete I/O expansion alongside analog acquisition, the IC694MDL645 32-point DC input module and IC694MDL740 32-point DC output module are commonly co-installed in the same rack, allowing a single Series 90-30 chassis to handle both analog process variables and digital control signals from field devices such as proximity sensors, solenoid valves, and motor starters.

In applications requiring communication with SCADA systems, historians, or distributed control networks, the IC694CMM321 communications module enables Ethernet TCP/IP connectivity, while the IC694CMM302 supports serial Modbus RTU and ASCII protocols — both of which are frequently deployed alongside the IC694ALG221 in legacy DCS migration projects and hybrid PLC-DCS architectures.

Where functional safety is mandated — such as in SIL-rated burner management systems or emergency shutdown panels — the IC694ALG221 is often complemented by dedicated safety relay modules and hardwired interlock circuits. In such configurations, the analog signals from the IC694ALG221 feed into safety-rated logic solvers, ensuring that process exceedances trigger protective actions within the required response time. Terminal block modules and marshalling panels within the control cabinet provide the field wiring interface, with shielded twisted-pair cabling recommended to suppress electromagnetic interference from variable frequency drives (VFDs) and high-current motor circuits operating in the same enclosure.

Application in Critical Infrastructure

The GE IC694ALG221 has earned its place in some of the world’s most demanding industrial environments precisely because it was engineered to perform where failure is not an option.

Oil & Gas Upstream and Midstream: On offshore platforms and onshore wellhead facilities, the IC694ALG221 monitors pressure transmitters, flow meters, and temperature sensors across production headers. Its optical isolation and high common-mode rejection ratio protect signal integrity even when long cable runs pass near high-voltage power distribution equipment. In pipeline SCADA applications, the module’s 16-channel density reduces rack space requirements in remote terminal units (RTUs) housed in weatherproof enclosures.

Mining and Mineral Processing: In underground mining operations and surface concentrators, the IC694ALG221 acquires analog signals from belt scale load cells, slurry density meters, and flotation cell level sensors. The module’s tolerance for wide ambient temperature swings — common in open-pit mining environments — and its resistance to conducted electrical noise from large crusher motors make it a preferred choice for process control engineers specifying replacement parts for aging Series 90-30 systems.

Power Generation and Utilities: In coal-fired, gas turbine, and hydroelectric power plants, the IC694ALG221 interfaces with thermocouple signal conditioners, 4–20 mA transmitters from boiler drum level gauges, and generator excitation feedback loops. Its deterministic scan-cycle behavior, governed by the Series 90-30 CPU, ensures that analog process variables are updated within the control system’s required response window — critical for turbine governor and boiler combustion control applications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities rely on the IC694ALG221 to monitor pH, dissolved oxygen, turbidity, and flow rate signals from field instruments distributed across large treatment plants. The module’s ability to handle both voltage and current inputs without hardware modification simplifies integration with diverse sensor types from multiple instrument vendors.

Metallurgy and Heavy Manufacturing: In steel mills, aluminum smelters, and foundries, the IC694ALG221 operates in control cabinets exposed to radiated heat, airborne metallic dust, and intense electromagnetic fields from arc furnaces and induction heaters. Its robust backplane connector and conformal-coated PCB construction (on applicable variants) provide the physical durability required for long-term deployment in these environments without scheduled preventive replacement.
