GE IC693UDR005FP1 Original Industrial Spare Series 90-30 Compatible

Product Overview

GE IC693UDR005FP1 Original Industrial Spare: Series 90-30 System Stability & Maintenance Value

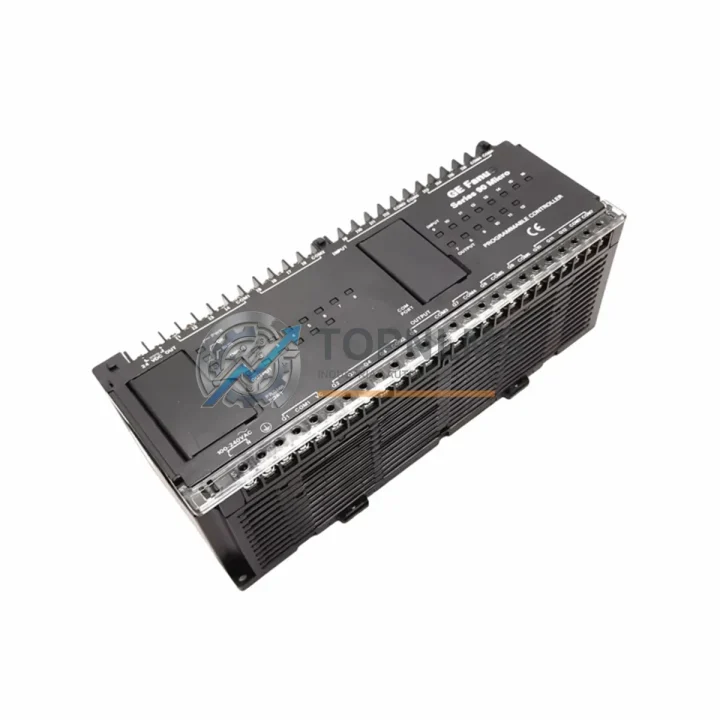

The GE IC693UDR005FP1 is a core Micro PLC unit within the GE Series 90-30 control architecture, integrating CPU processing and relay output capability into a single compact module. For maintenance engineers managing aging automation infrastructure, this module represents one of the most critical spare components to keep on hand. Its relay output design makes it directly applicable to motor starter circuits, solenoid valve control, conveyor interlocks, and discrete output-heavy control panels found across manufacturing, utilities, water treatment, and process industries.

When a Series 90-30 system experiences an unplanned shutdown, the IC693UDR005FP1 is frequently the first module to be evaluated during fault isolation. Having a verified original spare on-site eliminates the procurement lead time that typically extends downtime from hours into days. For facilities operating legacy GE PACSystems or Series 90-30 racks, this module is not merely a replacement part — it is a production continuity asset.

Critical Technical Specs

Preventive Maintenance Strategy

A disciplined preventive maintenance program for any Series 90-30 installation should treat the IC693UDR005FP1 not in isolation, but as part of an interconnected system of components that age and degrade together. During scheduled shutdowns or annual control cabinet inspections, maintenance teams should simultaneously evaluate the condition of the IC693PWR321 or IC693PWR330 power supply modules, as power irregularities are a leading cause of premature CPU and I/O module failure. Voltage ripple or brownout conditions that go undetected will stress relay output contacts and reduce the operational lifespan of the IC693UDR005FP1 itself.

Alongside the power supply, the IC693MDL645 discrete input module and IC693MDL740 transistor output module are common companions in mixed I/O configurations. If the system uses analog process signals, the IC693ALG220 analog input module and IC693ALG390 analog output module should be inspected for calibration drift and connector corrosion — both of which can introduce subtle process deviations that are difficult to trace without a spare on hand for swap-testing.

Communication integrity is equally important. The IC693CMM321 communications module, used for Ethernet or serial network connectivity in many Series 90-30 installations, should be checked for firmware currency and physical connector wear. In facilities where the PLC communicates with SCADA or HMI systems via the IC693CPU374 or similar enhanced CPU modules, a communication fault can mask underlying I/O issues and delay accurate fault diagnosis.

Terminal blocks and field wiring connections within the control cabinet deserve attention during every maintenance cycle. Loose terminals on relay output wiring are a frequent source of intermittent faults that are misattributed to the PLC module itself. Inspecting and re-torquing terminal connections, replacing aged ferrules, and verifying fuse integrity in the IC693ACC300 expansion baseplate circuits are low-cost steps that significantly extend system reliability. Where signal isolation is required between field devices and the PLC, inline signal isolators and surge protection modules should be verified for proper operation.

For facilities managing multiple Series 90-30 racks, maintaining a minimum stock of one IC693UDR005FP1 per production line — alongside a matched set of the most failure-prone I/O modules — is a recognized best practice in industrial spare parts management. The cost of a single unplanned production stoppage typically exceeds the value of a complete spare module kit by an order of magnitude.

Strategic Replacement Solutions

The IC693UDR005FP1 is a direct replacement for earlier IC693UDR005 revisions and is backward-compatible with existing Series 90-30 rack configurations without requiring software or wiring modifications. This makes it an ideal solution for facilities that need to restore system functionality quickly without engaging in a broader control system upgrade project.

For plants operating legacy GE Series 90-30 systems that are no longer supported under active OEM service contracts, sourcing original spare modules from verified industrial distributors is the most cost-effective strategy for extending system life by 5–10 years. Replacing the IC693UDR005FP1 with a verified original unit preserves the existing ladder logic program, I/O mapping, and field wiring — eliminating the engineering hours and validation testing required for a platform migration.

In situations where the original module has suffered relay contact welding, CPU lockup, or power surge damage, a pre-tested replacement unit can be installed and commissioned within a single maintenance window. TOPNLMS performs functional verification on all modules prior to shipment, including output relay continuity testing and power-on self-test confirmation, ensuring the replacement unit arrives ready for immediate installation.
