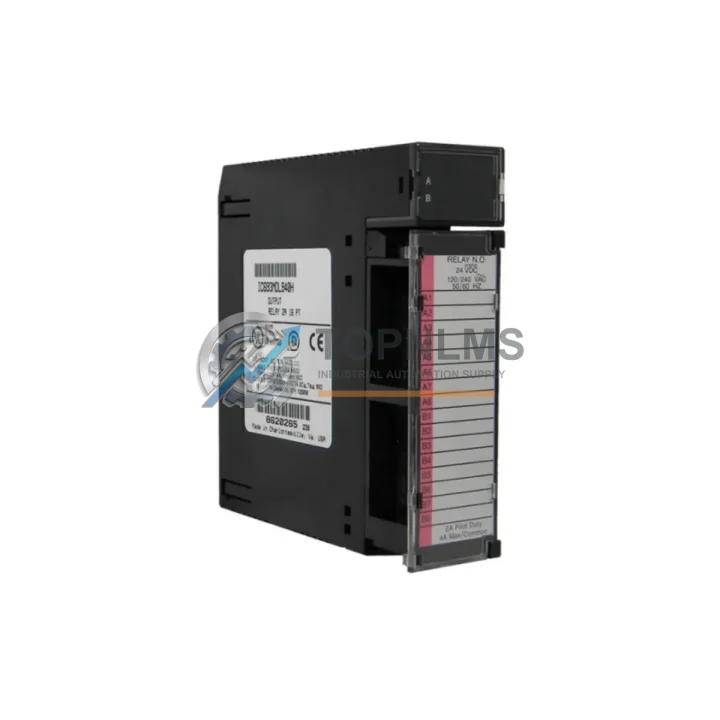

GE IC693MDL940 Ruggedized Relay Output Module for Harsh Environments

Product Overview

GE IC693MDL940 Ruggedized Relay Output Module for Harsh Environments

The GE Fanuc IC693MDL940 is a 16-point relay output module engineered for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to deliver reliable discrete output control under demanding conditions, the IC693MDL940 is a cornerstone component in control systems where uptime is non-negotiable and environmental stress is constant. Whether deployed in a petrochemical processing plant, a coal preparation facility, a municipal water treatment station, or a continuous steel rolling line, this module is built to perform where lesser components fail.

Unlike standard commercial-grade relay modules, the IC693MDL940 is rated for operation across a wide ambient temperature range and is engineered to withstand the vibration, humidity, and electromagnetic interference (EMI) that characterize heavy industrial environments. Its relay contact outputs provide galvanic isolation between the PLC backplane and field devices, protecting the controller from voltage spikes, inductive kickback from motor starters, solenoid valves, and high-current switching loads. This isolation is critical in applications where the control cabinet is located near variable frequency drives (VFDs), large transformer banks, or high-voltage switchgear — all common in power generation and mining operations.

In continuous production environments such as automotive assembly lines, paper mills, and chemical batch reactors, the IC693MDL940 operates as part of a tightly integrated I/O subsystem. It slots directly into the Series 90-30 baseplate alongside analog input modules such as the IC693ALG221, analog output modules like the IC693ALG390, and high-speed counter modules such as the IC693APU300. The module communicates through the Series 90-30 backplane bus, coordinated by CPUs including the IC693CPU374 and IC693CPU364, which manage scan cycles and I/O updates with deterministic timing essential for safety-critical sequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693MDL940 does not operate in isolation — it is one node in a layered protection and control architecture. In a typical Series 90-30 control cabinet, the module works alongside the IC693PWR321 or IC693PWR330 power supply modules, which provide regulated 5 VDC and 24 VDC rails to the backplane. Stable power delivery is the foundation of relay output reliability; voltage sags or transients on the supply rail can cause false relay actuation or premature contact wear. The IC693PWR321 is specifically rated for industrial environments and includes overcurrent protection that safeguards the entire I/O rack.

On the input side, the IC693MDL654 24 VDC discrete input module pairs naturally with the IC693MDL940 to form a complete digital I/O solution for field device monitoring and control. Proximity sensors, limit switches, pressure switches, and emergency stop circuits feed into the input module, while the relay outputs of the IC693MDL940 drive contactors, pilot lights, alarm horns, and motorized valve actuators. For applications requiring analog process control — such as temperature regulation in a furnace or flow control in a chemical dosing system — the IC693ALG221 analog input module and IC693ALG390 analog output module extend the system’s capability without requiring a separate controller.

In safety-instrumented systems (SIS) and functional safety applications, the IC693MDL940 is often deployed in conjunction with dedicated safety relay modules and hardwired interlock circuits. Its relay contacts provide the physical break required by IEC 61511 and IEC 62061 safety standards for emergency shutdown (ESD) loops. The module’s galvanic isolation ensures that a fault on the field side — such as a short circuit in a solenoid coil — does not propagate back to the PLC CPU or corrupt the control program. Communication modules such as the IC693CMM321 (Genius Bus Controller) or IC693CMM311 (Serial Communications Module) are commonly installed in the same rack to enable remote diagnostics and SCADA integration, allowing plant engineers to monitor relay output status from a central control room.

Application in Critical Infrastructure

The IC693MDL940 has a proven track record across the most demanding sectors of critical infrastructure. In oil and gas upstream operations, it controls wellhead safety valves, chemical injection pumps, and flare ignition systems — applications where a missed output signal can trigger a process shutdown or, in the worst case, a safety incident. The module’s relay contacts handle the inductive loads of solenoid-operated valves without the derating concerns associated with transistor output modules, making it the preferred choice for pneumatic and hydraulic actuator control in hazardous area panels (when installed in appropriately rated enclosures).

In coal and metal mining operations, the IC693MDL940 manages conveyor belt starters, ventilation fan contactors, and dewatering pump controls in environments characterized by coal dust, silica particulate, and high ambient humidity. The module’s sealed relay contacts resist contamination that would degrade solid-state output performance over time. In electric power generation — both thermal and hydroelectric — the module is used in turbine auxiliary control panels, cooling water system automation, and transformer protection relay logic, where it must operate continuously for years without scheduled maintenance.

Water and wastewater treatment facilities rely on the IC693MDL940 to control submersible pump starters, chlorination dosing systems, and UV disinfection unit contactors. The corrosive atmosphere of a wastewater plant — with hydrogen sulfide, chlorine vapors, and high humidity — demands the kind of robust relay contact construction that the IC693MDL940 provides. In steel and aluminum smelting operations, the module controls cooling water valves, hydraulic press solenoids, and rolling mill auxiliary drives, operating in ambient temperatures that frequently exceed 45°C and in the presence of intense electromagnetic fields generated by arc furnaces and induction heaters.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions. If the IC693MDL940 fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after technical verification. Claims are initiated by contacting [email protected] with the order number and a description of the fault. Our technical team typically responds within 24 hours and arranges return logistics at no cost to the buyer.

Q2: How is each unit tested before shipment?
Every IC693MDL940 unit undergoes a multi-stage inspection process prior to dispatch. This includes visual inspection for physical damage, relay contact continuity testing across all 16 output points, backplane connector integrity verification, and a functional power-on test using a Series 90-30 test rack. Units that do not pass all test criteria are quarantined and not shipped. A test report is available upon request for customers with strict incoming inspection requirements.

Q3: Is the IC693MDL940 compatible with all Series 90-30 baseplates and CPUs?
Yes. The IC693MDL940 is fully compatible with all standard Series 90-30 baseplates — including the 5-slot IC693CHS391, 10-slot IC693CHS392, and expansion baseplates — and operates with all Series 90-30 CPUs from the IC693CPU311 through the IC693CPU374. It is also compatible with the Series 90-30 Hot Standby CPU redundancy configuration. No firmware updates or hardware modifications are required for installation into an existing Series 90-30 system.

Q4: Can TOPNLMS guarantee long-term supply for ongoing maintenance and spare parts programs?
Yes. TOPNLMS maintains a dedicated inventory of GE Fanuc Series 90-30 modules, including the IC693MDL940, to support long-term spare parts programs for plant maintenance teams. We understand that industrial control systems have operational lifespans of 15–25 years, and that OEM discontinuation of legacy modules creates critical supply gaps. Our sourcing network covers certified distributors, tested surplus channels, and factory-refurbished stock, ensuring that customers can procure replacement units even for end-of-life product lines. Volume pricing and blanket purchase order arrangements are available — contact [email protected] for details.
