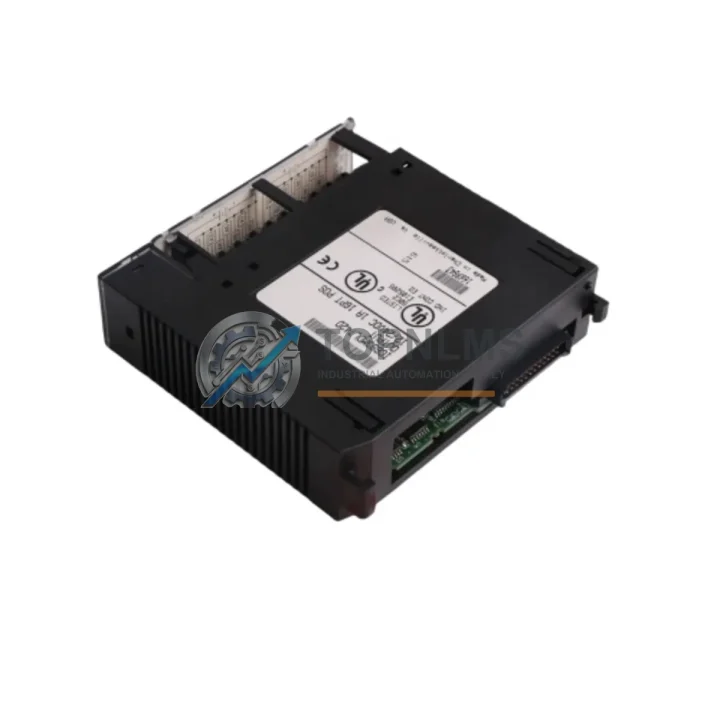

GE IC693MDL742 Ruggedized Relay Output Module for Harsh Environments

Product Overview

GE IC693MDL742 Ruggedized Relay Output Module for Harsh Environments

The GE IC693MDL742 is a 16-Point Relay Output Module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to deliver unwavering switching reliability under the most demanding field conditions, the IC693MDL742 is the preferred discrete output solution for engineers and procurement specialists operating in high-temperature, high-humidity, dust-laden, vibration-intensive, and electromagnetically noisy environments. Whether installed in a petrochemical control cabinet, a mining conveyor system, or a continuous steel rolling line, this module provides the galvanic isolation, contact durability, and thermal resilience that mission-critical infrastructure demands.

At TOPNLMS, every IC693MDL742 unit is sourced from verified supply channels, subjected to pre-shipment functional testing, and backed by a 12-month replacement warranty — giving procurement engineers and plant maintenance teams the confidence to specify this module as both an operational component and a strategic spare.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693MDL742 does not operate in isolation — it is a critical node within a broader Series 90-30 control architecture. In a typical industrial control cabinet, this relay output module works in concert with the IC693MDL654 (16-point 24 VDC input module) to form a complete discrete I/O pair, enabling the CPU to both read field sensor states and drive actuators, solenoids, and motor starters simultaneously. The IC693CPU350 or IC693CPU363 CPU module coordinates all I/O scanning and ladder logic execution, while the IC693PWR321 or IC693PWR322 power supply module delivers regulated 5 VDC backplane power with sufficient current headroom for fully populated racks.

In applications requiring analog process control alongside discrete switching, the IC693ALG221 analog input module and IC693ALG390 analog output module are commonly co-installed in the same rack, allowing the IC693MDL742 to handle on/off switching while analog modules manage PID loops for temperature, pressure, or flow. For systems requiring high-speed communications to SCADA or DCS platforms, the IC693CMM321 communications coprocessor module provides Ethernet TCP/IP connectivity, enabling the Series 90-30 rack — including the IC693MDL742 — to report output states and receive remote commands in real time.

Where safety integrity is paramount, the IC693MDL742 is often paired with dedicated safety relay modules and external safety PLCs such as the GE RX3i IC695ETM001 Ethernet interface or safety-rated interlock relays, ensuring that the relay output switching actions are supervised by an independent safety layer. Terminal block assemblies and field wiring connectors compatible with the IC693MDL742’s 40-pin connector interface are available to complete the installation without field-side modifications.

Application in Critical Infrastructure

In oil and gas upstream and midstream facilities, the IC693MDL742 controls wellhead valve actuators, emergency shutdown (ESD) solenoids, and pump motor starters — environments where relay contact isolation is non-negotiable due to the presence of explosive atmospheres and high-voltage field equipment. The module’s galvanic isolation ensures that field-side faults do not propagate back into the PLC backplane, protecting the entire control system from cascading failures.

In underground and open-pit mining operations, conveyor belt drives, crusher motor contactors, and ventilation fan starters are routinely switched by IC693MDL742 outputs. The module’s tolerance for vibration and wide operating temperature range makes it suitable for installation in surface control rooms as well as in ruggedized enclosures closer to the mining face. Maintenance teams value the module’s plug-and-play replacement capability — a failed unit can be swapped in minutes without rewiring, minimizing conveyor downtime during a production shift.

In thermal and hydroelectric power generation, the IC693MDL742 interfaces with turbine auxiliary systems, cooling water pump controls, and transformer tap-changer interlocks. Power plant control engineers specify this module for its proven long-term availability and the extensive installed base of Series 90-30 systems in the power sector, which simplifies spare parts management and reduces the risk of obsolescence-driven system redesigns.

In municipal and industrial water treatment plants, the module drives chemical dosing pump contactors, UV disinfection system relays, and sluice gate actuators. The non-condensing humidity rating and corrosion-resistant design make it appropriate for the damp, chemically active environments typical of water and wastewater facilities. Similarly, in metallurgical and steel processing plants, the IC693MDL742 manages furnace burner ignition relays, rolling mill auxiliary drives, and cooling bed transfer mechanisms — applications where continuous 24/7 operation and zero unplanned downtime are the baseline expectation.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers functional failure under normal operating conditions. If the IC693MDL742 fails within the warranty period, TOPNLMS will provide a direct replacement unit at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Replacement units are dispatched within 3 business days of claim verification.

Q2: How is each unit tested before shipment?
Every IC693MDL742 unit undergoes pre-shipment functional verification, including backplane communication checks, relay contact continuity testing across all 16 output points, and visual inspection for physical damage, corrosion, or component anomalies. Units that do not pass all test criteria are quarantined and not offered for sale. Test records are available upon request for quality-critical procurement processes.

Q3: Is the IC693MDL742 compatible with all Series 90-30 CPU and rack configurations?
Yes. The IC693MDL742 is compatible with all standard GE Series 90-30 CPU modules and expansion racks, including the IC693CHS391 (5-slot), IC693CHS397 (10-slot), and IC693CHS398 (10-slot with expanded power). It occupies a single I/O slot and requires no special configuration beyond standard I/O table assignment in the GE Proficy Machine Edition programming environment. Mixed-rack configurations with analog, communications, and other discrete modules are fully supported.

Q4: Can TOPNLMS support long-term or repeat procurement for plant maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of high-demand Series 90-30 modules including the IC693MDL742 to support planned maintenance schedules, annual spare parts budgets, and emergency breakdown procurement. Blanket purchase orders and scheduled delivery agreements are available for facilities managing large installed bases of GE Series 90-30 systems. Contact our technical sales team to discuss volume pricing, lead time commitments, and consignment stock arrangements.
