GE IC693MDL740 Replacement/Upgrade Solution for Series 90-30

Product Overview

GE IC693MDL740 Replacement/Upgrade Solution for Series 90-30: Smooth Transition from Legacy Digital Output Systems

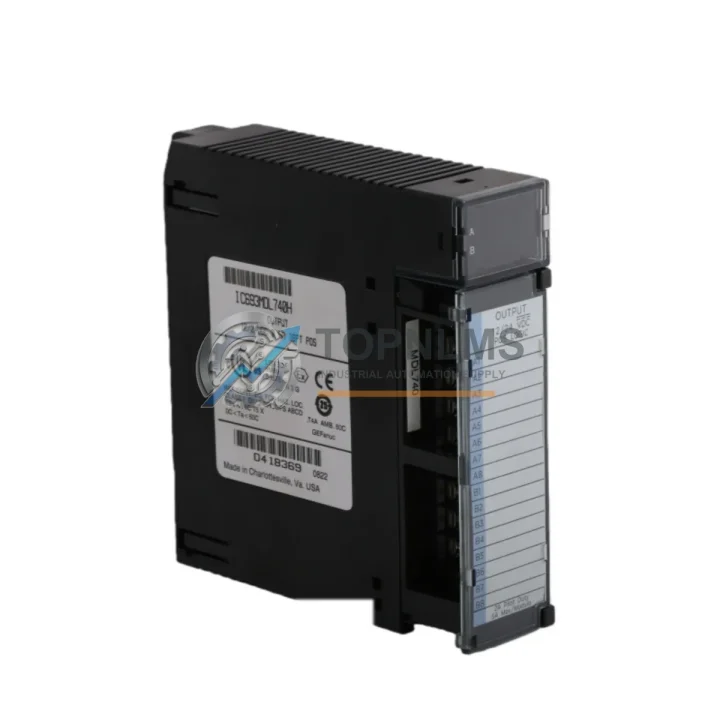

The GE Fanuc IC693MDL740 is a 32-point DC sourcing digital output module designed for the GE Series 90-30 programmable logic controller platform. With the Series 90-30 family now at end-of-life and OEM spare parts increasingly difficult to source through standard distribution channels, facilities that depend on this module for discrete output control face a critical procurement challenge. TOPNLMS maintains ready stock of the IC693MDL740 and provides validated replacement and upgrade pathways to help plant engineers minimize downtime, preserve existing wiring infrastructure, and protect their control system investment.

The IC693MDL740 provides 32 individually isolated DC sourcing outputs rated at 12–24VDC, with each output capable of sourcing up to 0.5A. This output configuration is widely used for driving solenoid valves, relay coils, indicator lamps, motor starters, and other inductive or resistive DC loads in discrete manufacturing, material handling, and process control applications. The module occupies a single slot in the Series 90-30 5-slot (IC693CHS391), 10-slot (IC693CHS392), or expansion chassis, and draws its logic power directly from the backplane without requiring a separate field power connection for the output driver circuitry — though a 24VDC field supply must be provided to the output commons.

For facilities replacing a failed or end-of-life IC693MDL740, the swap procedure is straightforward. The module uses a standard Series 90-30 slot connector and a field wiring terminal block that can be removed from the old module and reseated on the replacement unit without disturbing field wiring. This eliminates the need to re-terminate or re-label the 32 output field cables, which is a significant time saving during an unplanned outage. After seating the replacement module, the Series 90-30 CPU — whether an IC693CPU364, IC693CPU374, or IC693CPU374 — will automatically recognize the module type and restore normal output operation without requiring a program download, provided the slot configuration in the PLC program matches the installed hardware.

Sites that are migrating from an older 16-point output module such as the IC693MDL730 or IC693MDL731 to the IC693MDL740 will benefit from the doubled output density, which can consolidate two legacy module slots into a single slot and free up chassis space for additional I/O or communication modules. This consolidation is particularly valuable in fully populated 10-slot chassis where slot availability is constrained. The IC693MDL740’s output addressing is contiguous and maps directly to the %Q reference table in the Series 90-30 CPU, making the address remapping in the ladder logic program a straightforward find-and-replace operation in Proficy Machine Edition or the legacy Logicmaster 90 programming software.

For facilities undertaking a broader migration from the Series 90-30 platform to GE’s PACSystems RX3i architecture, the IC693MDL740 can serve as an interim solution while the new IC694MDL754 or IC694MDL758 digital output modules are being commissioned on the RX3i rack. The PACSystems RX3i is backward-compatible with Series 90-30 I/O modules through the use of a Series 90-30 expansion chassis connected via an IC695LRE001 remote expansion module, allowing a phased migration that avoids a full cutover shutdown. During this transition, the IC693MDL740 continues to handle its assigned output loops while the new RX3i rack takes over higher-priority control functions.

Communication and programming infrastructure typically remains unchanged when replacing the IC693MDL740 on a like-for-like basis. The Series 90-30 CPU communicates with all installed I/O modules via the backplane bus, and no fieldbus configuration changes are required. For sites using SNP or SNP-X serial programming connections, or Ethernet communications via an IC693CMM321 or IC693CMM311 communications module, the replacement module is transparent to the communication layer. Engineers using Proficy Machine Edition for online monitoring can verify output channel status in real time immediately after the replacement module is installed.

Power supply compatibility is an important consideration during any Series 90-30 module replacement. The IC693MDL740 draws approximately 85mA from the 5VDC backplane supply. Sites using the IC693PWR321 (120/240VAC) or IC693PWR330 (24VDC) power supply modules should verify that the existing power budget accommodates the replacement module, particularly if other modules have been added to the chassis since the original system was commissioned. In most standard configurations, the IC693MDL740’s power draw is within the budget of either power supply variant without modification.

From a procurement standpoint, the IC693MDL740 is a high-demand spare in aging Series 90-30 installations worldwide. OEM lead times through authorized GE distributors can extend to 16–26 weeks for new stock, and refurbished units from secondary market sources carry variable quality risks. TOPNLMS ships the IC693MDL740 from Xiamen within 3–5 business days for standard orders, with expedited options available for emergency plant shutdowns. Each unit is individually tested for output channel continuity, isolation integrity, and backplane communication before dispatch.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Series 90-30 output module replacement or platform migration involves more than a single module swap. In a typical 10-slot IC693CHS392 chassis, the IC693MDL740 shares the backplane with digital input modules such as the IC693MDL645 or IC693MDL654, analog I/O modules such as the IC693ALG390 or IC693ALG220, and a communications module such as the IC693CMM321 for Ethernet connectivity. When planning a phased upgrade, it is common practice to replace the output module first — since output failures cause immediate process disruption — while leaving the input and communications modules in service until the next scheduled maintenance window.

For sites migrating to the PACSystems RX3i platform, the transition typically begins with installing an IC695CHS012 or IC695CHS016 rack and an IC695CPU310 or IC695CPU320 controller alongside the existing Series 90-30 system. The IC695LRE001 remote expansion module allows the existing Series 90-30 chassis — including the IC693MDL740 — to remain in service as a remote I/O drop under the new RX3i controller, providing a non-disruptive migration path. As each process area is migrated, the corresponding I/O modules are moved to the new RX3i rack and replaced with IC694MDL754 or IC694MDL758 digital output modules, which offer higher output density and improved diagnostics.

Programming cable and software upgrades are often required during Series 90-30 modernization projects. Sites still using the legacy IC690ACC901 serial programming cable and Logicmaster 90 software should transition to Proficy Machine Edition with a USB-to-serial adapter or the IC693CBL316 programming cable before undertaking any significant program modifications. Proficy Machine Edition provides online editing, hardware configuration import, and diagnostic tools that are not available in Logicmaster 90, and it is the only supported programming environment for PACSystems RX3i targets.

Power supply replacement is frequently bundled with output module upgrades in aging Series 90-30 systems. The IC693PWR321 (120/240VAC input) and IC693PWR330 (24VDC input) are the standard power supply options for Series 90-30 chassis. If the existing power supply shows signs of age — such as output voltage drift, fan noise, or capacitor bulging — replacing it concurrently with the IC693MDL740 reduces the risk of a second unplanned outage shortly after the output module is restored to service.

For applications requiring signal isolation between the IC693MDL740’s sourcing outputs and sensitive field instrumentation, DIN-rail-mounted signal isolators or relay output modules can be installed in the field junction box without any changes to the PLC program or module configuration. This approach is commonly used in environments with high electrical noise, long cable runs, or mixed AC/DC field wiring that could otherwise cause ground loop interference on the output circuits.

Retrofit Guidance FAQ

Q: Can I reuse my existing field wiring when replacing the IC693MDL740?
A: Yes. The IC693MDL740 uses a removable field wiring terminal block that is physically identical across Series 90-30 digital output modules. Remove the terminal block from the old module and reseat it on the replacement unit. No re-termination or re-labeling of field cables is required, provided the wiring was originally installed for a 32-point sourcing output module.

Q: Do I need to download the PLC program after installing the replacement module?
A: In most cases, no. The Series 90-30 CPU automatically recognizes the IC693MDL740 on power-up if the slot configuration in the hardware configuration matches the installed module type. A program download is only required if the hardware configuration has been modified or if the CPU is in a state that requires re-initialization.

Q: Is the IC693MDL740 compatible with both 5-slot and 10-slot Series 90-30 chassis?
A: Yes. The IC693MDL740 is compatible with all standard Series 90-30 chassis, including the IC693CHS391 (5-slot), IC693CHS392 (10-slot), and expansion chassis variants. It occupies a single slot and requires no chassis modification.

Q: What field power supply voltage does the IC693MDL740 require?
A: The IC693MDL740 requires a 24VDC field power supply connected to the output common terminals. The module’s logic circuitry is powered from the 5VDC backplane supply. Existing 24VDC field power supplies are compatible without modification in the vast majority of installations.

Q: Can the IC693MDL740 be used in a PACSystems RX3i migration project?
A: Yes. The IC693MDL740 can remain in service in a Series 90-30 chassis connected to a PACSystems RX3i controller via the IC695LRE001 remote expansion module. This allows a phased migration where the output module continues to operate under the new controller while other system components are upgraded.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After seating the module and restoring power, use Proficy Machine Edition’s online diagnostics to confirm the module is recognized by the CPU and that all 32 output channels are reporting correctly. Force individual output bits to the ON state and verify the corresponding field device activates before returning the system to automatic control.

Warranty Assurance

Every IC693MDL740 supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional test protocol that includes output channel continuity verification across all 32 points, isolation resistance testing between output commons and backplane ground, and backplane communication verification with a Series 90-30 CPU. Units that do not meet GE Fanuc’s published specifications are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution confirmation. For emergency plant shutdown situations, expedited replacement shipping is available at no additional charge within the warranty period.

Procurement documentation including test reports, packing lists, and certificates of conformance is available upon request and can be provided before shipment to satisfy incoming inspection requirements. All units are shipped in anti-static packaging with individual serial number tracking to support traceability requirements in regulated industries.

For volume orders, blanket purchase agreements, and consignment stock arrangements, please contact our sales team directly to discuss terms.
