GE IC693MDL645J Ruggedized Discrete Input Module for Harsh Environments

Product Overview

GE IC693MDL645J Ruggedized Discrete Input Module for Harsh Environments

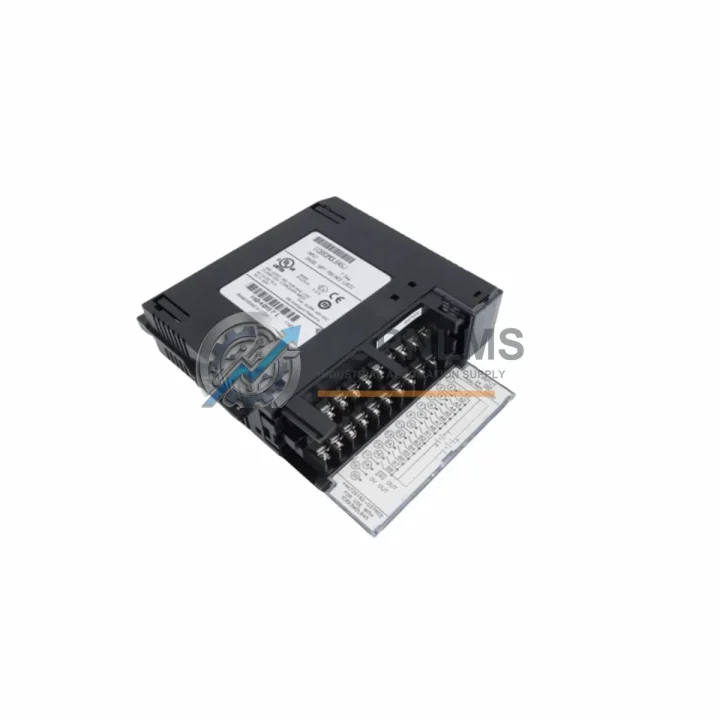

The GE Fanuc IC693MDL645J is a 16-point, 24VDC discrete input module engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably under demanding field conditions, the IC693MDL645J delivers consistent signal acquisition performance in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). Whether installed in a petrochemical control cabinet, a mining conveyor system, or a continuous steel-rolling line, this module maintains deterministic input scanning without signal degradation or nuisance faults.

Each input channel accepts 24VDC field signals from pushbuttons, proximity sensors, limit switches, photoelectric sensors, and other two-wire or three-wire discrete field devices. The module’s optically isolated input circuitry provides galvanic separation between field wiring and the backplane bus, protecting the Series 90-30 CPU — such as the IC693CPU374 or IC693CPU364 — from transient voltage spikes and ground loops that are common in heavy industrial environments. This isolation is critical in applications where long cable runs pass through areas with high-power motor drives, arc welding equipment, or variable-frequency drives (VFDs) that generate significant conducted and radiated noise.

In harsh-environment deployments, the IC693MDL645J is typically installed alongside complementary Series 90-30 I/O modules including the IC693MDL740 (16-point 24VDC discrete output module) and the IC693MDL654 (32-point 24VDC discrete input module), forming a complete digital I/O subsystem within a shared rack. The IC693CHS391 10-slot baseplate and IC693PWR321 power supply module provide the structural and electrical foundation for these assemblies, ensuring stable backplane voltage even under fluctuating plant power conditions. For analog process variables — temperature, pressure, flow — the IC693ALG221 analog input module integrates seamlessly into the same rack, enabling mixed discrete and analog control within a single Series 90-30 chassis.

Communication integrity is equally important in safety-critical and continuous-process environments. The IC693MDL645J operates within systems that may include the IC693CMM321 communications coprocessor for Ethernet connectivity or the IC693CMM311 for serial Genius Bus or SNP/SNPX protocol links. These communication modules allow the Series 90-30 system to exchange real-time I/O status data with SCADA platforms, distributed control systems (DCS), and HMI terminals — ensuring that the discrete input states captured by the IC693MDL645J are immediately available for supervisory monitoring and alarm management. In safety-instrumented system (SIS) architectures, the module’s reliable input acquisition supports interlock logic that protects personnel and equipment from hazardous process deviations.

The ruggedized construction of the IC693MDL645J makes it particularly well-suited for industries where module replacement downtime is costly. In oil and gas upstream and midstream facilities, the module monitors valve position feedback, emergency shutdown (ESD) pushbutton states, and gas detector alarm contacts. In water and wastewater treatment plants, it reads pump run/fault status, level switch contacts, and flow switch signals across geographically distributed pump stations. In metallurgical and smelting operations, it captures furnace door position, conveyor belt motion, and cooling water flow confirmation signals — all in environments where ambient temperatures may exceed 55°C and vibration levels are continuous. The module’s wide operating temperature range and conformal-coated PCB design (on applicable revisions) provide additional protection against condensation and corrosive atmospheres.

For maintenance engineers managing aging Series 90-30 installations, the IC693MDL645J represents a direct, pin-compatible replacement for earlier revisions of the same module family. Stocking this module as a critical spare eliminates extended lead times during unplanned failures and supports planned preventive maintenance programs. TOPNLMS maintains verified inventory of the IC693MDL645J, with each unit subjected to functional power-on testing and visual inspection prior to shipment. All units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable Series 90-30 control system is built from a carefully matched set of components, and the IC693MDL645J functions as the primary field-signal gateway within that architecture. In a typical control cabinet for a continuous production line, the module works in concert with the IC693MDL740 discrete output module to form a complete digital I/O pair — inputs reading field sensor states, outputs driving solenoid valves, motor starters, and indicator lamps. The IC693ALG221 analog input module handles 4–20mA process signals from pressure transmitters and flow meters, while the IC693ALG390 analog output module drives control valves and variable-speed drive setpoints.

Power integrity is maintained by the IC693PWR321 power supply, which converts 120/240VAC plant power to the regulated 5VDC and 24VDC backplane voltages required by all Series 90-30 modules. Upstream, a dedicated 24VDC field power supply — often a Phoenix Contact or Siemens SITOP unit — provides isolated field power to the input module’s sensor circuits, preventing backplane noise from coupling into field wiring. The IC693CPU374 CPU module executes the ladder logic program that processes the 16 discrete input states from the IC693MDL645J, applying interlock conditions, timer logic, and counter functions before issuing output commands. For installations requiring remote I/O expansion beyond the local rack, the IC693BEM331 Bus Expansion Module extends the Series 90-30 I/O bus to remote racks located up to 200 meters from the main CPU chassis — a common requirement in large-footprint facilities such as water treatment plants and mining concentrators.

In safety-critical zones, the IC693MDL645J input states feed directly into emergency shutdown (ESD) interlock rungs. Paired with a dedicated safety relay module or a SIL-rated safety PLC for the final safety function, the Series 90-30 system provides the process monitoring layer that detects abnormal conditions — high temperature, low flow, valve misposition — and initiates the controlled shutdown sequence. Terminal blocks from the IC693ACC300 accessory family or equivalent DIN-rail terminal assemblies provide the field wiring termination points, ensuring organized, labeled, and maintainable wiring within the control cabinet.

Application in Critical Infrastructure

The IC693MDL645J has a proven deployment history across the most demanding sectors of critical infrastructure. In oil and gas upstream production facilities, the module monitors wellhead valve position feedback, high-pressure shutdown switch contacts, and flame detector relay outputs — all signals that must be read reliably in environments subject to hydrocarbon vapors, salt-laden air, and wide diurnal temperature swings. Offshore platform installations place additional demands on vibration resistance, as structural movement and rotating machinery create continuous mechanical stress on rack-mounted electronics.

In coal and hard-rock mining operations, the module is deployed in conveyor belt control systems, longwall shearer interlocks, and ventilation fan monitoring panels. Dust concentrations, high humidity from water suppression systems, and the proximity of large electric motors and switchgear create an extremely challenging electromagnetic environment. The IC693MDL645J’s optical isolation and robust input filtering ensure that nuisance trips caused by induced noise do not interrupt production.

In power generation and transmission substations and generating stations, the module reads breaker status contacts, transformer protection relay outputs, and auxiliary equipment run/fault signals. The deterministic scan time of the Series 90-30 CPU ensures that protection logic responds within the required time window. In water and wastewater treatment facilities, the module monitors pump run confirmation, level switch states, UV disinfection system status, and chemical dosing pump feedback — supporting continuous, unattended operation of critical public infrastructure. In metallurgical plants — steel mills, aluminum smelters, and copper refineries — the module operates in environments with radiated heat from furnaces, airborne metallic dust, and high-current bus bars that generate intense magnetic fields, conditions under which its optical isolation and conformal-coated PCB provide essential protection.
