GE IC693CBL300 Replacement Cable for Series 90-30

Product Overview

GE IC693CBL300 Replacement Cable for Series 90-30: Seamless Migration & Upgrade Solution

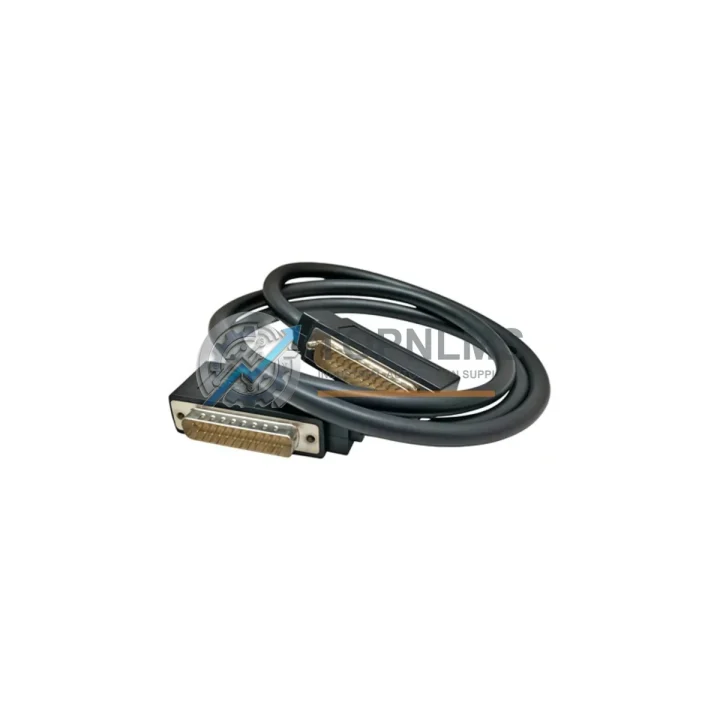

The GE Fanuc IC693CBL300 is a bus extension cable purpose-built for the Series 90-30 PLC platform, enabling multi-rack system expansion by linking the primary rack to remote I/O expansion racks. As GE Fanuc’s Series 90-30 product line approaches end-of-life and spare parts become increasingly scarce, facilities running legacy control architectures face mounting pressure to source verified replacement cables or plan a structured migration to a supported platform. This page provides a complete technical and procurement reference for engineers and maintenance teams managing IC693CBL300 replacement, upgrade, or system retrofit projects.

Whether your plant is operating a standalone Series 90-30 controller with a single IC693CHS391 or IC693CHS397 rack, or running a distributed multi-rack configuration with remote I/O expansion via IC693CHS398 expansion chassis, the IC693CBL300 bus extension cable is the critical physical link that sustains rack-to-rack communication. A failed or degraded cable in this path causes immediate loss of I/O communication, triggering CPU fault codes and unplanned downtime. Sourcing a verified replacement from a stocked supplier with pre-shipment testing is the fastest path to restoring production.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Series 90-30 bus extension cable replacement rarely happens in isolation. In most retrofit and migration scenarios, the IC693CBL300 is one component in a broader system refresh. During the cable replacement process, maintenance teams frequently audit adjacent components for wear or obsolescence.

In multi-rack configurations, the expansion chassis itself — typically an IC693CHS398 — should be inspected for backplane connector wear. If the chassis backplane shows signs of oxidation or mechanical damage at the bus connector, replacing the IC693CBL300 alone may not fully restore communication reliability. In such cases, a chassis replacement is recommended alongside the cable.

The CPU module driving the bus — commonly an IC693CPU364 or IC693CPU374 in larger Series 90-30 installations — should be verified for firmware compatibility with any replacement cable. While the IC693CBL300 is a passive cable assembly with no firmware dependency, confirming that the CPU’s I/O scan configuration correctly maps all expansion rack slots prevents post-replacement fault conditions.

Power supply modules such as the IC693PWR330 or IC693PWR331 in expansion racks must deliver stable voltage to the backplane during bus extension operation. If the plant has experienced intermittent bus faults prior to cable failure, the power supply in the expansion rack should be load-tested before returning the system to production. A degraded IC693PWR321 in the primary rack can cause voltage sag on the bus extension, mimicking cable faults.

I/O modules installed in the expansion rack — including discrete input modules such as IC693MDL340 or IC693MDL341, discrete output modules such as IC693MDL390, and analog modules such as IC693ALG220 or IC693ALG390 — should be reseated and verified after any bus cable replacement. Backplane communication errors can leave I/O module configuration registers in an indeterminate state, requiring a CPU cold restart and I/O configuration download from the programming software.

For facilities using Profibus or Ethernet communications alongside the Series 90-30 backplane bus, the IC693CMM321 communications module or IC693CMM311 should be checked for active faults after the bus cable is restored. Bus extension interruptions can trigger communication module resets that require manual fault acknowledgment in the SCADA or DCS layer.

If the migration scope extends beyond a cable replacement to a full rack consolidation or CPU upgrade, the IC693CPU374 — the highest-performance Series 90-30 CPU — supports expanded I/O point counts and faster scan times, potentially eliminating the need for bus extension cables entirely by consolidating I/O into a single high-density rack configuration. This approach reduces the number of physical cable connections in the control cabinet and improves long-term maintainability.

Programming cable IC690ACC901 or the USB-to-serial adapter equivalent is required for any CPU configuration download following a rack reconfiguration. Ensure the programming workstation has the correct version of Proficy Machine Edition or the legacy Logicmaster 90-30 software installed before beginning commissioning.

Retrofit Guidance FAQ

Q: Does replacing the IC693CBL300 require any PLC program changes?
A: No. The IC693CBL300 is a passive bus extension cable. Replacing it with an identical unit requires no changes to the CPU program, I/O configuration, or rack addressing. After installation, perform a CPU power cycle and verify that all expansion rack I/O modules appear in the I/O configuration table without fault indicators.

Q: Can I use a different cable length (IC693CBL301 or IC693CBL302) as a substitute?
A: Yes, provided the physical routing distance between racks is within the alternate cable’s rated length. The bus extension cable family shares the same electrical interface. Verify the rack-to-rack distance before ordering an alternate length to avoid signal integrity issues from excessive cable slack or insufficient length.

Q: What communication protocol does the Series 90-30 bus extension use?
A: The Series 90-30 bus extension cable carries the proprietary GE Fanuc backplane bus signals, not a standard fieldbus protocol such as Profibus or DeviceNet. This bus is specific to the Series 90-30 rack family and is not interchangeable with Series 90-70 or PACSystems RX3i bus cables.

Q: How do I verify the cable is the cause of my expansion rack fault?
A: In Proficy Machine Edition or Logicmaster 90-30, navigate to the I/O fault table. A bus extension cable fault typically presents as a loss-of-communication fault on all modules in the expansion rack simultaneously. Swap the cable with a known-good unit or bypass the expansion rack temporarily to isolate the fault to the cable versus the expansion chassis backplane.

Q: Is the IC693CBL300 compatible with PACSystems RX3i racks?
A: No. The PACSystems RX3i platform uses a different backplane bus architecture and physically incompatible connectors. Migration from Series 90-30 to RX3i requires a full rack and CPU replacement, along with program conversion using Proficy Machine Edition’s conversion tools.

Q: What is the installation space requirement for the bus extension cable?
A: The IC693CBL300 connects between the bus extension port on the right side of the primary rack and the bus receiver port on the left side of the expansion rack. Ensure a minimum cable bend radius is maintained in the control cabinet routing path. The cable should not be routed adjacent to high-voltage conductors or variable frequency drive output cables to prevent EMI-induced signal errors.

Warranty Assurance

Every IC693CBL300 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each unit undergoes visual inspection, connector integrity verification, and continuity testing to confirm the cable assembly meets GE Fanuc Series 90-30 bus extension specifications.

If a unit exhibits any defect in materials or workmanship within the warranty period, TOPNLMS will provide a replacement unit or full refund at the buyer’s discretion. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched from our Xiamen warehouse with priority shipping to minimize your system downtime.

For urgent procurement requirements — including same-day quotation, express shipping, and multi-unit orders for MRO stock — contact our industrial automation parts team directly. We maintain buffer stock of high-demand Series 90-30 components to support unplanned maintenance events.

Stock availability, lead times, and volume pricing are confirmed at the time of order. We support T/T bank transfer, PayPal, and trade assurance payment terms for international buyers.
