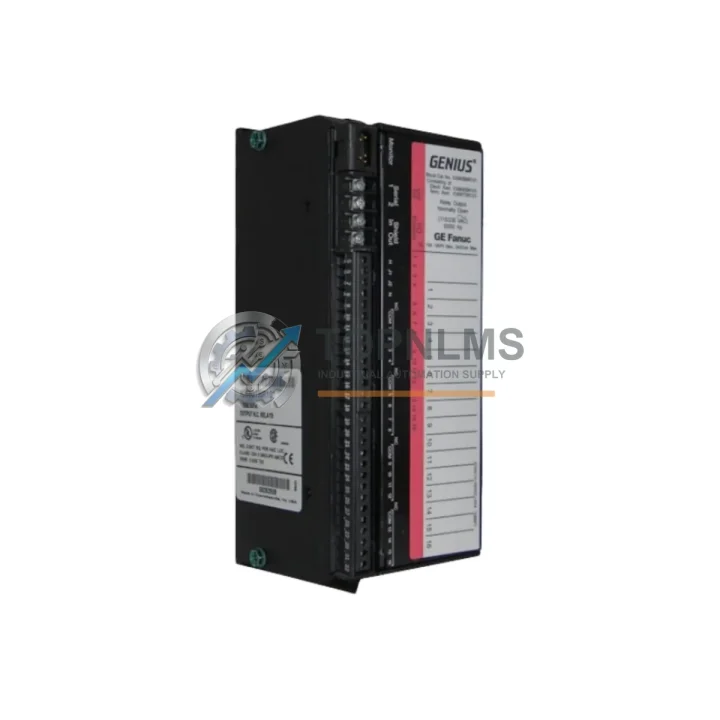

GE IC660BBR101 Ruggedized Relay Output Module for Harsh Environments

Product Overview

GE IC660BBR101 Ruggedized Relay Output Module for Harsh Environments

The GE IC660BBR101 is a 16-Point 120/240VAC Genius Bus Relay Output Block engineered for the GE Series 90-70 PLC platform — one of the most widely deployed distributed control architectures in heavy industry. Designed to operate reliably in the most demanding industrial environments, this module delivers robust relay-switched output control across 16 discrete channels, making it an essential component in high-availability control systems where downtime is not an option.

In environments characterized by extreme temperature fluctuations, persistent vibration, airborne particulates, high humidity, and electromagnetic interference — such as those found in oil and gas processing, mining operations, power generation, and metallurgical plants — the IC660BBR101 maintains stable, predictable switching performance. Its relay output architecture provides inherent galvanic isolation between the field-side load circuit and the controller logic, a critical safety feature in installations where voltage transients and ground loops are common hazards.

The module communicates over the GE Genius Bus serial I/O network, a deterministic, high-speed fieldbus protocol that enables distributed I/O placement close to the field devices — reducing wiring runs, minimizing signal degradation, and improving overall system response time. In large-scale control cabinets housing GE Series 90-70 CPUs such as the IC697CPU772 or IC697CPU781, the IC660BBR101 integrates seamlessly alongside other Genius Bus I/O blocks, including analog input modules like the IC660BBA020, discrete input blocks such as the IC660BBD020, and current source output modules like the IC660BBS100. This interoperability allows engineers to build modular, scalable I/O subsystems without compromising on signal integrity or system determinism.

For facilities running continuous production lines — where a single unplanned stop can cost tens of thousands of dollars per hour — the IC660BBR101 serves as a dependable relay switching interface for motor starters, solenoid valves, alarm annunciators, and contactor coils operating at 120VAC or 240VAC. Its 16-channel capacity reduces the number of modules required per panel, simplifying cabinet layout and lowering overall system cost. When paired with GE Genius Bus Interface Units (BIUs) and Series 90-70 power supplies such as the IC697PWR711, the module forms a complete, field-proven I/O solution capable of sustaining 24/7 operation under industrial load cycles.

Replacement and spare-parts procurement for legacy GE Series 90-70 systems is a persistent challenge for maintenance engineers. Many plants continue to operate this platform due to its proven reliability and the prohibitive cost of full system migration. TOPNLMS maintains verified stock of the IC660BBR101 to support these facilities with fast, reliable spare-part fulfillment. Each unit undergoes functional verification prior to shipment, ensuring that the module you receive is operationally ready for immediate installation — minimizing mean time to repair (MTTR) during unplanned outages.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC660BBR101 is most effective when deployed as part of a coordinated control and protection architecture. In a typical Series 90-70 control cabinet, it operates alongside the IC660BBD020 Genius Bus Discrete Input Block, which handles field-side digital signal acquisition, and the IC660BBA020 Analog Input Block for process variable monitoring. Together, these modules form a complete I/O layer that feeds real-time data to the Series 90-70 CPU for logic execution and safety interlocking.

For power distribution within the control panel, the IC697PWR711 Series 90-70 Power Supply provides stable, regulated DC power to the backplane and I/O modules, ensuring that relay switching transients on the output side do not propagate back into the logic supply rail. In installations where power quality is a concern — particularly in facilities with large motor drives or arc furnaces — supplementing the system with a dedicated industrial UPS or line conditioner upstream of the IC697PWR711 is strongly recommended.

Communication integrity across the Genius Bus network is maintained by the IC660CBB902 Genius Bus Controller, which manages token-passing and I/O scan cycles. In multi-drop bus configurations spanning long cable runs across a plant floor, proper bus termination and shielded twisted-pair cabling are essential to prevent reflections and data corruption. The IC660BBR101’s bus interface is designed to tolerate the noise levels typical of these environments, but pairing it with correctly specified bus cables and terminators ensures maximum reliability.

For safety-critical applications requiring SIL-rated interlocking, the IC660BBR101 relay outputs can be wired in series with dedicated safety relay modules or safety PLCs to create redundant shutdown circuits. In such configurations, the relay contacts serve as the final switching element in an emergency stop (E-stop) or process shutdown loop, providing a hard-wired, fail-safe disconnect path independent of the PLC logic. This architecture is commonly used in conjunction with safety modules from GE’s own safety product line or third-party SIL 2/3 certified safety relays to meet IEC 61508 and IEC 62061 requirements.

Application in Critical Infrastructure

In oil and gas processing facilities, the IC660BBR101 is deployed to control wellhead valve actuators, compressor motor starters, and flare ignition systems — all of which demand reliable, high-voltage relay switching in environments subject to explosive atmospheres, corrosive gases, and wide ambient temperature swings. The module’s galvanic isolation is particularly valuable here, preventing ground faults on the field side from propagating into the control system and triggering spurious shutdowns.

In coal and hard-rock mining operations, where conveyor systems, ventilation fans, and dewatering pumps must run continuously under heavy vibration and dust loading, the IC660BBR101 provides the switching reliability needed to maintain production throughput. Its 16-channel capacity allows a single module to control multiple loads simultaneously, reducing the number of I/O nodes on the Genius Bus and simplifying network topology in underground or surface control rooms.

In power generation and grid substations, the module is used to interface PLC-based control systems with high-voltage switchgear, transformer tap changers, and circuit breaker control circuits. The 120/240VAC output rating aligns directly with the control voltage standards used in most substation secondary systems, eliminating the need for intermediate signal converters or interposing relays in many applications.

In water and wastewater treatment plants, the IC660BBR101 controls pump motor starters, chemical dosing systems, and UV disinfection equipment across distributed pump stations connected via Genius Bus. Its ability to operate reliably in high-humidity environments — common in wet-well and chemical storage areas — makes it a preferred choice for plant engineers managing aging SCADA and PLC infrastructure.

In metallurgical and steel production facilities, where electromagnetic interference from large induction furnaces and rolling mill drives is a constant challenge, the relay output architecture of the IC660BBR101 provides inherent noise immunity on the output switching path. The module’s robust construction allows it to maintain accurate switching timing even in the presence of high-frequency EMI that would compromise solid-state output modules.

Security & Quality FAQ

Q1: What warranty does TOPNLMS provide for the IC660BBR101?
All IC660BBR101 units supplied by TOPNLMS carry a 12-month warranty from the date of shipment. This covers functional defects identified under normal operating conditions. If a module fails within the warranty period, TOPNLMS will arrange replacement or repair at no additional cost to the buyer. Warranty claims are processed promptly to minimize disruption to your production operations.

Q2: How is each unit tested before shipment?
Every IC660BBR101 in our inventory undergoes a pre-shipment functional verification process. This includes power-on testing, bus communication checks, and relay output switching verification across all 16 channels. Units that do not pass functional testing are quarantined and not dispatched. A test report can be provided upon request for customers with documentation requirements.

Q3: Is the IC660BBR101 compatible with all GE Series 90-70 CPU variants?
Yes. The IC660BBR101 is compatible with the full range of GE Series 90-70 CPUs that support Genius Bus I/O, including the IC697CPU772, IC697CPU781, and IC697CPU788. It is also compatible with Series 90-30 systems equipped with a Genius Bus Interface Module (BIM). If you are unsure about compatibility with your specific system configuration, contact our technical team at [email protected] for pre-purchase verification.

Q4: Can TOPNLMS support long-term or recurring supply of the IC660BBR101?
Yes. TOPNLMS maintains ongoing stock of the IC660BBR101 and other GE Series 90-70 components to support facilities with long-term maintenance and spare-parts programs. We can accommodate blanket purchase orders, scheduled releases, and emergency procurement requests. For facilities managing end-of-life PLC platforms, we also offer cross-reference and alternative sourcing support to identify compatible replacement modules where original parts are no longer available from the OEM.
