GE IC600BF917N Ruggedized Positioning Module for Harsh Environments

Product Overview

GE IC600BF917N Ruggedized Positioning Module for Harsh Environments

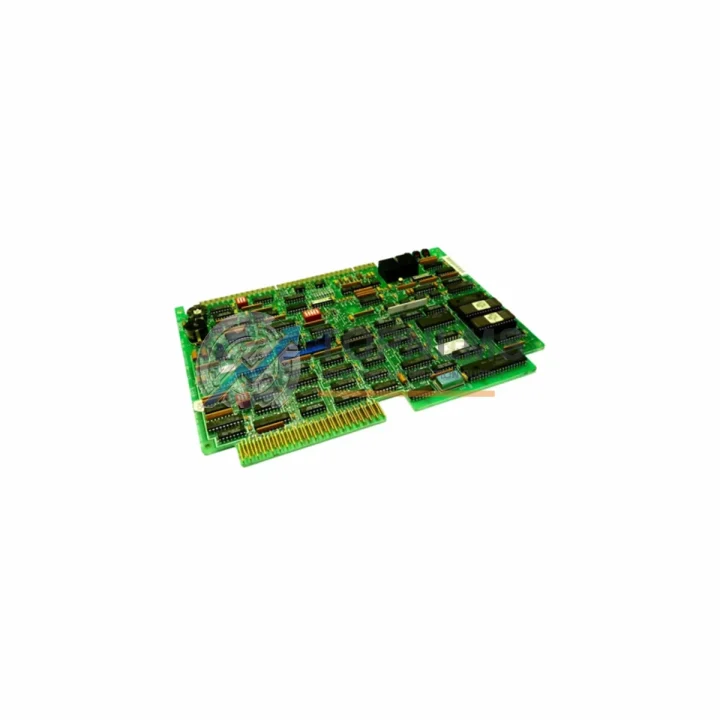

The GE Fanuc IC600BF917N is a high-performance positioning module engineered for the GE Series Six PLC platform, purpose-built to deliver precise closed-loop axis control in the most demanding industrial environments. Designed to withstand elevated temperatures, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module is a proven backbone component for continuous-process and heavy-industry automation systems where downtime is not an option.

Whether deployed in a steel mill, petrochemical refinery, underground mining operation, or high-voltage power distribution facility, the IC600BF917N maintains deterministic positioning accuracy and signal integrity across its full operating envelope. Its ruggedized backplane interface and shielded I/O architecture make it a preferred choice for engineers who cannot compromise on reliability when specifying motion control hardware for safety-critical or production-critical applications.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC600BF917N does not operate in isolation — it is one node in a tightly integrated Series Six control architecture. In a typical heavy-industry control cabinet, this positioning module works in concert with the GE IC600CB502 Series Six CPU module, which handles ladder-logic execution and coordinates axis commands. Power integrity for the entire rack is maintained by a dedicated GE IC600PS501 power supply module, which provides regulated 5 VDC and 24 VDC rails with over-voltage and short-circuit protection essential for protecting sensitive positioning circuitry.

Discrete field signals — limit switches, home sensors, and drive-enable outputs — are routed through GE IC600BF831 discrete I/O modules, which provide optically isolated inputs and relay-contact outputs rated for industrial voltage levels. In environments with significant electromagnetic interference from variable-frequency drives or large motor starters, the addition of GE IC600BF900-series analog I/O modules with shielded wiring and proper grounding schemes ensures that encoder feedback signals reaching the IC600BF917N remain clean and accurate.

Communication between the Series Six rack and supervisory SCADA or DCS systems is typically handled by GE IC600CM901 or IC600CM906 communication modules, supporting Genius Bus or serial protocols that allow the positioning module’s status registers and fault codes to be monitored in real time. For safety-critical applications, a dedicated GE IC600SF series safety relay module or an external safety relay from the same control cabinet can be wired to the drive-enable output of the IC600BF917N, ensuring that any E-stop or safety-gate event immediately de-energizes the servo amplifier.

Terminal modules and marshalling panels — such as GE IC600TB series terminal blocks — provide the structured field-wiring interface that keeps the control cabinet organized, reduces wiring errors, and simplifies maintenance during scheduled shutdowns. When the IC600BF917N is used in a multi-axis system, additional positioning modules of the same family can be installed in adjacent slots, all sharing the same backplane power and CPU scan cycle, making the Series Six platform highly scalable for complex motion applications.

Application in Critical Infrastructure

In oil and gas processing facilities, the IC600BF917N is deployed to control valve-actuator positioning on high-pressure pipelines, where precise travel limits and repeatable positioning accuracy are mandatory for process safety and regulatory compliance. The module’s tolerance for wide ambient temperature swings — common in outdoor or semi-outdoor equipment enclosures in desert or arctic climates — makes it a dependable choice for upstream and midstream automation.

In underground coal and hard-rock mining, where vibration from blasting and heavy machinery is constant and airborne dust concentrations can be extreme, the IC600BF917N is installed inside sealed, dust-tight control enclosures rated to IP54 or higher. It manages conveyor belt indexing and hoist positioning systems where a positioning error or module failure could result in significant safety incidents and production losses measured in thousands of dollars per hour.

In electric power generation and transmission — including thermal, hydro, and nuclear facilities — the module is used in turbine governor control panels and transformer tap-changer positioning systems. The high EMI environment generated by large generators and switchgear demands the shielded signal architecture that the IC600BF917N provides, and its long-term parts availability through specialist distributors like TOPNLMS ensures that aging plant infrastructure can be maintained without costly full-system replacements.

In metallurgical and steel-making plants, the module controls rolling mill gap positioning and ladle-transfer car indexing. Ambient temperatures near furnaces can approach the upper limits of the module’s rated range, and the ability to source a verified, tested replacement unit with a 12-month warranty — rather than waiting months for an OEM lead time — is a critical factor in plant maintenance planning. In municipal water and wastewater treatment, the IC600BF917N manages pump-station valve actuators and screen-drive positioning, where continuous unattended operation and remote diagnostics via the Series Six communication bus are essential for reliable infrastructure service.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, TOPNLMS will provide a replacement unit or full refund after fault verification. Claims are initiated by contacting [email protected] with the order number and a description of the fault symptom.

Q2: How is each IC600BF917N tested before shipment?
Every unit undergoes a multi-point functional inspection prior to dispatch: visual inspection for physical damage, backplane connector integrity check, power-on self-test verification, and where test fixtures are available, closed-loop positioning function verification. Units that do not pass all inspection criteria are quarantined and not shipped. A test report summary is available upon request for critical-infrastructure procurement.

Q3: Is the IC600BF917N compatible with all GE Series Six CPU and rack configurations?
The IC600BF917N is designed for the GE Series Six parallel backplane and is compatible with all standard Series Six CPU modules and rack sizes. It is not directly compatible with GE Series Five, Series 90-30, or Series 90-70 platforms without an adapter or system redesign. Buyers integrating this module into an existing Series Six system should verify rack slot availability and CPU firmware revision with their system documentation. TOPNLMS technical staff can assist with compatibility queries prior to purchase.

Q4: Can TOPNLMS support long-term or repeat supply of IC600BF917N for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of GE Series Six modules specifically to support plant maintenance programs, scheduled turnarounds, and emergency sparing strategies. Customers managing aging GE Series Six installations are encouraged to discuss blanket-order arrangements or reserved-stock agreements to ensure module availability during critical production periods. Contact our team at +86 18359293191 or [email protected] to discuss your long-term supply requirements.
