GE IC200MDL750 Replacement/Upgrade Solution for VersaMax

Product Overview

GE IC200MDL750 Replacement/Upgrade Solution for VersaMax: Seamless Transition from Legacy Output Modules

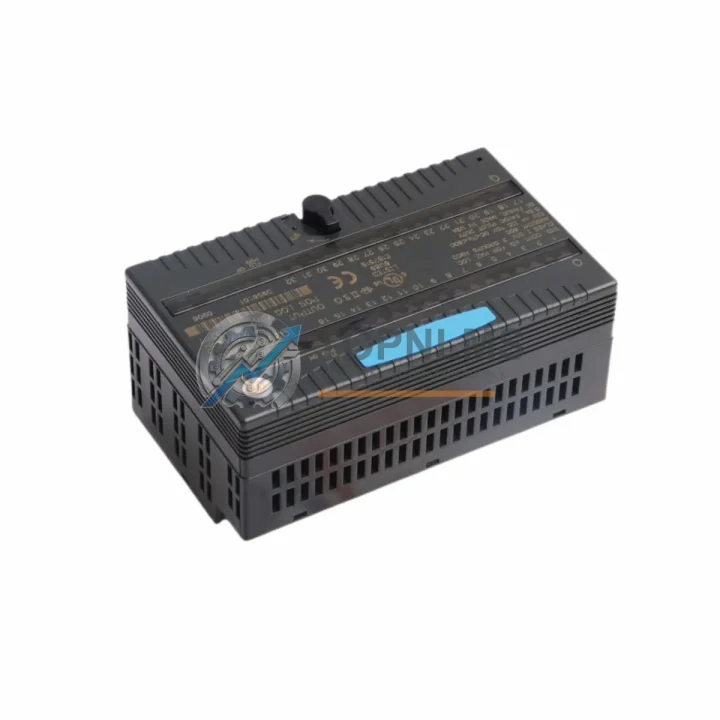

The GE IC200MDL750 is a 16-point, 12/24VDC sourcing discrete output module designed for the GE VersaMax Series PLC platform. As legacy GE Fanuc and early Emerson Automation control systems approach end-of-life, plant engineers and procurement teams increasingly require a reliable, drop-in replacement or a structured upgrade path that preserves existing wiring infrastructure, rack geometry, and ladder logic programs. TOPNLMS stocks the IC200MDL750 and its compatible upgrade alternatives, providing verified compatibility, pre-shipment functional testing, and a 12-month warranty on every unit.

Whether you are replacing a failed module in an active production line, building a spare-parts buffer for a VersaMax-based control cabinet, or executing a phased migration from an older GE Series 90 Micro or Series 90-30 architecture to a modernized VersaMax or PACSystems RX3i platform, the IC200MDL750 represents a cost-effective, field-proven solution that minimizes engineering rework and unplanned downtime.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful migration to or around the IC200MDL750 rarely involves a single module swap. In practice, field engineers working on VersaMax-based control cabinets must coordinate several interdependent components to achieve a clean, validated cutover.

For installations where the IC200MDL750 is being installed into an existing VersaMax rack, the IC200CHS002 VersaMax Carrier or IC200CHS022 Expansion Carrier must be confirmed as physically present and correctly seated. If the rack is being rebuilt or expanded, the IC200PWR002 24VDC Power Supply Module should be verified for adequate current capacity, as adding 16 sourcing output points increases the total load budget. In high-density cabinets, engineers often pair the IC200MDL750 with the IC200MDL650 16-Point 24VDC Sinking Input Module to create a balanced I/O slice for a single machine zone.

Communication architecture is equally important. VersaMax remote I/O drops connected over a Genius Bus require a IC200GBI001 Genius Bus Interface Unit (NIU) to bridge the local VersaMax backplane to the plant-wide Genius network. For sites transitioning to Ethernet-based architectures, the IC200ETM001 Ethernet Interface Module enables SRTP or Modbus TCP communication, allowing the VersaMax drop to be supervised by a PACSystems RX3i CPU or a third-party SCADA system without replacing the I/O layer.

Wiring continuity is a common concern during module replacement. The IC200MDL750 uses a standard 40-pin IDC connector, and the IC200CBL001 Prewired Cable Assembly with a compatible terminal block simplifies field wiring and reduces the risk of miswiring during hot-swap maintenance windows. For installations where signal isolation is required between the PLC output and field devices — particularly in environments with variable-frequency drives, servo amplifiers, or high-inductive loads — an inline signal isolator or surge suppressor terminal block is strongly recommended between the module output and the load.

Programming continuity is preserved when migrating within the VersaMax platform: the I/O reference addresses assigned to the IC200MDL750 in Proficy Machine Edition (PME) or the legacy VersaPro programming software remain valid as long as the module occupies the same slot position in the same carrier. Engineers performing a like-for-like swap do not need to modify the ladder logic program, which significantly reduces validation time and the risk of introducing software errors during a production outage.

For sites executing a broader migration from Series 90-30 to VersaMax or PACSystems, the IC200CPU001 VersaMax CPU Module or the IC695CPE302 PACSystems RX3i CPU can serve as the new controller backbone, with the IC200MDL750 retained as a proven, cost-effective output layer. This hybrid approach — new CPU, retained I/O — is a common strategy for reducing capital expenditure while achieving modern Ethernet connectivity and expanded memory capacity.

Retrofit Guidance FAQ

Q: Can I replace a failed IC200MDL750 without modifying my ladder logic program?
A: Yes. A direct slot-for-slot replacement within the same VersaMax carrier preserves all I/O reference addresses. No program changes are required. Confirm the replacement module’s firmware revision is compatible with your CPU version using the GE/Emerson compatibility matrix.

Q: Is the wiring connector on the IC200MDL750 compatible with my existing field wiring?
A: The IC200MDL750 uses a 40-pin IDC connector. If your existing installation uses the IC200CBL001 prewired cable, the replacement is plug-compatible. If field wires are landed directly on a terminal block, verify the terminal block model matches the 40-pin pinout before powering up.

Q: Can the IC200MDL750 communicate over Modbus RTU or Profibus?
A: The IC200MDL750 is a discrete I/O module and does not have an independent communication port. Communication is handled at the network interface level — via the IC200GBI001 for Genius Bus or the IC200ETM001 for Ethernet. Profibus connectivity requires a separate Profibus Network Interface Unit.

Q: What is the physical installation space requirement?
A: The IC200MDL750 occupies one slot in a VersaMax carrier (IC200CHS002 or IC200CHS022). It is not physically compatible with Series 90-30 racks without a carrier adapter. Verify available slot count and power budget before ordering multiple modules for a single drop.

Q: How do I verify the module is functioning correctly after installation?
A: Use Proficy Machine Edition or VersaPro to force individual output points in test mode with the field devices de-energized. Confirm LED indicators on the module face match the forced states. Check the CPU fault table for any I/O configuration mismatch errors before returning the system to automatic mode.

Q: Can this module replace an IC200MDL730 or IC200MDL740?
A: The IC200MDL730 (8-point, 12/24VDC sourcing) and IC200MDL740 (16-point, 24VDC sourcing) are functionally similar but differ in point count and voltage range. The IC200MDL750 is the 16-point, 12/24VDC sourcing variant. Substitution is possible with minor program address adjustments if point counts differ.

Warranty Assurance

Every IC200MDL750 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. Prior to shipment, each module undergoes a functional output verification test to confirm all 16 output channels respond correctly to control signals and that no latent faults are present. Units are packaged in anti-static ESD bags with foam cushioning to prevent transit damage.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team responds to after-sales inquiries within one business day. We maintain buffer stock of the IC200MDL750 and related VersaMax components to support rapid replacement dispatch, minimizing the impact of module failures on production schedules.

Procurement teams can request a certificate of conformance, packing list, and commercial invoice for customs clearance. We ship from Xiamen, China via DHL Express, FedEx International, or sea freight depending on order volume and urgency. Lead time for in-stock units is typically 1–3 business days after payment confirmation.
