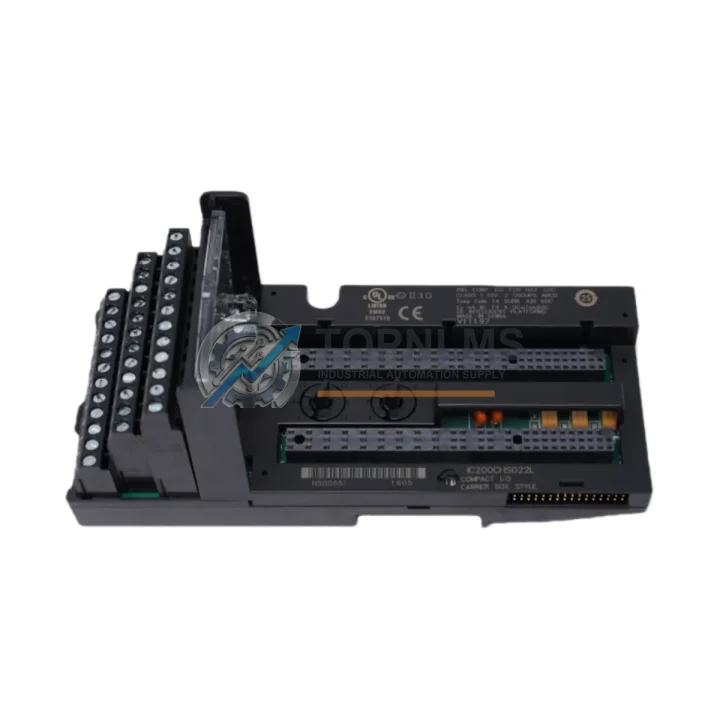

GE IC200CHS022L Ruggedized I/O Carrier Module for Harsh Environments

Product Overview

GE IC200CHS022L Ruggedized I/O Carrier Module for Harsh Environments

The GE Fanuc IC200CHS022L is a VersaMax Micro Compact I/O Carrier Module engineered for continuous, fault-tolerant operation in the most demanding industrial environments. Designed as a core backplane carrier within the GE VersaMax Micro PLC architecture, this module provides the structural and electrical foundation for mounting and interconnecting I/O expansion modules in high-vibration, high-temperature, and electromagnetically noisy plant floors. Whether deployed in a petrochemical processing unit, a coal preparation facility, or a municipal water treatment station, the IC200CHS022L delivers the mechanical rigidity and signal integrity that mission-critical automation demands.

Built to withstand ambient operating temperatures ranging from 0°C to 55°C, the IC200CHS022L maintains stable bus communication even under thermal cycling conditions common in steel mills and glass manufacturing lines. Its compact form factor is optimized for space-constrained control cabinets, yet it supports the full range of VersaMax Micro I/O modules — including digital input, digital output, analog input, and analog output cards — making it a versatile carrier for both greenfield installations and legacy system expansions.

In environments where electromagnetic interference (EMI) from variable frequency drives, large motor starters, and high-current switching equipment poses a constant threat to signal fidelity, the IC200CHS022L’s shielded backplane design and robust grounding architecture ensure that connected modules such as the IC200MDL640 16-point 24VDC digital input module and the IC200MDL741 16-point relay output module continue to operate without spurious trips or data corruption. This makes it an ideal carrier for control panels installed adjacent to high-power drives in cement plants and mining conveyors.

The module integrates seamlessly with the IC200UDR005 VersaMax Micro CPU, which serves as the master controller in many small-to-medium PLC applications. When paired with the IC200CBL500 expansion cable, the IC200CHS022L enables distributed I/O configurations across multiple carrier assemblies, extending the reach of the control system without sacrificing scan-cycle determinism. For applications requiring Profibus DP or DeviceNet communication, the carrier supports the attachment of the IC200BEM003 network interface module, enabling seamless integration into plant-wide DCS architectures.

In oil and gas upstream facilities and offshore platforms where dust ingress and humidity are persistent concerns, the IC200CHS022L’s sealed connector interface and conformal-coating-compatible design protect the backplane bus from corrosive atmospheres. Paired with an appropriate industrial enclosure and the IC200PWR002 24VDC power supply module, the assembly meets the environmental protection requirements for Zone 2 classified areas when installed with appropriate barriers and isolators.

For power generation and substation automation applications, the IC200CHS022L supports the connection of IC200ALG260 analog input modules used for monitoring current transformers and voltage transducers. Its deterministic I/O scanning ensures that protection relay logic executed on the VersaMax Micro CPU responds within the required time windows, supporting grid stability and equipment protection functions. In water and wastewater treatment plants, the same carrier hosts analog output modules such as the IC200ALG320 to drive 4–20 mA signals to control valve positioners and pump speed references.

Replacement and spare-parts procurement is a critical consideration for plant maintenance teams operating aging GE VersaMax Micro installations. The IC200CHS022L is a direct form-fit-function replacement for earlier carrier revisions, ensuring backward compatibility with existing wiring harnesses and module populations. TOPNLMS maintains verified stock of this module, sourced from authorized distribution channels, and each unit undergoes functional verification testing prior to shipment — including bus continuity checks, connector integrity inspection, and visual examination for physical damage.

Rugged Specifications Table

Comprehensive Protection Solutions

A reliable automation system is never built around a single component. The IC200CHS022L serves as the structural backbone for a complete VersaMax Micro I/O assembly, and its value is fully realized when integrated with a carefully selected suite of protection, control, and communication modules. In a typical control cabinet for a continuous production line, the carrier hosts digital input modules such as the IC200MDL640 for field device status monitoring, alongside relay output modules like the IC200MDL741 for actuator control — both of which depend on the carrier’s stable backplane bus for deterministic data exchange with the CPU.

For process industries requiring analog signal conditioning, the IC200ALG260 analog input module and IC200ALG320 analog output module mount directly onto the IC200CHS022L, enabling closed-loop PID control of temperature, pressure, flow, and level variables. In safety-instrumented system (SIS) architectures, the carrier can be positioned adjacent to dedicated safety relay modules and emergency stop circuits, with the VersaMax Micro CPU executing safety logic that monitors inputs from pressure switches, gas detectors, and flame scanners.

Communication resilience is maintained through the IC200BEM003 Profibus DP network interface module, which allows the VersaMax Micro system to participate in plant-wide DCS networks alongside Siemens S7 controllers, ABB AC800M systems, and Honeywell Experion nodes. Industrial Ethernet connectivity can be extended via the IC200ETM001 Ethernet interface module, enabling remote monitoring and diagnostics through SCADA platforms. The IC200CBL500 expansion cable links multiple IC200CHS022L carriers in distributed I/O configurations, supporting larger I/O point counts without requiring a second CPU.

Application in Critical Infrastructure

The GE IC200CHS022L has established a proven track record across the full spectrum of heavy industry and critical infrastructure applications. In oil and gas upstream and midstream facilities, it serves as the I/O carrier in wellhead control panels and pipeline SCADA RTUs, where it must tolerate wide temperature swings, vibration from pump jacks, and the corrosive effects of hydrogen sulfide atmospheres. Proper enclosure selection and cable management ensure the module operates reliably within these Zone 1 and Zone 2 classified environments.

In mining and mineral processing operations, the IC200CHS022L is deployed in conveyor belt control systems, crusher automation panels, and flotation cell controllers. The high dust loading and mechanical vibration characteristic of these environments place extreme demands on backplane connectors and module retention mechanisms — demands that the VersaMax Micro carrier is specifically designed to meet. In power generation facilities, including coal-fired, gas turbine, and hydroelectric plants, the module supports turbine governor control, boiler management, and auxiliary system automation, where continuous uptime is non-negotiable.

Water and wastewater treatment plants rely on the IC200CHS022L in pump station control panels and chemical dosing systems, where the module’s resistance to humidity and its compatibility with 4–20 mA analog I/O modules make it ideal for monitoring flow meters, pH sensors, and turbidity analyzers. In metallurgical and steel manufacturing facilities, the carrier operates in rolling mill automation and furnace temperature control systems, enduring the radiant heat and electromagnetic noise generated by large induction furnaces and thyristor drives.

Security & Quality FAQ

Q1: What warranty coverage does TOPNLMS provide for the IC200CHS022L?
Every IC200CHS022L shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This warranty covers manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund, with return shipping coordinated by our technical support team.

Q2: How is each unit tested before shipment?
All IC200CHS022L modules undergo a pre-shipment inspection protocol that includes visual examination for physical damage, connector pin integrity verification, backplane bus continuity testing, and cross-referencing of firmware revision labels against GE Fanuc documentation. Units that do not pass inspection are quarantined and not shipped. A test report is available upon request for critical infrastructure procurement.

Q3: Is the IC200CHS022L compatible with all VersaMax Micro I/O modules and CPUs?
Yes. The IC200CHS022L is fully compatible with the complete GE VersaMax Micro I/O module family, including digital input/output, analog input/output, and specialty modules. It is designed to work with VersaMax Micro CPUs including the IC200UDR005 and IC200UDR002. For legacy installations using earlier carrier revisions, the IC200CHS022L is a direct form-fit-function replacement, requiring no wiring modifications.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
TOPNLMS maintains a dedicated inventory of GE VersaMax Micro components, including the IC200CHS022L, to support both planned maintenance schedules and emergency breakdown situations. We offer expedited shipping to minimize plant downtime, with same-day dispatch available for in-stock items. Our technical team can assist with cross-referencing obsolete part numbers and identifying compatible alternatives when original parts are no longer available from the OEM.
