GE Fanuc IC697VAL134 Replacement for Series 90-70

Product Overview

GE Fanuc IC697VAL134 Replacement for Series 90-70: Seamless Migration & Smooth Transition

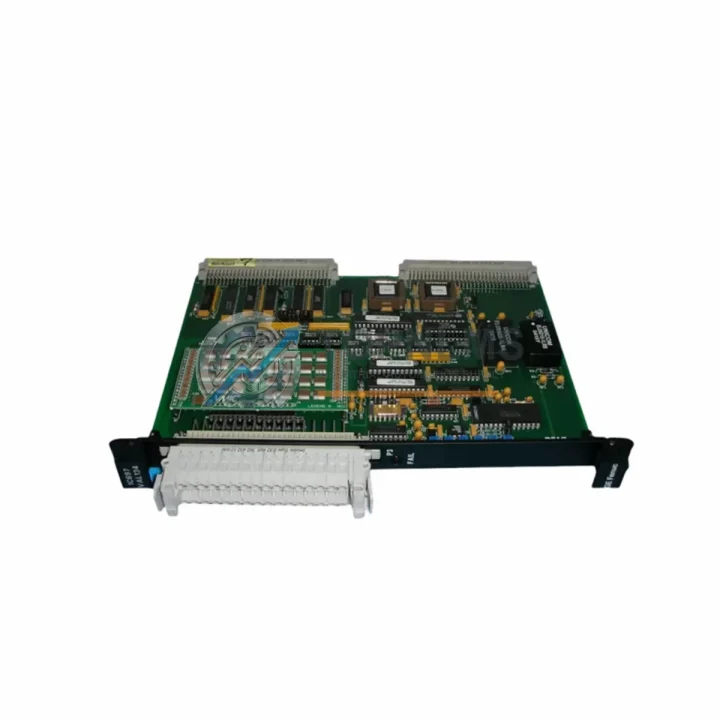

The GE Fanuc IC697VAL134 (also referenced as IC697VAL134/3801) is a 16-channel analog output module designed for the Series 90-70 PLC platform — one of GE Fanuc’s most widely deployed industrial control architectures across power generation, oil & gas, water treatment, and discrete manufacturing. As the Series 90-70 platform approaches end-of-life and spare parts become increasingly scarce, facilities engineers and maintenance teams are actively seeking verified replacement units that preserve existing wiring infrastructure, rack geometry, and control program logic without requiring a full system redesign.

TOPNLMS supplies tested, ready-to-ship IC697VAL134 replacement modules sourced from verified industrial channels. Each unit undergoes pre-shipment functional verification and ships with a 12-month warranty, giving procurement teams the confidence to plan maintenance windows and emergency replacements with minimal operational risk.

Compatibility Comparison Table

Seamless Upgrade Solutions

Migrating from a degraded or discontinued Series 90-70 analog output configuration involves more than swapping a single module. A complete and reliable retrofit typically requires coordinating several interdependent components within the same rack and control cabinet.

When replacing the IC697VAL134, engineers frequently address the condition of adjacent modules in the same IC697CHS750 or IC697CHS782 rack. The CPU module — commonly an IC697CPX935 or IC697CPX928 — should be evaluated for firmware compatibility with the replacement AO module, particularly if the system has been running legacy Logicmaster 90 configurations that have not been migrated to Proficy Machine Edition. In many retrofit projects, the IC697CMM742 Ethernet Interface Module is added or upgraded simultaneously to enable remote monitoring and SRTP-based SCADA integration, replacing older serial-based communication handled by the IC697CMM711 SNP module.

Power integrity is a common failure point in aging Series 90-70 systems. The IC697PWR711 or IC697PWR724 power supply modules should be inspected and replaced if capacitor aging is suspected, as unstable rack power is a leading cause of analog output drift and module faults. Replacing the power supply alongside the IC697VAL134 during a planned maintenance window eliminates a second unplanned outage.

On the field wiring side, the IC697VAL134 uses a screw-terminal field wiring interface. If the existing terminal block shows corrosion or loose connections — common in installations over 10 years old — replacing the terminal assembly during the same maintenance window prevents signal noise on the 4–20 mA output loops. Signal isolators or loop-powered barriers may also be introduced at this stage to protect the new module from field-side transients, particularly in environments with variable-frequency drives or high-inductive loads nearby.

For facilities planning a broader migration from Series 90-70 to a modern PAC platform such as the GE Automation & Controls RX3i (IC695 series), the IC697VAL134 replacement serves as a bridge solution — maintaining production continuity while the parallel RX3i rack is configured, programmed, and tested offline. The IC695ALG728 analog output module in the RX3i platform offers a functional migration path with expanded channel density and enhanced diagnostics, but the IC697VAL134 remains the correct choice for any site that must maintain the existing Series 90-70 architecture without a full cutover.

HMI integration should also be reviewed during the upgrade. Many Series 90-70 installations use legacy QuickPanel or CIMPLICITY-based operator interfaces communicating via SNP or Ethernet. Verifying that the HMI tag database correctly maps to the AO module’s reference addresses after replacement prevents post-commissioning alarm and display errors.

Retrofit Guidance FAQ

Q: Can I replace the IC697VAL134 without modifying my existing ladder logic program?
A: Yes. The IC697VAL134 is a direct slot-for-slot replacement. The module’s I/O reference addresses (%AQ) are preserved in the hardware configuration. As long as the replacement module is configured with the same I/O map in Proficy Machine Edition or Logicmaster 90, no program changes are required.

Q: Is rewiring necessary when installing the replacement module?
A: No rewiring is required. The IC697VAL134 uses the same screw-terminal field wiring interface as the original. Technicians should inspect terminal torque and wire condition during installation, but the wiring layout and pinout are identical.

Q: What communication protocols does the IC697VAL134 support?
A: The IC697VAL134 communicates via the Series 90-70 VME backplane I/O bus — it does not have an independent network interface. System-level communication (Ethernet/IP, SRTP, SNP, Modbus) is handled by dedicated communication modules such as the IC697CMM742 or IC697CMM711 in the same rack.

Q: Will the replacement module fit in my existing rack and control cabinet?
A: Yes. The IC697VAL134 occupies a single slot in the IC697CHS750 or IC697CHS782 rack. No cabinet modification, DIN rail change, or additional mounting hardware is required.

Q: How do I verify the replacement module is functioning correctly after installation?
A: After seating the module and powering the rack, use Proficy Machine Edition or a compatible programmer to force analog output reference values and verify the corresponding 4–20 mA or 0–10 VDC signals at the field terminals with a calibrated loop tester. Check the module’s status LEDs and the CPU fault table for any hardware configuration mismatches.

Q: What if my system uses a discontinued CPU that is no longer programmable?
A: TOPNLMS can advise on compatible CPU replacement options within the Series 90-70 family. Contact our technical team at [email protected] for application-specific guidance.

Warranty Assurance

Every IC697VAL134 replacement module shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a functional verification process that includes power-on testing, backplane interface checks, and analog output signal validation across all 16 channels. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the customer’s preference and the nature of the fault. Our after-sales response target is within 24 business hours of a reported issue. Customers are not required to return the defective unit before a replacement is dispatched for critical production applications — contact our team to arrange expedited warranty fulfillment.

Procurement teams can request a test report or inspection certificate for quality assurance documentation purposes. We support purchase orders, proforma invoices, and standard B2B procurement workflows. Stock availability is confirmed at time of order, and lead times for in-stock units are typically 3–7 business days for international shipments from Xiamen, China.

For volume orders, blanket purchase agreements, or emergency same-day quotation requests, contact TOPNLMS directly:

• Email: [email protected]
• Phone/WhatsApp: +86 18359293191
• Website: https://topnlms.com
