GE Fanuc IC695HSC304-DA Ruggedized Counter Module for Harsh Environments

Product Overview

GE Fanuc IC695HSC304-DA Ruggedized Counter Module for Harsh Environments

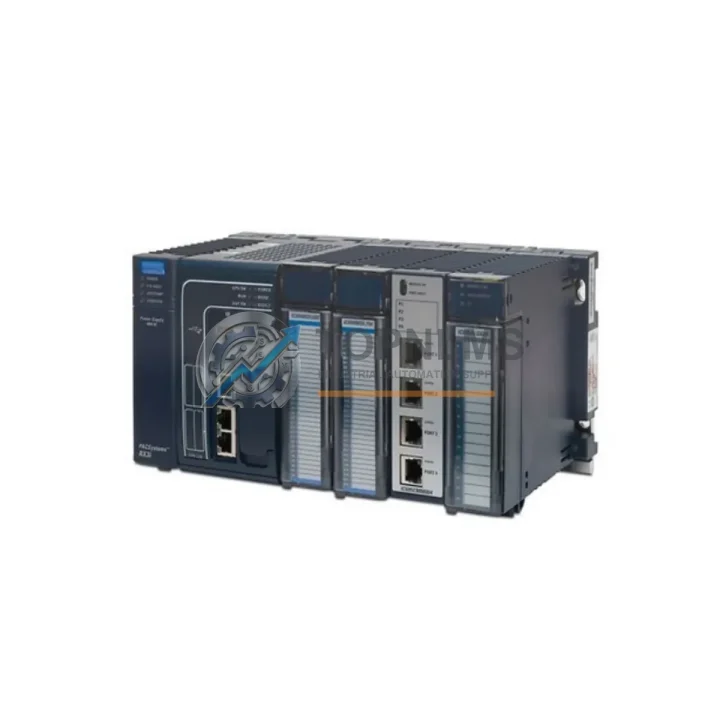

The GE Fanuc IC695HSC304-DA is a 4-channel high-speed counter module engineered for the PACSystems RX3i platform, purpose-built to deliver unwavering pulse-counting accuracy in the most demanding industrial environments. Whether deployed on a high-speed packaging line, a continuous steel rolling mill, a petrochemical processing unit, or a mine hoist control system, this module maintains deterministic performance where conventional I/O hardware fails. Its ruggedized design addresses the core challenges of industrial field deployment: wide operating temperature ranges, high-humidity atmospheres, airborne particulate contamination, mechanical vibration, and intense electromagnetic interference — all without compromising counting fidelity or system uptime.

Designed as a native backplane module for the IC695 series rack, the IC695HSC304-DA integrates seamlessly into existing PACSystems RX3i architectures. It supports quadrature encoder inputs, pulse/direction signals, and up-count/down-count configurations, making it equally suited for rotary encoder feedback on servo axes, flow metering in process plants, and position tracking on conveyor systems. The module’s onboard signal conditioning and noise filtering circuitry ensure reliable edge detection even in environments saturated with variable-frequency drive (VFD) switching noise, contactor chatter, and high-voltage bus transients — conditions that routinely corrupt data on lesser hardware.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC695HSC304-DA does not operate in isolation — it is one critical node in a broader PACSystems RX3i control architecture designed for resilience. In a typical heavy-industry control cabinet, this counter module works in concert with the IC695CPE310 or IC695CPE330 CPU module, which executes the ladder logic and function block programs that interpret counter data and trigger protective interlocks. Backplane power is supplied by the IC695PSA040 or IC695PSD040 power supply modules, which provide regulated, noise-filtered DC rails essential for stable high-frequency counting operations.

On the I/O side, the counter module is commonly paired with IC695MDL654 discrete output modules for driving actuators, solenoids, and relay coils based on count thresholds. For analog process variables — temperature, pressure, flow — the IC695ALG600 or IC695ALG616 analog input modules share the same RX3i rack, enabling unified process control from a single CPU scan. Where safety-rated interlocking is required, the system integrates with dedicated safety PLCs or safety relay modules such as the IC695ETM001 Ethernet communications module, which enables the RX3i rack to participate in PROFINET or EtherNet/IP networks for supervisory SCADA connectivity.

In applications involving variable-speed drives, the IC695HSC304-DA’s robust EMI filtering is particularly valuable. VFDs such as those in the AB PowerFlex or Siemens SINAMICS families generate significant high-frequency switching noise on both power and signal lines. The counter module’s differential input architecture and onboard filtering reject this common-mode noise, preserving encoder pulse integrity even when encoder cables run parallel to VFD output cables in shared cable trays. Terminal modules such as the IC694TBB032 or equivalent field-wiring terminal bases provide clean, organized field connections that further reduce noise ingress at the wiring interface.

Application in Critical Infrastructure

The IC695HSC304-DA has established a strong track record across critical infrastructure sectors where unplanned downtime carries severe operational and safety consequences.

Oil & Gas: In upstream and midstream facilities, the module monitors pump stroke counters, pipeline pig passage detectors, and compressor revolution counters. Its ability to operate reliably in high-humidity, H2S-laden atmospheres — common in offshore platforms and gas processing plants — makes it a preferred choice for safety instrumented system (SIS) support applications where encoder feedback must remain accurate under all process conditions.

Mining & Minerals Processing: Hoist control systems, conveyor belt speed monitoring, and crusher rotation tracking all demand high-frequency pulse counting with zero missed edges. The IC695HSC304-DA’s vibration-resistant design, compliant with IEC 60068-2-6, ensures that the mechanical shock and vibration inherent to underground mining and surface crushing operations do not induce counting errors or module resets.

Power Generation & Utilities: Turbine speed monitoring, generator synchronization feedback, and cooling water flow metering in thermal and hydroelectric power plants rely on precise pulse counting. The module’s wide operating temperature range accommodates the elevated ambient temperatures found in turbine halls and switchgear rooms, while its EMC compliance ensures immunity to the strong magnetic fields generated by large generators and transformers.

Water & Wastewater Treatment: Flow totalizers, pump revolution counters, and UV dose monitoring systems in municipal water treatment plants benefit from the module’s long-term reliability and low maintenance requirements. In these facilities, continuous 24/7 operation is mandatory, and the IC695HSC304-DA’s proven MTBF characteristics support multi-year deployment without module replacement.

Metallurgy & Steel: Rolling mill speed synchronization, coiler tension control, and slab position tracking in steel plants expose control hardware to extreme heat, metallic dust, and intense electromagnetic fields from induction furnaces. The IC695HSC304-DA’s ruggedized construction and differential signal inputs provide the noise immunity necessary to maintain accurate speed and position feedback in these environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If the module fails to perform to GE Fanuc’s published specifications within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty does not cover damage resulting from incorrect installation, overvoltage events, or physical mishandling.

Q2: How is each unit tested before shipment?
Every IC695HSC304-DA unit undergoes pre-shipment functional verification, including power-on self-test confirmation, backplane communication check, and visual inspection for physical integrity. Units sourced from authorized distribution channels are verified against GE Fanuc’s original part numbering and revision markings. Counterfeit screening is part of our standard incoming inspection process.

Q3: Is this module compatible with my existing PACSystems RX3i rack and CPU?
Yes. The IC695HSC304-DA is compatible with all standard IC695 series racks (7, 12, and 16-slot configurations) and all PACSystems RX3i CPUs, including the IC695CPE302, CPE305, CPE310, CPE330, and CPE400. It is configured via Proficy Machine Edition (PME) software and requires no additional hardware adapters. If you are upgrading from an earlier IC693 Series 90-30 system, please contact us to confirm migration compatibility.

Q4: Can you support long-term or repeat procurement for this module?
Yes. TOPNLMS maintains stock of IC695HSC304-DA and other PACSystems RX3i modules to support both emergency replacement and planned maintenance procurement. We can provide lead-time commitments, blanket order arrangements, and technical documentation support for MRO and capital project purchasing teams. Contact us directly to discuss volume pricing and availability scheduling.
