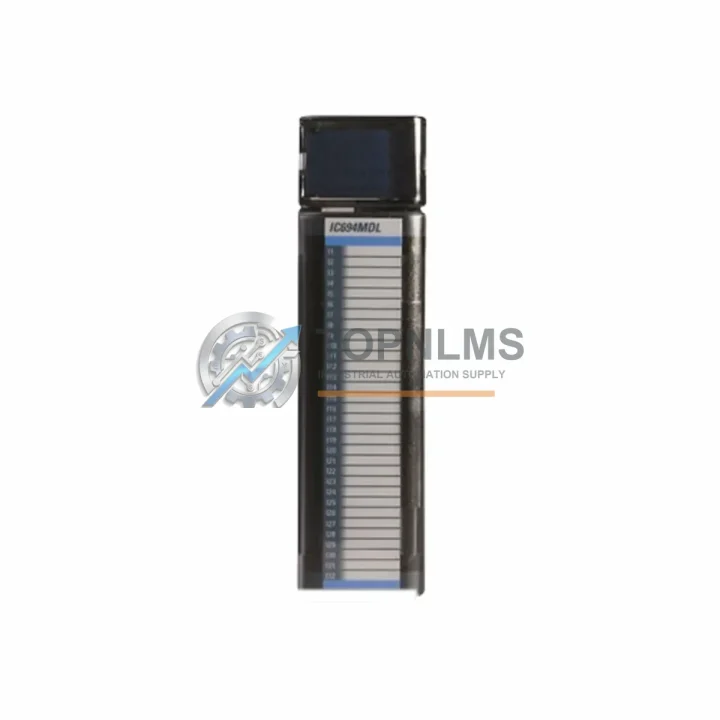

GE Fanuc IC694MDL645C Original Industrial Spare RX3i Compatible

Product Overview

GE Fanuc IC694MDL645C Original Industrial Spare RX3i Compatible: System Stability Through Verified Spare Parts

In high-availability manufacturing environments, unplanned downtime caused by a failed discrete input module can cascade into hours of lost production. The GE Fanuc IC694MDL645C is a 16-channel, 24VDC digital input module engineered for the PACSystems RX3i control platform — one of the most widely deployed PLC architectures in process automation, discrete manufacturing, and utility control systems worldwide. Sourcing an original, tested replacement unit before failure occurs is the single most effective strategy for protecting system uptime.

At TOPNLMS, every IC694MDL645C unit is sourced from verified supply channels, functionally tested prior to shipment, and backed by a 12-month warranty. Whether you are responding to an emergency breakdown, building a preventive maintenance spare kit, or extending the operational life of an aging RX3i rack, this module ships ready to install.

Critical Technical Specs

Preventive Maintenance Strategy for PACSystems RX3i Control Cabinets

A disciplined preventive maintenance program for any RX3i-based control system extends well beyond replacing a single input module. When a technician opens the control cabinet to inspect or replace the IC694MDL645C, it is the optimal moment to audit the health of the entire I/O rack and associated field wiring infrastructure.

Begin with the IC694CHS392 or IC694CHS398 backplane — the mechanical and electrical backbone of the RX3i rack. Inspect the backplane connectors for oxidation, bent pins, or heat discoloration. A compromised backplane can cause intermittent faults across multiple modules simultaneously, making root-cause diagnosis extremely difficult. If the backplane is more than 10 years old in a high-vibration or high-humidity environment, stocking a spare is strongly recommended.

Next, evaluate the IC694PWR330 or IC694PWR331 power supply module. Input module faults are frequently misdiagnosed when the actual root cause is an aging power supply delivering marginal voltage under load. Measure output voltage under full rack load and compare against specification. A spare power supply module should be part of every RX3i maintenance kit.

While the I/O rack is accessible, inspect the IC694MDL654 or IC694MDL655 digital output modules in the same cabinet. Output modules in the same control loop as the IC694MDL645C share the same field wiring harness and terminal blocks. Loose terminal connections, corroded contacts, or degraded output transistors can cause field device faults that are incorrectly attributed to the input module. Cleaning and re-torquing terminal connections at this stage prevents future nuisance faults.

For systems using analog process signals alongside discrete I/O, inspect the IC694ALG220 or IC694ALG221 analog input modules. Analog modules in mixed I/O racks are sensitive to ground loops introduced by deteriorating cable shielding. If the IC694MDL645C replacement is being performed due to erratic input readings, verify that field cable shields are properly terminated at one end only and that no ground potential differences exist between field devices and the PLC cabinet.

Communication integrity is equally critical. The IC694CMM302 Ethernet interface module or IC694BEM331 Genius Bus Controller — depending on your network topology — should be inspected for firmware currency and connector integrity. A communication module fault can mask I/O module status in the programming software, leading to misdiagnosis. Confirm that the CPU, such as the IC694CPU310 or IC694CPU315, is reading all module status correctly after the IC694MDL645C replacement is complete.

Finally, review the field-side infrastructure: terminal blocks, fuse modules, and signal isolators connected to the 16 input channels. Each input channel should be verified with a calibrated test signal after module replacement. Fuse modules protecting the 24VDC field supply should be inspected for signs of thermal stress, and any blown or discolored fuses replaced as a set rather than individually.

Strategic Replacement Solutions

The IC694MDL645C has been in production for over two decades, and many facilities are operating RX3i systems that were commissioned in the early 2000s. GE Fanuc’s transition to the Emerson brand has not disrupted parts availability, but lead times for new production units can extend to 8–16 weeks through standard distribution channels. Maintaining one or two IC694MDL645C units in your on-site spare parts inventory eliminates this lead-time risk entirely.

For facilities managing multiple RX3i racks across different production lines, a centralized spare parts strategy — where a single pool of IC694MDL645C modules serves multiple lines — reduces total inventory cost while maintaining coverage. This approach is particularly effective when combined with a documented module swap procedure that allows maintenance technicians to perform replacements without requiring a controls engineer on-site.

The IC694MDL645C is backward-compatible with earlier IC694 series backplanes and is fully supported by Proficy Machine Edition programming software. No firmware updates or hardware configuration changes are required when replacing a like-for-like unit. The module’s removable terminal block design means field wiring can be transferred to the replacement unit in under five minutes, minimizing mean time to repair (MTTR) during an unplanned outage.

For facilities considering a phased migration from older IC693 series hardware to the RX3i platform, the IC694MDL645C serves as a direct upgrade path, offering improved noise immunity and higher input density compared to legacy IC693MDL645 modules, while maintaining compatibility with existing 24VDC field wiring.

Support FAQ

Q1: Is this IC694MDL645C an original GE Fanuc unit or a third-party compatible replacement?
All IC694MDL645C units supplied by TOPNLMS are original GE Fanuc (Emerson) manufactured modules sourced from verified industrial supply channels. We do not supply counterfeit, refurbished-without-disclosure, or third-party compatible substitutes. Each unit is individually tested for electrical functionality before shipment.

Q2: What does the 12-month warranty cover, and what is the claims process?
The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions as specified in the GE Fanuc IC694MDL645C datasheet. If a module fails within the warranty period, contact us at [email protected] with your order number and a description of the fault. We will arrange replacement or refund within 5 business days of fault confirmation.

Q3: How do I verify compatibility with my existing PACSystems RX3i rack before installation?
The IC694MDL645C is compatible with all IC694CHS series backplanes (7-slot, 12-slot, and universal). Confirm your backplane model number from the rack label. No special configuration is required in Proficy Machine Edition — the module is auto-detected by the CPU. If you are replacing a revision A or B unit with a revision C unit, no software changes are needed as the module is fully backward-compatible.

Q4: What is your typical lead time and shipping process?
In-stock units ship within 1–3 business days of order confirmation. Each module is tested, anti-static packaged, and shipped with a test report. We support worldwide shipping with DHL, FedEx, and UPS express options. For urgent breakdown situations, contact us directly at +86 18359293191 to arrange priority dispatch.
