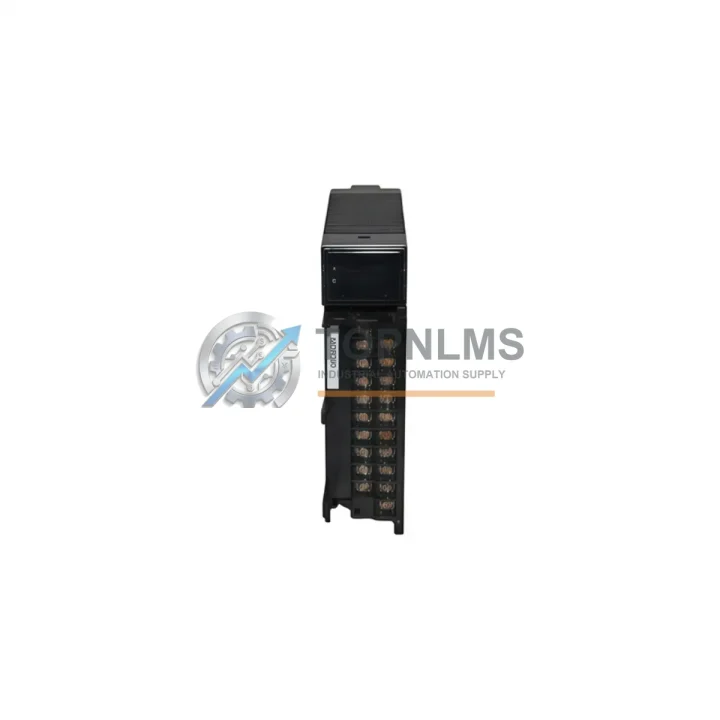

GE Fanuc IC693MDR390 Ruggedized Relay Output Module for Harsh Environments

Product Overview

GE Fanuc IC693MDR390 Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The GE Fanuc IC693MDR390 is a mixed discrete I/O relay output module engineered for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in global industrial automation. Designed to operate reliably under the demanding conditions found in heavy industry, the IC693MDR390 delivers stable relay switching performance in environments characterized by high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference (EMI). Whether installed in a petrochemical control cabinet, a mining conveyor system, or a continuous steel rolling line, this module is built to sustain mission-critical output control without compromise.

The IC693MDR390 provides 16 discrete relay outputs capable of switching both AC and DC loads, making it a versatile choice for controlling solenoid valves, motor starters, pilot lights, alarm relays, and other field devices common in process and discrete manufacturing environments. Its relay contact architecture provides inherent galvanic isolation between the PLC logic and field wiring, a critical safety feature in installations where ground loops, voltage transients, or fault currents could otherwise propagate into the controller backplane.

In high-vibration environments such as compressor stations, offshore platforms, and heavy press lines, the IC693MDR390’s robust PCB construction and conformal coating options ensure that solder joints and connector interfaces maintain integrity over extended service cycles. The module slots directly into any Series 90-30 5-slot, 10-slot, or expansion rack, and is fully compatible with the IC693CPU364, IC693CPU374, and IC693CPU392 central processing units, as well as the IC693PWR321 and IC693PWR330 power supply modules that provide regulated 5 VDC backplane power.

For system architects designing fault-tolerant control architectures, the IC693MDR390 integrates seamlessly with the Series 90-30 hot standby redundancy configurations. When paired with the IC693RCM300 redundancy communication module and a secondary CPU rack, the relay output module continues to execute output commands during CPU switchover events, ensuring uninterrupted process control in applications where downtime carries significant safety or financial consequences.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693MDR390 does not operate in isolation — it is one component within a carefully engineered control architecture. In a typical Series 90-30 control cabinet, the relay output module works in concert with the IC693MDL654 32-point discrete input module to form a complete I/O subsystem, receiving field sensor signals and driving output actuators in a coordinated control loop. The IC693ALG222 analog input module handles process variable signals from temperature transmitters and pressure transducers, feeding data to the CPU while the IC693MDR390 executes the corresponding relay switching commands.

For communication-intensive installations, the IC693MDR390 rack is typically paired with the IC693CMM321 communications coprocessor module, which supports Modbus RTU and ASCII protocols for integration with SCADA systems, HMI panels, and third-party DCS platforms. In Profibus DP networks, the IC693PBM200 Profibus master module enables the Series 90-30 rack to communicate with distributed I/O nodes, variable frequency drives, and intelligent field devices across the plant floor.

Power integrity is foundational to relay output reliability. The IC693PWR330 high-capacity power supply module provides stable 5 VDC backplane power with sufficient current headroom for fully populated racks, ensuring that relay coil energization is consistent even under peak load conditions. For installations requiring UPS-backed control power, the IC693MDR390 rack is commonly integrated with industrial 24 VDC power supplies from the same control cabinet, providing ride-through capability during brief utility interruptions.

In safety-instrumented system (SIS) architectures, the IC693MDR390 relay outputs are often used as the final control element interface, driving safety relays and solenoid valve actuators that are independently monitored by a dedicated safety PLC or safety relay module. This layered approach — combining the Series 90-30 basic process control system with a separate safety layer — is consistent with IEC 61511 functional safety practices for process industries.

Application in Critical Infrastructure

The GE Fanuc IC693MDR390 has established a proven track record across the most demanding sectors of critical infrastructure. In oil and gas upstream and midstream operations, the module controls wellhead safety valves, pipeline isolation valves, and compressor station auxiliary systems where relay output reliability directly impacts both production continuity and personnel safety. Its galvanic isolation characteristics are particularly valued in hazardous area installations where intrinsically safe barriers and zener barriers are used to limit energy in Zone 1 and Zone 2 classified areas.

In mining and mineral processing, the IC693MDR390 manages conveyor belt motor starters, crusher interlock circuits, and ventilation fan controls in environments where coal dust, silica particulates, and high mechanical vibration are constant operational realities. The module’s relay contact architecture tolerates the inductive load switching demands of large motor starters without the derating concerns associated with transistor output modules.

Municipal and industrial water and wastewater treatment facilities rely on the Series 90-30 platform — and the IC693MDR390 specifically — to control pump motor starters, chemical dosing systems, and UV disinfection equipment. The module’s wide operating temperature range accommodates both heated indoor pump stations and unheated outdoor control enclosures in cold-climate installations.

In power generation and electrical utilities, the IC693MDR390 is deployed in auxiliary control systems for turbine generators, transformer cooling fans, and switchgear control panels. Its compatibility with both AC and DC load switching makes it suitable for the mixed-voltage environments typical of substation control rooms. Steel mills, aluminum smelters, and other metallurgical processing facilities use the module in rolling mill drive interlock systems and furnace atmosphere control applications where continuous 24/7 operation is the baseline expectation.

Security & Quality FAQ

Q1: What warranty coverage is provided with the IC693MDR390?
Every IC693MDR390 unit supplied by TOPNLMS is backed by a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. Warranty claims are processed promptly with replacement or repair options, minimizing your plant downtime exposure. Our warranty terms are documented and provided with each shipment.

Q2: How is each unit tested before shipment?
All IC693MDR390 modules undergo a multi-stage pre-shipment inspection protocol that includes visual inspection for physical damage, relay contact continuity testing, backplane connector integrity verification, and functional power-on testing in a Series 90-30 rack environment. Units that do not pass all test criteria are quarantined and not offered for sale. A test report is available upon request for quality-critical procurement processes.

Q3: Is the IC693MDR390 compatible with my existing Series 90-30 rack and CPU?
Yes. The IC693MDR390 is fully compatible with all standard Series 90-30 rack configurations, including 5-slot (IC693CHS391), 10-slot (IC693CHS392), and expansion racks. It is supported by all Series 90-30 CPU models from the IC693CPU311 through the IC693CPU392, and is configured using GE’s Proficy Machine Edition (formerly Logicmaster 90-30) programming software. No firmware modifications or special configuration steps are required for drop-in replacement of an existing IC693MDR390 in a running system.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains dedicated inventory of Series 90-30 I/O modules, CPUs, power supplies, and communication modules to support both planned maintenance programs and emergency breakdown replacement scenarios. We understand that legacy PLC platforms like the Series 90-30 remain in service for decades, and we are committed to providing reliable supply continuity for your installed base. For volume procurement, blanket order arrangements, and priority stock reservation, contact our technical sales team directly.
