GE Fanuc IC693MDL645 Replacement for Series 90-30

Product Overview

GE Fanuc IC693MDL645 Replacement for Series 90-30: Smooth Migration from Legacy Discrete Input Systems

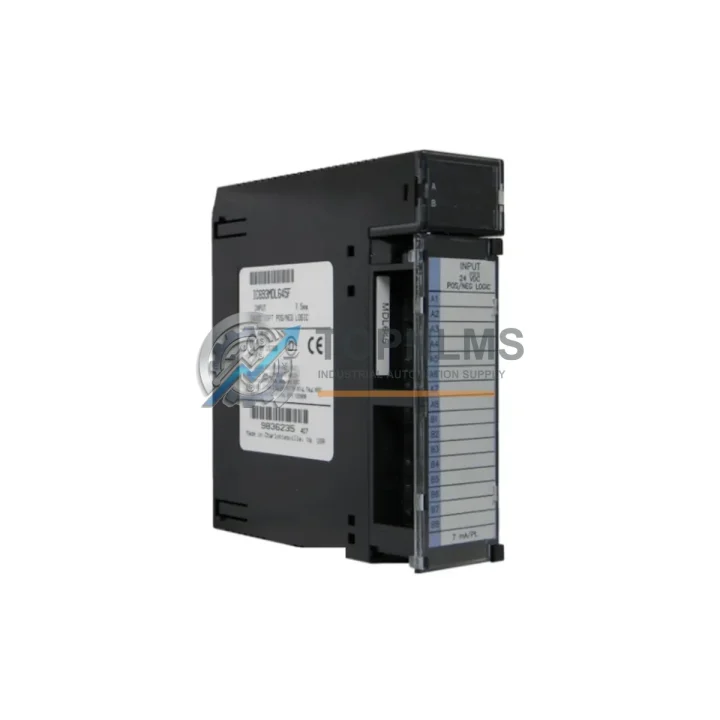

The GE Fanuc IC693MDL645 is a 24VDC, 16-point discrete input module designed for the Series 90-30 PLC platform — one of the most widely deployed programmable logic controller families in industrial automation. As facilities transition away from aging control architectures, the IC693MDL645 serves as a direct drop-in replacement or upgrade path for legacy discrete input modules that have reached end-of-life or are no longer supported under GE’s active maintenance program. Whether you are replacing a failed unit on the production floor, consolidating spare parts inventory, or executing a phased migration from an older Series 90-30 rack configuration, this module delivers the electrical compatibility, form factor, and communication behavior your existing system expects — without requiring ladder logic rewrites or hardware redesign.

Industrial facilities running Series 90-30 controllers often operate mixed-generation racks where modules from different production batches must coexist. The IC693MDL645 maintains backward compatibility with the IC693CPU364, IC693CPU374, and IC693CPU350 central processing units, accepting the same 24VDC sourcing input signals and presenting identical I/O addressing to the CPU. Field wiring connected to the original module’s terminal block can be transferred directly to the replacement unit without re-termination, provided the existing wiring meets the 24VDC nominal input voltage specification. This is a critical advantage in retrofit scenarios where minimizing downtime is the primary engineering constraint.

In systems where the IC693MDL645 is being used to replace an older IC693MDL640 or IC693MDL641 — earlier 24VDC discrete input variants in the same family — engineers should verify the input filter time constant settings in the CPU configuration. The IC693MDL645 supports configurable input filtering through the programming software, and mismatched filter settings between the old and new module can cause unexpected input behavior during commissioning. This is a common oversight during rapid replacement scenarios and is easily resolved through a brief configuration review in Proficy Machine Edition or the legacy Logicmaster 90 programming environment.

For facilities upgrading from a Series Six or Series Five PLC architecture to the Series 90-30 platform, the IC693MDL645 represents the standard discrete input interface for 24VDC field devices including proximity sensors, limit switches, pushbuttons, and relay contacts. The migration from Series Six I/O racks to Series 90-30 baseplate assemblies such as the IC693CHS391 or IC693CHS397 requires physical remounting of modules and re-mapping of I/O references in the control program, but the field wiring infrastructure — conduit, cable trays, and terminal strips — can typically be reused without modification. This significantly reduces the civil and electrical installation cost of the migration project.

Power supply compatibility is another key consideration during Series 90-30 upgrades. The IC693MDL645 draws its operating power from the rack backplane, which is supplied by the system power supply module — typically an IC693PWR321 or IC693PWR330 unit. When adding or replacing discrete input modules in an existing rack, engineers should verify that the total backplane current draw does not exceed the power supply’s rated output. In high-density configurations where multiple IC693MDL645 modules are installed alongside analog input modules such as the IC693ALG221 or communication modules such as the IC693CMM321 Ethernet interface, a power budget calculation is essential before commissioning.

Communication protocol compatibility is inherent to the Series 90-30 architecture. The IC693MDL645 communicates with the CPU over the Series 90-30 backplane bus — a proprietary parallel bus that does not require separate configuration. However, in systems where the Series 90-30 controller is integrated into a broader SCADA or DCS network via Modbus RTU, Profibus DP, or GE’s own SRTP Ethernet protocol, the discrete input data from the IC693MDL645 is mapped into the CPU’s %I memory table and made available to the network master through the existing communication module configuration. No changes to the network layer are required when replacing a like-for-like module.

For applications where the Series 90-30 platform is being retired entirely in favor of a more modern controller — such as the GE Automation (now Emerson) PACSystems RX3i platform — the IC693MDL645 can serve as a bridge module during the transition period. The PACSystems RX3i supports a Series 90-30 compatibility mode through the IC695LRE001 remote expansion module, allowing existing Series 90-30 I/O racks, including those populated with IC693MDL645 discrete input modules, to be retained and controlled by the new RX3i CPU. This hybrid architecture is widely used in phased migration projects where replacing all field I/O simultaneously is not operationally feasible.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Series 90-30 migration or discrete input replacement typically involves more than a single module swap. In most field scenarios, the IC693MDL645 is installed alongside a range of complementary components that together form a complete and reliable control system. The IC693PWR321 or IC693PWR330 power supply module provides regulated backplane power to the rack and must be verified for adequate current capacity when adding new I/O modules. The IC693CHS391 five-slot baseplate and IC693CHS397 ten-slot baseplate are the standard rack assemblies that house the IC693MDL645 alongside CPU, communication, and analog modules.

For analog signal acquisition in the same control cabinet, the IC693ALG221 analog input module handles 4–20mA and 0–10V process signals and shares the same backplane bus as the IC693MDL645, making it a natural companion in mixed I/O applications. Communication to the plant network is typically handled by the IC693CMM321 Ethernet TCP/IP module or the IC693CMM311 serial communications module for legacy Modbus RTU networks. In applications requiring signal isolation between field devices and the PLC rack — particularly in high-noise industrial environments — DIN-rail mounted signal isolators and terminal blocks from the same control cabinet assembly are used to protect the IC693MDL645 inputs from transient voltages.

For facilities executing a full platform migration to PACSystems RX3i, the IC695CHS012 twelve-slot universal backplane and IC695CPU310 controller are the typical destination platform components, with the IC695LRE001 remote I/O expansion module enabling retention of existing Series 90-30 I/O racks during the transition. Programming cable IC693CBL316 or the USB-to-serial adapter equivalent is required for initial module configuration and firmware verification during commissioning.

Retrofit Guidance FAQ

Q: Can I transfer field wiring directly from the old module to the IC693MDL645?
A: Yes. The IC693MDL645 uses the same 40-pin connector and terminal block layout as other Series 90-30 16-point discrete input modules. Field wiring for 24VDC sourcing inputs can be transferred without re-termination. Verify wire labeling before disconnection to avoid cross-wiring errors during reinstallation.

Q: Do I need to modify my ladder logic program after replacing the module?
A: No program changes are required for a like-for-like replacement. The IC693MDL645 occupies the same rack slot and presents identical %I memory addresses to the CPU. If you are replacing an 8-point module (IC693MDL641) with this 16-point unit, you will need to update the hardware configuration in Proficy Machine Edition and verify that the additional 8 input addresses do not conflict with existing program logic.

Q: What communication protocols does the IC693MDL645 support?
A: The IC693MDL645 communicates exclusively over the Series 90-30 backplane bus. It does not have an independent network interface. Discrete input data is mapped to the CPU’s %I memory table and made available to external networks (Modbus, Profibus, SRTP Ethernet) through the CPU and communication modules already installed in the rack.

Q: Will the module fit in my existing rack without mechanical modification?
A: Yes. The IC693MDL645 conforms to the standard Series 90-30 module form factor and installs in any slot of an IC693CHS391 or IC693CHS397 baseplate. No mechanical modification to the rack or control cabinet is required.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power up the rack and observe the module’s LED indicators. The green PWR LED should illuminate, and the input status LEDs should reflect the state of connected field devices. Use Proficy Machine Edition or Logicmaster 90 to monitor %I addresses in real time and confirm that input states match field device conditions. Any fault conditions will be reported in the CPU fault table.

Q: What is the lead time and shipping arrangement?
A: Units are stocked and available for immediate dispatch from Xiamen, China. Standard international shipping via DHL, FedEx, or UPS Express is available with typical transit times of 3–7 business days to most destinations. Expedited same-day dispatch is available for orders confirmed before 14:00 CST.

Warranty Assurance

Every IC693MDL645 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each module undergoes a functional verification process including power-on testing, input channel continuity checks, and backplane connector inspection. Units that do not meet our quality standards are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Customers are required to return the defective unit for inspection. Return shipping costs for confirmed warranty defects are covered by TOPNLMS. Our after-sales response target is within 24 hours of claim submission on business days.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices upon request. All units are shipped in anti-static packaging with appropriate cushioning to prevent transit damage. Customs documentation for international shipments is prepared in compliance with the destination country’s import requirements.

TOPNLMS maintains stock of commonly requested Series 90-30 modules to support emergency replacement scenarios. If you require multiple units or have ongoing procurement needs, please contact our sales team to discuss volume pricing and consignment stock arrangements.
