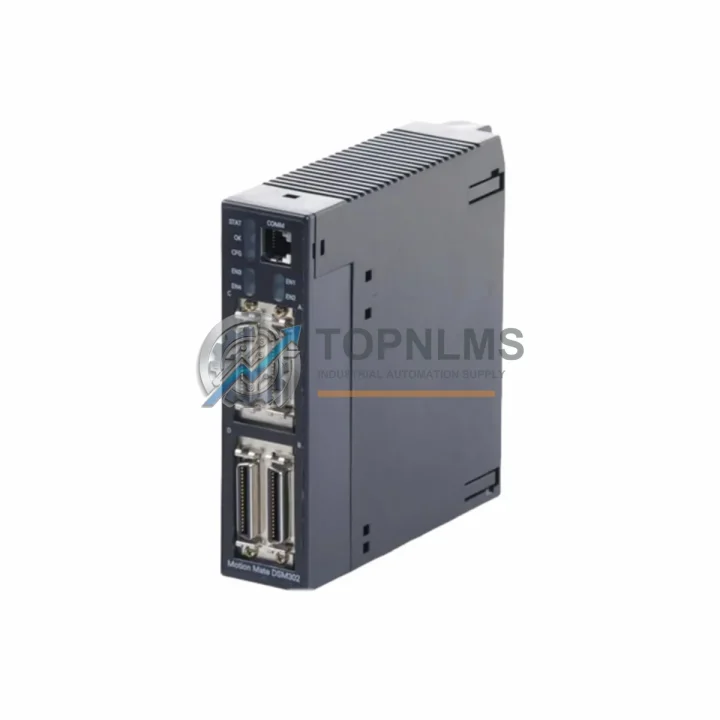

GE Fanuc IC693DSM302 Ruggedized Motion Control Module

Product Overview

GE Fanuc IC693DSM302 Ruggedized Dual-Axis Motion Control Module: Industrial Resilience for Harsh Environments

The GE Fanuc IC693DSM302 is a dual-axis Digital Servo Module (DSM) engineered for the GE Series 90-30 PLC platform — one of the most widely deployed programmable logic controller architectures in heavy industry. Designed to deliver precise, synchronized two-axis motion control in environments where temperature extremes, mechanical vibration, airborne particulates, and electromagnetic interference are daily operational realities, the IC693DSM302 represents a benchmark in ruggedized industrial motion control.

In continuous production lines — from automotive stamping presses to steel rolling mills — motion control modules must perform without interruption. The IC693DSM302 integrates directly into the Series 90-30 backplane alongside I/O modules such as the IC693MDL645 discrete output module and the IC693ALG222 analog input module, enabling tightly coordinated control loops that respond in real time to process feedback. Its dual-axis architecture allows simultaneous, independent control of two servo axes, reducing cabinet footprint and simplifying wiring in space-constrained control enclosures.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693DSM302 does not operate in isolation — it is a critical node within a broader Series 90-30 control architecture. In a typical heavy-industry control cabinet, it works in concert with the IC693CPU364 central processing unit, which handles ladder logic execution and coordinates data exchange across the backplane. Power integrity is maintained by the IC693PWR321 power supply module, which provides stable 5 V DC and 24 V DC rails even under fluctuating plant power conditions.

For applications requiring high-density discrete I/O — such as limit switch monitoring on servo-driven axes — the IC693MDL645 32-point output module and IC693MDL654 input module integrate seamlessly on the same rack. Where analog process variables such as speed references or torque feedback must be captured, the IC693ALG222 analog input module provides 16-channel resolution with noise filtering suited to electrically noisy environments.

In installations where the Series 90-30 system must communicate with upstream SCADA platforms or distributed control systems (DCS), the IC693CMM321 communications module supports Ethernet TCP/IP connectivity, while the IC693CMM302 provides serial communications for legacy Modbus RTU or SNP protocol integration. Safety-critical applications may also incorporate the IC693MDL940 relay output module for hardwired interlock circuits, ensuring that motion axes can be de-energized independently of the PLC scan cycle in emergency stop scenarios.

For facilities operating variable-frequency drives (VFDs) on the same power bus, proper grounding and shielding of the IC693DSM302’s encoder feedback cables is essential to prevent EMI-induced position errors. Terminal modules and shielded cable assemblies compatible with the Series 90-30 I/O bus further enhance signal integrity in high-vibration or high-dust environments such as mining conveyors or cement plant kilns.

Application in Critical Infrastructure

The IC693DSM302 has established a proven track record across the most demanding sectors of critical infrastructure:

Oil & Gas: In upstream drilling platforms and midstream pipeline compression stations, the IC693DSM302 controls servo-driven valve actuators and pump positioning systems. Its tolerance for wide temperature swings — from cold-start conditions in arctic environments to elevated ambient temperatures near compressor skids — makes it a reliable choice where module failure translates directly to production loss or safety risk.

Mining & Minerals Processing: Conveyor belt positioning, crusher feed control, and flotation cell agitator drives in copper, coal, and iron ore operations rely on precise, repeatable motion. The IC693DSM302’s vibration-rated design withstands the constant mechanical shock transmitted through structural steel in underground and open-pit mining environments.

Power Generation: Turbine governor control auxiliaries, fuel feed positioning, and cooling tower fan pitch control in thermal and hydroelectric power plants demand motion modules that maintain accuracy under continuous duty cycles. The Series 90-30 platform’s long service history in power generation makes the IC693DSM302 a trusted spare for aging installed bases.

Water & Wastewater Treatment: Pump station automation, chemical dosing systems, and sluice gate positioning in municipal water infrastructure benefit from the IC693DSM302’s ability to operate reliably in high-humidity environments with minimal maintenance intervention.

Metals & Metallurgy: Rolling mill drive coordination, ladle transfer car positioning, and continuous casting machine control in steel and aluminum plants place extreme demands on motion control hardware. The IC693DSM302’s dual-axis synchronization capability is particularly valuable in tandem-drive applications where axis mismatch would result in product defects or equipment damage.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a module fails within the warranty period, contact us at [email protected] with your order reference and a description of the fault. We will arrange a replacement or repair at no additional cost, including return shipping coordination.

Q2: How is each IC693DSM302 tested before shipment?
Every unit undergoes a multi-stage inspection process: visual inspection for physical damage, power-on functional verification, backplane communication test, and axis command response validation. Modules that do not pass all stages are quarantined and not offered for sale. A test report summary is available upon request for critical procurement applications.

Q3: Is this module compatible with all Series 90-30 CPU and rack configurations?
The IC693DSM302 is compatible with all standard Series 90-30 5-slot, 10-slot, and expansion racks. It is supported by CPU modules including the IC693CPU364, IC693CPU374, and IC693CPU352, and is programmed via GE Proficy Machine Edition or the legacy Logicmaster 90-30 software. If you are integrating into a non-standard rack configuration or a mixed-series architecture, contact our technical team for compatibility confirmation before ordering.

Q4: Can long-term supply continuity be guaranteed for ongoing maintenance programs?
Yes. TOPNLMS maintains dedicated inventory of legacy GE Fanuc Series 90-30 modules to support long-term maintenance and capital spares programs. We understand that many Series 90-30 installations have operational lifespans extending 20+ years, and we actively source and stock modules to support these installed bases. Bulk pricing and reserved stock agreements are available for facilities managing multi-site or multi-unit maintenance schedules — contact us to discuss your requirements.
