GE Fanuc IC693CHS397 Ruggedized PLC Baseplate for Harsh Environments

Product Overview

GE Fanuc IC693CHS397 Ruggedized PLC Baseplate for Harsh Environments

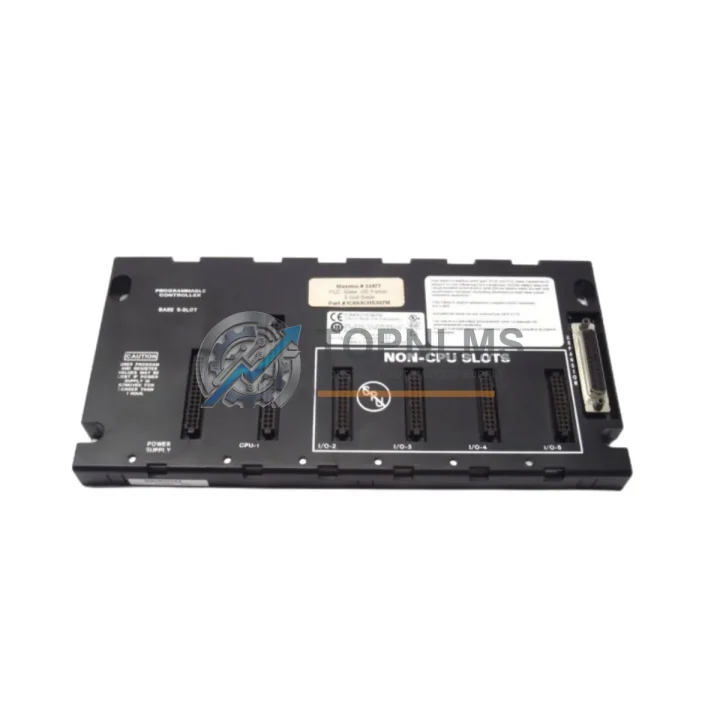

The GE Fanuc IC693CHS397 is a 5-Slot CPU Baseplate engineered for the Series 90-30 programmable logic controller platform — one of the most widely deployed control architectures in global industrial automation. Designed to anchor mission-critical control systems in environments where failure is not an option, the IC693CHS397 delivers the structural integrity, electrical reliability, and thermal resilience demanded by continuous-process industries. Whether installed in a petrochemical control cabinet, a mining conveyor system, or a municipal water treatment facility, this baseplate provides the stable backbone that keeps your entire PLC rack operational under sustained mechanical stress, elevated temperatures, and aggressive electromagnetic interference.

At TOPNLMS, every IC693CHS397 unit is sourced through verified supply channels, individually inspected prior to dispatch, and backed by a 12-month replacement warranty — giving procurement engineers and maintenance teams the confidence to stock this critical spare without reservation.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC693CHS397 baseplate does not operate in isolation — it is the structural and electrical foundation of a complete Series 90-30 control system. In demanding industrial environments, the reliability of the entire rack depends on the integrity of every component seated within it. The IC693CPU364 CPU module, for example, delivers high-speed ladder logic execution and peer-to-peer communications, and its performance is only as stable as the backplane it rides on. Similarly, analog input modules such as the IC693ALG221 and IC693ALG222 require a noise-free backplane connection to deliver accurate 4–20 mA signal conditioning in environments with heavy motor-drive interference.

In high-vibration installations — such as compressor stations or rolling mill control panels — the IC693CHS397’s robust mechanical construction prevents the micro-arcing and intermittent contact failures that plague lesser baseplates. Discrete I/O modules like the IC693MDL645 (24 VDC input) and IC693MDL741 (relay output) depend on this stable seating to maintain deterministic scan-cycle response times. For systems requiring expanded I/O capacity, the IC693CHS397 pairs directly with the IC693CHS398 10-slot expansion baseplate via IC693CBL300 or IC693CBL301 expansion cables, allowing engineers to scale the control architecture without compromising the rugged baseline established by the CPU rack.

Power integrity is equally critical. The IC693PWR321 and IC693PWR330 power supply modules mount directly into the baseplate’s dedicated power slot, providing regulated 5 VDC and 24 VDC backplane power with built-in overload protection. In facilities where power quality is poor — common in arc furnace environments or near large variable-frequency drives — these power supplies work in concert with the IC693CHS397’s grounded chassis to suppress conducted interference before it reaches sensitive CPU and communications modules. Communications modules such as the IC693CMM321 (Ethernet TCP/IP) and IC693CMM311 (serial communications) also benefit from the baseplate’s shielded backplane design, maintaining reliable SRTP and Modbus RTU connectivity even in electrically noisy substations.

Application in Critical Infrastructure

The GE Fanuc IC693CHS397 has earned its place in some of the world’s most demanding industrial installations. In upstream oil and gas operations, Series 90-30 racks built on the IC693CHS397 baseplate manage wellhead safety shutdown logic, controlling emergency isolation valves and monitoring downhole pressure transmitters in environments where ambient temperatures routinely exceed 50 °C and hydrocarbon vapors create persistent explosion risk. The baseplate’s robust construction and compatibility with intrinsically safe I/O modules make it a trusted platform for SIL-rated safety instrumented functions when integrated with appropriate safety barriers and certified I/O.

In coal and hard-rock mining, the IC693CHS397 is deployed in conveyor drive control panels subjected to constant vibration, coal dust infiltration, and wide temperature swings between surface and underground installations. Maintenance teams value the baseplate’s tool-free module insertion and extraction, which allows rapid hot-swap replacement of failed I/O modules during shift changes without requiring a full system shutdown — a critical advantage in continuous-mining operations where every minute of downtime translates directly to lost tonnage.

Municipal and industrial water and wastewater treatment facilities rely on Series 90-30 systems for SCADA-integrated pump station control, chemical dosing automation, and effluent monitoring. The IC693CHS397 baseplate supports long-term, low-maintenance operation in humid pump rooms and outdoor weatherproof enclosures, where condensation management and corrosion resistance are primary concerns. Its compatibility with the full range of Series 90-30 specialty modules — including the IC693APU300 high-speed counter and IC693PTM100 motion control module — means that a single baseplate platform can address both basic discrete control and advanced process automation within the same control cabinet.

In power generation and electrical substation environments, the IC693CHS397 supports generator excitation control, transformer protection relay interfacing, and switchgear automation. The baseplate’s grounded chassis and backplane shielding are essential in these high-voltage environments, where induced EMI from bus bars and switching transients can corrupt control signals in lesser-designed hardware. Long-term availability of the IC693CHS397 as a stocked spare part is particularly valued by power utilities operating aging Series 90-30 infrastructure, where the cost of a full control system upgrade far exceeds the investment in maintaining a reliable spare-parts inventory.
