GE Fanuc IC693CHS391M Replacement for Series 90-30

Product Overview

GE Fanuc IC693CHS391M Replacement for Series 90-30: Seamless Transition & Compatibility Upgrade

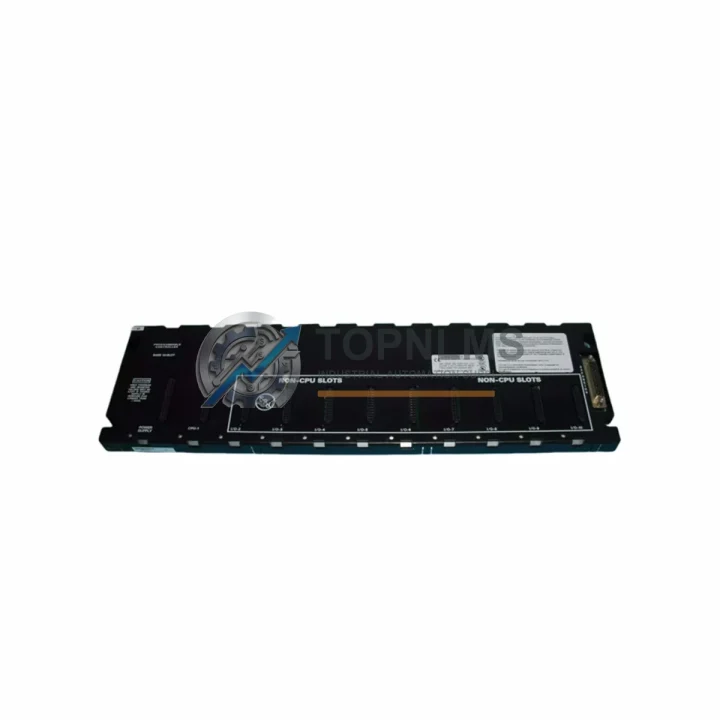

The GE Fanuc IC693CHS391M is a 10-slot baseplate designed for the Series 90-30 programmable logic controller platform — one of the most widely deployed mid-range PLC architectures in discrete manufacturing, process control, and utility automation. As original IC693CHS391M units reach end-of-life or become increasingly difficult to source through authorized channels, plant engineers and maintenance teams face mounting pressure to locate verified replacement hardware that preserves existing wiring infrastructure, rack geometry, and CPU-to-I/O communication integrity without triggering a full system redesign.

This listing provides a direct replacement and upgrade solution for the IC693CHS391M baseplate, sourced from verified inventory, pre-tested prior to shipment, and backed by a 12-month warranty. Whether you are replacing a failed baseplate in an emergency shutdown scenario or proactively building a spare-parts buffer for aging Series 90-30 installations, this unit ships ready for immediate rack installation.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC693CHS391M baseplate replacement rarely involves the baseplate alone. In practice, field engineers migrating from a failed or obsolete Series 90-30 rack must coordinate the reinstallation of all resident modules to ensure the system returns to full operational status with minimal downtime. The following components are commonly involved in the same retrofit or emergency replacement workflow:

The IC693CPU364 CPU module seats directly into slot 0 of the IC693CHS391M and is the most common processor paired with this 10-slot chassis in mid-complexity automation applications. If the baseplate failure was caused by a backplane short or power surge, the CPU should be bench-tested before reinstallation. Similarly, the IC693PWR321 power supply module — which mounts to the dedicated power slot on the left side of the baseplate — should be inspected for capacitor degradation, particularly in installations older than seven years.

For facilities running Ethernet-based SCADA or HMI connectivity, the IC693CMM321 communications module provides the TCP/IP interface that bridges the Series 90-30 backplane to plant-level networks. When replacing the baseplate, the CMM321’s configuration parameters — including IP address, subnet mask, and SRTP server settings — are retained in the module’s onboard memory and do not require reprogramming after physical reinstallation, provided the module itself was not damaged.

Discrete I/O modules such as the IC693MDL645 16-point 24VDC input module and the IC693MDL741 12/24VDC output module are typically reused from the original rack. Their field wiring terminates at removable terminal blocks, which means wiring continuity is preserved during baseplate swap — a critical advantage in time-sensitive maintenance windows. Analog I/O modules, including the IC693ALG221 analog input module, should be reseated carefully and verified against the original slot assignment documented in the machine’s I/O map.

In installations where the Series 90-30 rack communicates with remote I/O drops via Genius Bus, the IC693BEM331 Genius Bus Controller module must be reseated in its original slot position to maintain bus address continuity. Changing the slot position of the BEM331 without updating the hardware configuration in Proficy Machine Edition will cause a bus fault on startup. For sites using the older SNP or SNPx serial programming protocol, the IC693CMM311 serial communications module provides the RS-232/RS-485 interface required for legacy programmer connectivity.

Finally, for installations where the IC693CHS391M is used as an expansion chassis connected to a primary rack via the IC693CBL302 expansion cable, the cable and its connectors should be inspected for continuity and physical damage before the replacement baseplate is powered up. A faulty expansion cable is a common secondary cause of rack communication faults that can be misdiagnosed as a baseplate failure.

Retrofit Guidance FAQ

Q: Can I reuse all existing field wiring when replacing the IC693CHS391M baseplate?
A: Yes. Field wiring connects to I/O modules via terminal blocks, not directly to the baseplate. As long as the I/O modules are reinstalled in their original slot positions, all field wiring remains intact and no rewiring is required.

Q: Do I need to reload the PLC program after replacing the baseplate?
A: No. The ladder logic program resides in the CPU module’s battery-backed RAM or flash memory, not in the baseplate. Replacing the baseplate does not affect program memory, provided the CPU module is handled correctly and its backup battery is functional.

Q: Will the replacement IC693CHS391M work with my existing IC693CMM321 Ethernet module configuration?
A: Yes. The CMM321 retains its IP configuration in onboard non-volatile memory. After reinstallation in the same slot on the replacement baseplate, it will resume normal Ethernet communication without reconfiguration.

Q: My original baseplate was connected to an expansion chassis via IC693CBL302. Is this still supported?
A: Yes. The IC693CHS391M supports the standard Series 90-30 expansion bus. Reconnect the IC693CBL302 expansion cable to the same port on the replacement baseplate and verify the expansion chassis address settings have not changed.

Q: The physical dimensions of my control cabinet are tight. Will the IC693CHS391M fit in the same footprint?
A: The IC693CHS391M maintains the standard Series 90-30 10-slot chassis form factor. Mounting hole patterns and overall dimensions are identical to earlier revisions, ensuring direct panel-mount compatibility without cabinet modification.

Q: Can I use this baseplate with a Series 90-70 CPU or I/O modules?
A: No. The IC693CHS391M is exclusively compatible with Series 90-30 modules. Series 90-70 hardware uses a different backplane architecture and is not interchangeable.

Warranty Assurance

Every IC693CHS391M unit shipped from TOPNLMS undergoes a pre-shipment functional inspection covering backplane connector integrity, slot alignment, and physical condition verification. Units are packed in anti-static protective packaging with foam cushioning to prevent transit damage.

All units are covered by a 12-month warranty from the date of shipment. In the event of a confirmed hardware defect within the warranty period, TOPNLMS will provide a replacement unit or issue a full refund — whichever the customer prefers. Warranty claims are processed within 3 business days of defect confirmation.

For urgent plant maintenance scenarios, expedited shipping options are available to most destinations. Standard lead time from order confirmation to dispatch is 1–2 business days for in-stock units. Customers requiring documentation for incoming inspection — including test reports or certificate of conformance — may request these at the time of order.

TOPNLMS maintains a dedicated after-sales support channel for technical questions related to installation, compatibility verification, and system integration. Our team has direct experience with Series 90-30 platform deployments and can assist with slot configuration, module compatibility checks, and retrofit planning.
