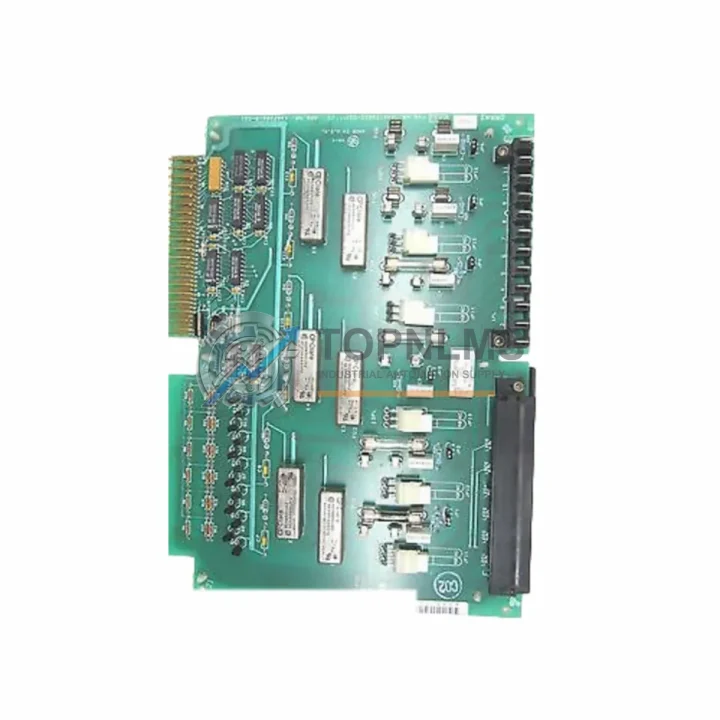

GE Fanuc IC600BF914K Ruggedized Relay Output Module

Product Overview

GE Fanuc IC600BF914K Ruggedized Relay Output Module: Industrial Resilience for Harsh Environments

The GE Fanuc IC600BF914K is a 16-point relay output module engineered for the GE Series Six PLC platform — one of the most proven programmable logic controller architectures deployed across heavy industry worldwide. Designed to deliver reliable discrete output control in environments characterized by high temperature, humidity, vibration, airborne particulates, and electromagnetic interference, the IC600BF914K is a cornerstone component for engineers and procurement teams who cannot afford unplanned downtime.

In continuous production environments — from petrochemical processing lines to steel rolling mills — the relay output module must perform without hesitation. The IC600BF914K achieves this through isolated relay contacts that provide inherent galvanic separation between the PLC backplane and field devices, suppressing transient voltage spikes and ground loops that routinely damage solid-state output modules in electrically noisy industrial settings. Each of the 16 output points is independently switched, allowing granular load control across motor starters, solenoid valves, pilot lights, and alarm annunciators simultaneously.

Rugged Specifications Table

Comprehensive Protection Solutions

The IC600BF914K does not operate in isolation — it is one node in a tightly integrated Series Six control architecture. In a typical control cabinet deployment, this relay output module works in concert with the IC600BF831 analog input module and the IC600BF844 discrete input module to form a complete I/O subsystem. The Series Six CPU module — such as the IC600CPU772 — orchestrates scan cycles and ladder logic execution, while the IC600YB900 power supply module provides regulated DC bus voltage to the entire backplane.

For applications requiring communication with SCADA systems or distributed control networks, the IC600BF940 communications module enables data exchange over legacy industrial protocols, ensuring the Series Six platform remains integrated within modern plant-wide architectures. In installations where the PLC controls variable-speed drives, the relay outputs of the IC600BF914K are commonly wired to the enable and fault-reset terminals of GE AF-300 series variable frequency drives, providing hardwired interlock protection independent of the network layer.

Safety-critical applications often pair the IC600BF914K with dedicated safety relay modules and emergency stop relay assemblies mounted within the same control cabinet. The galvanic isolation of each relay contact ensures that a fault on one output channel — such as a welded contact or coil failure — does not propagate to adjacent channels or back into the PLC backplane, a critical protection feature in continuous process environments where a single point of failure can trigger a plant-wide shutdown. Terminal block assemblies and marshalling panels connected downstream of the module benefit from this inherent channel-to-channel isolation, simplifying fault diagnosis during maintenance windows.

For facilities managing spare parts inventory, the IC600BF914K is a high-priority stocking item. Its role as a discrete output driver for motor control centers, valve actuators, and alarm systems means that a failed module directly impacts production throughput. Procurement teams sourcing replacement modules should verify the revision suffix (K) to ensure full backward compatibility with existing Series Six chassis configurations.

Application in Critical Infrastructure

In oil and gas upstream operations, the IC600BF914K controls wellhead safety valves, chemical injection pump contactors, and flare ignition systems. Its relay contacts tolerate the inductive loads associated with solenoid-operated valves without requiring external snubber circuits, reducing installation complexity in hazardous area control panels.

At coal-fired and combined-cycle power generation facilities, Series Six PLC systems equipped with IC600BF914K modules manage boiler auxiliary systems, cooling water pump sequencing, and turbine lube oil system interlocks. The module’s ability to switch both AC and DC loads from a single hardware platform simplifies the mixed-voltage environments common in power plant electrical rooms.

In underground mining operations, where vibration from blasting and heavy equipment is constant, the relay output module’s mechanical contact design provides a level of robustness that solid-state alternatives cannot match in high-shock environments. Conveyor belt drive starters, ventilation fan contactors, and dewatering pump controls are typical field loads managed by the IC600BF914K in these settings.

Water and wastewater treatment plants rely on Series Six PLC platforms for pump station automation, chemical dosing control, and UV disinfection system sequencing. The IC600BF914K’s 16-point capacity allows a single module to manage an entire pump station’s discrete output requirements, minimizing chassis slot consumption and reducing the overall footprint of the control panel.

In metallurgical and steel processing facilities, where electromagnetic interference from arc furnaces and induction heating equipment is severe, the relay isolation of the IC600BF914K provides a critical barrier between high-energy field circuits and the sensitive logic circuitry of the PLC backplane, protecting the entire control system from EMI-induced data corruption and spurious output activation.
