GE Fanuc IC200UDR005 Replacement for VersaMax Micro

Product Overview

GE Fanuc IC200UDR005 Replacement for VersaMax Micro: Smooth Migration & Legacy System Upgrade

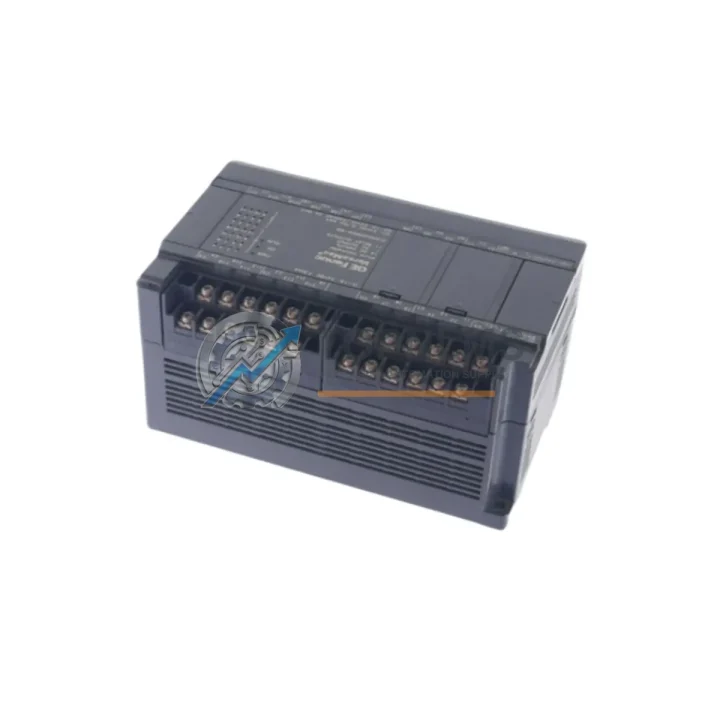

The GE Fanuc IC200UDR005 is a 28-point relay output controller belonging to the VersaMax Micro PLC family — a platform widely deployed across discrete manufacturing, material handling, water treatment, and building automation systems. As the IC200UDR005 approaches end-of-life and spare inventory becomes increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement units or plan a structured migration to a compatible successor platform. TOPNLMS supplies the IC200UDR005 as a direct replacement module, fully tested, with a 12-month warranty, and ships from Xiamen within 1–3 business days to minimize your facility’s downtime exposure.

The IC200UDR005 operates on a 24 VDC supply and provides 28 I/O points in a compact DIN-rail-mountable housing — 20 discrete inputs and 8 relay outputs — making it a natural fit for control cabinets with limited panel space. Its relay output architecture supports mixed-voltage field devices, a key advantage when retrofitting older relay-logic panels where AC and DC loads coexist on the same output rail. When replacing a failed or obsolete unit, the wiring harness, terminal block layout, and I/O addressing map directly to the original installation, eliminating the need for panel rewiring or PLC program restructuring in most retrofit scenarios.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC200UDR005 migration rarely involves the CPU module alone. In practice, the upgrade path touches several interconnected components within the same control cabinet or system architecture. When the VersaMax Micro CPU is replaced, engineers typically audit the IC200CBL001 programming cable to confirm RS-232 compatibility with the new unit’s serial port before re-downloading the application program via Proficy Machine Edition. Where the existing installation uses an IC200PWR002 power supply module, the 24 VDC rail voltage and current budget should be verified against the replacement unit’s inrush and steady-state draw specifications.

For systems that communicate upstream to a SCADA or DCS via Modbus RTU, the IC200UDR005’s built-in RS-485 port can be retained without protocol conversion, preserving the existing register map and polling configuration. In larger panel assemblies where the VersaMax Micro shares a cabinet with an IC200MDL640 discrete input expansion or an IC200MDL730 relay output expansion module, the replacement CPU must be confirmed to support the same local I/O bus addressing scheme to avoid I/O map conflicts after the swap.

Sites migrating from older GE Series 90 Micro controllers — such as the IC693UAA007 or IC693MDL645 I/O modules — to the VersaMax Micro platform will need to re-engineer the I/O wiring terminations, as the terminal block pinout differs between the two product families. In these cross-family migrations, signal isolators or marshalling terminals are often introduced to bridge legacy field wiring to the new module’s terminal layout without disturbing the field cable runs. HMI panels connected via serial link — including legacy QuickPanel units or third-party operator terminals using Modbus ASCII — should be tested for communication continuity after the CPU swap, as baud rate and parity settings may need to be re-confirmed in the HMI driver configuration.

Retrofit Guidance FAQ

Q: Can I reuse my existing wiring when replacing the IC200UDR005?
A: Yes, in same-series replacements. The terminal block layout and I/O point assignments are identical across IC200UDR005 revisions. For cross-series migrations (e.g., from Series 90 Micro), rewiring is required due to different terminal pinouts.

Q: Do I need to rewrite my PLC program?
A: Not for a direct IC200UDR005-to-IC200UDR005 swap. The existing Proficy Machine Edition project can be re-downloaded without modification. Cross-platform migrations from Logicmaster 90 or VersaPro require program conversion and re-validation.

Q: Is Modbus RTU communication preserved after replacement?
A: Yes. The IC200UDR005 supports Modbus RTU over RS-485 natively. Existing register maps, slave addresses, and baud rate settings are retained after the CPU swap, provided the serial port parameters are re-entered correctly during commissioning.

Q: Will the replacement unit fit in the existing DIN rail space?
A: Yes. The IC200UDR005 uses the standard VersaMax Micro compact housing. It mounts directly on a 35 mm DIN rail and occupies the same panel footprint as the original unit.

Q: How do I handle mixed AC/DC output loads during the retrofit?
A: The relay output architecture of the IC200UDR005 supports both AC and DC field devices on the same output rail. No additional output relay modules or interposing relays are required for standard mixed-load applications.

Warranty Assurance

Every IC200UDR005 unit supplied by TOPNLMS undergoes pre-shipment functional testing covering power-on self-test, I/O point verification, and serial communication port integrity checks. Units are shipped with a 12-month warranty covering manufacturing defects and functional failures under normal operating conditions. In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 5 business days of confirmed fault diagnosis, with return freight covered for verified defective units.

Procurement teams can request a test report or inspection certificate prior to shipment. Express shipping options (DHL, FedEx, UPS) are available for urgent breakdown situations, with same-day dispatch for in-stock orders placed before 15:00 CST. For volume orders or long-term supply agreements, contact our technical sales team to discuss consignment stock arrangements and priority allocation.

TOPNLMS maintains a dedicated after-sales response channel for industrial automation components. Technical support for installation, commissioning, and compatibility verification is available via email and phone throughout the warranty period.
