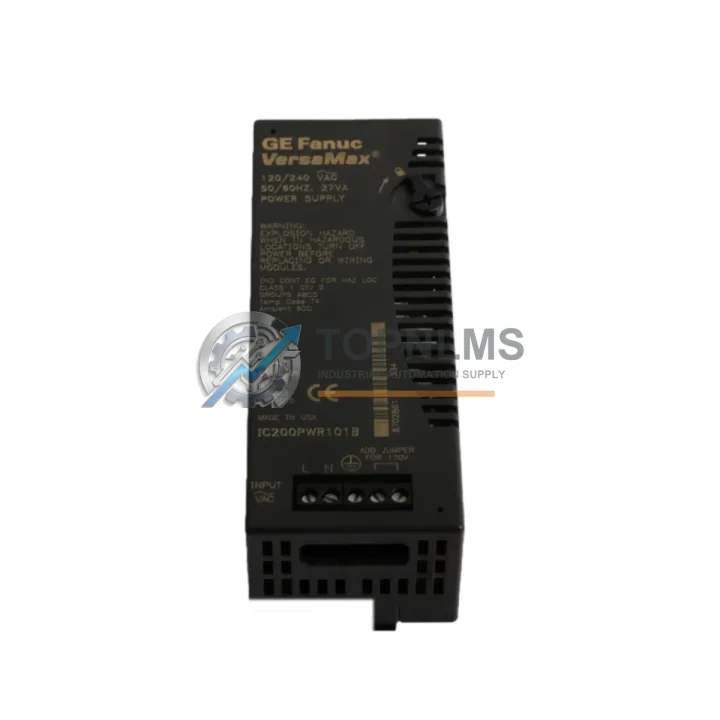

GE Fanuc IC200PWR101 Replacement for VersaMax Series

Product Overview

GE Fanuc IC200PWR101 Replacement for VersaMax Series: Seamless Transition & Compatible Upgrade

When your GE Fanuc VersaMax control system relies on the IC200PWR101 24VDC Power Supply Module and the original unit reaches end-of-life, sourcing a verified replacement becomes a critical priority. Unplanned downtime in industrial automation environments — whether on a packaging line, water treatment facility, or discrete manufacturing cell — carries real operational cost. The IC200PWR101 is a core power supply module within the VersaMax Micro and VersaMax Modular PLC platform, delivering regulated 24VDC bus power to I/O modules, communication modules, and CPU carriers mounted on the same backplane. This listing provides a fully tested, ready-to-ship IC200PWR101 replacement unit, backed by a 12-month warranty and pre-shipment functional verification.

The VersaMax platform was designed for distributed I/O and standalone PLC applications, and the IC200PWR101 sits at the heart of that architecture. It supplies power to the local I/O carrier and supports the full range of VersaMax I/O modules — including discrete input modules such as the IC200MDL640 and IC200MDL650, analog input modules like the IC200ALG260, and discrete output modules such as the IC200MDL740. When the power supply fails or is flagged for preventive replacement, the entire carrier loses power, taking all downstream I/O offline. A like-for-like IC200PWR101 replacement restores the system without requiring any rewiring, rack modification, or PLC program changes.

For facilities running a VersaMax Modular system with a CPU carrier — such as those using the IC200CPUE05 or IC200UDR005 CPU modules — the IC200PWR101 mounts directly onto the carrier rail and connects via the standard VersaMax backplane bus. No adapter, no bracket modification, and no firmware update is required. The physical footprint, DIN rail mounting profile, and terminal block layout are identical to the original factory unit, making field replacement a straightforward swap that a qualified technician can complete during a scheduled maintenance window or emergency shutdown.

From a wiring compatibility standpoint, the IC200PWR101 accepts a 24VDC nominal input from the control cabinet power rail — typically sourced from a 24VDC SMPS (switched-mode power supply) already installed in the panel. Input terminal labeling and polarity conventions are preserved, so existing field wiring from the cabinet power distribution block connects without modification. If your cabinet uses a Phoenix Contact or Weidmüller terminal block arrangement for power distribution, the existing wire lengths and ferrule terminations will reach the replacement module’s input terminals without re-routing.

Communication protocol continuity is fully maintained. The IC200PWR101 does not participate in the data communication layer — it is a pure power supply module — so replacing it has zero impact on Profibus DP, DeviceNet, Ethernet/IP, or serial communication links established through VersaMax communication modules such as the IC200PBI001 Profibus Interface or the IC200ETM001 Ethernet Interface. Your existing network topology, node addresses, and PLC program logic remain intact after the swap.

For plants operating a mixed GE Fanuc environment — where VersaMax I/O is used alongside a PACSystems RX3i controller (IC695CPE010 or IC695CPE030) via a remote I/O drop — the IC200PWR101 replacement restores the remote drop’s power without any changes to the RX3i CPU configuration or the remote I/O scanner settings. The PACSystems controller will automatically re-establish communication with the VersaMax drop once the power supply is restored and the carrier re-initializes.

Installation space requirements are unchanged. The IC200PWR101 occupies a single module slot on the VersaMax carrier and does not require additional clearance beyond the standard VersaMax enclosure depth. Control cabinets that were originally sized for the VersaMax platform will accommodate the replacement unit without panel modification. Heat dissipation characteristics are within the original thermal design envelope, so existing cabinet ventilation and cooling arrangements remain adequate.

For customers managing a broader VersaMax spare parts inventory, this IC200PWR101 replacement is typically stocked alongside other high-turnover VersaMax components: the IC200CHS022 10-slot carrier, the IC200PWR002 120/240VAC power supply variant, and the IC200MDL330 24VDC discrete output module. Maintaining a small buffer stock of the IC200PWR101 alongside these modules is a common practice in facilities with multiple VersaMax drops, as it eliminates lead-time risk during unplanned failures.

All units are subject to pre-shipment functional testing under load conditions. Each IC200PWR101 is powered up, output voltage is verified at the backplane connector, and ripple/noise is measured before packaging. Units that do not meet GE Fanuc original specification tolerances are rejected. The tested unit is then packaged in anti-static foam with moisture barrier packaging, suitable for international air freight or express courier shipment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful IC200PWR101 replacement is rarely a standalone action — it is part of a broader VersaMax system health check. During the replacement process, technicians commonly inspect and, where necessary, replace adjacent components to ensure the restored system operates reliably. The IC200CHS022 10-slot carrier is the most common carrier platform for IC200PWR101 installations; if the carrier shows signs of backplane connector wear or physical damage, replacing it in the same maintenance window eliminates a secondary failure risk. Similarly, the IC200PWR002 — the 120/240VAC input variant of the VersaMax power supply family — is often stocked alongside the IC200PWR101 in facilities that operate both AC-input and DC-input VersaMax drops.

I/O module integrity should be verified after any power supply replacement. The IC200MDL640 24VDC 16-point discrete input module and the IC200MDL740 24VDC 16-point discrete output module are the most widely deployed I/O modules in VersaMax systems and are worth bench-testing if the original power supply failure was caused by an upstream surge or short circuit. Analog signal continuity should be confirmed on the IC200ALG260 analog input module, as analog modules are sensitive to power quality events that may have preceded the supply failure.

If the VersaMax drop communicates over Profibus DP, the IC200PBI001 Profibus Interface module should be inspected for address configuration integrity after the power cycle. For Ethernet-connected drops, the IC200ETM001 Ethernet Interface module’s IP configuration is stored in non-volatile memory and will be retained through the power supply swap, but network connectivity should be confirmed during commissioning. Programming cable access — typically via the IC200CBL001 serial programming cable or a USB-to-serial adapter — may be needed if the CPU requires a warm restart or configuration re-download after the replacement.

For facilities planning a longer-term migration from VersaMax to the PACSystems RX3i platform, the IC200PWR101 replacement provides a stable bridge while the migration project is scoped and scheduled. The RX3i platform’s IC695PSD040 power supply module and IC695CHS016 rack can be introduced as a parallel system, with VersaMax I/O retained as remote drops via the IC695RMX128 remote I/O scanner, allowing a phased cutover that avoids a full system shutdown.

Retrofit Guidance FAQ

Q: Do I need to modify any wiring when replacing the IC200PWR101?
No. The replacement unit uses the same terminal block layout and input voltage range as the original. Existing 24VDC field wiring connects directly without modification.

Q: Will my PLC program be affected?
No. The IC200PWR101 is a power supply module with no data or logic function. Your VersaMax CPU program, I/O mapping, and communication configuration are stored in the CPU module and are unaffected by the power supply replacement.

Q: Is the replacement compatible with all VersaMax carriers?
Yes. The IC200PWR101 is compatible with all standard VersaMax I/O carriers, including the IC200CHS002, IC200CHS005, and IC200CHS022. It is not compatible with VersaMax Micro CPU units that have an integrated power supply.

Q: What communication protocols are supported after replacement?
All protocols supported by your existing VersaMax communication modules — including Profibus DP, DeviceNet, Ethernet/IP, and serial — are fully maintained. The power supply replacement has no impact on communication module configuration or network topology.

Q: How much physical space does the replacement require?
The IC200PWR101 occupies one module slot on the VersaMax carrier. The physical dimensions are identical to the original, so no cabinet modification or additional clearance is required.

Q: Can I install the replacement myself, or do I need a GE Fanuc-certified technician?
The IC200PWR101 is a field-replaceable module. A qualified industrial electrician or automation technician familiar with VersaMax hardware can perform the replacement. No special tools or software are required for the physical swap. A programming cable may be needed if a CPU restart or configuration re-download is required after the replacement.

Q: What if the replacement unit is faulty on arrival?
All units are covered by a 12-month warranty from the date of shipment. If a unit is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or full refund. Contact [email protected] to initiate a warranty claim.

Warranty Assurance

Every IC200PWR101 unit shipped by TOPNLMS is covered by a 12-month warranty from the date of dispatch. This warranty covers functional failure under normal industrial operating conditions and includes free replacement or full refund at the buyer’s discretion. Pre-shipment testing is performed on 100% of units — not on a sample basis — and includes output voltage verification, load testing, and visual inspection for connector and terminal integrity. Units are packaged in anti-static foam inserts with moisture barrier outer packaging, suitable for air freight, express courier (DHL, FedEx, UPS), and sea freight consolidation.

Orders are typically dispatched within 1–3 business days from our Xiamen warehouse. Express delivery to most destinations in Asia, Europe, and North America is available with estimated transit times of 3–7 business days. Tracking information is provided for all shipments. For urgent requirements — including same-day dispatch requests — please contact our sales team directly at [email protected] or +86 18359293191 to confirm stock availability and arrange priority handling.

For procurement teams requiring documentation, we can provide a commercial invoice, packing list, certificate of conformance, and test report upon request. Import/export documentation support is available for cross-border shipments requiring customs clearance assistance.
