GE Fanuc A860-0203-T001 Replacement/Upgrade Solution

Product Overview

GE Fanuc A860-0203-T001 Replacement/Upgrade Solution: Smooth Transition from Legacy CNC Systems

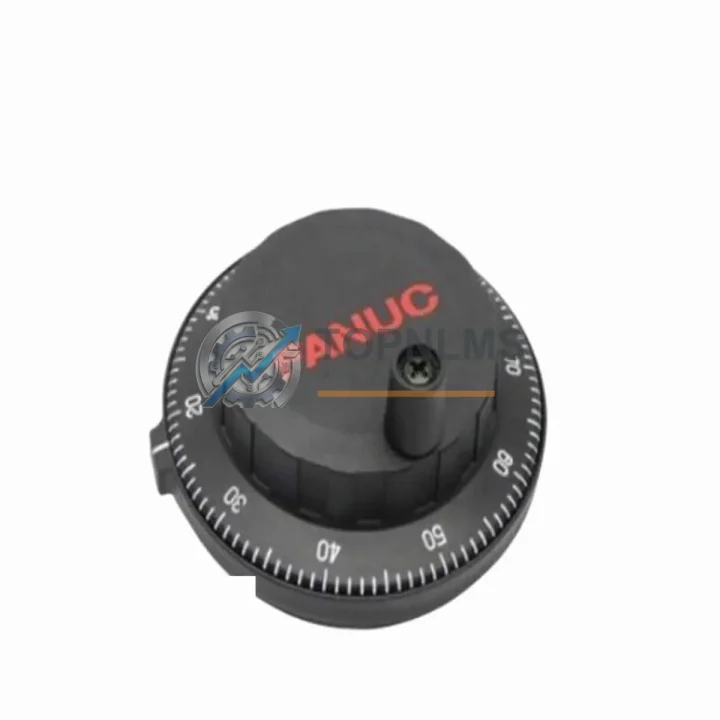

The GE Fanuc A860-0203-T001 is a high-resolution pulse generator (servo encoder) designed for GE Fanuc Series 90 CNC motion control systems. As legacy CNC machinery ages and original OEM stock becomes increasingly scarce, plant engineers and maintenance teams face mounting pressure to source reliable, drop-in compatible replacements that minimize retooling, rewiring, and unplanned downtime. TOPNLMS supplies the A860-0203-T001 as a direct replacement and upgrade solution, fully tested, ready to ship, and backed by a 12-month warranty.

Whether you are maintaining a fleet of vertical machining centers, horizontal boring mills, or multi-axis turning centers built around the GE Fanuc 0-Series, 15-Series, or 16-Series CNC controllers, the A860-0203-T001 pulse generator integrates seamlessly into your existing servo drive architecture. The encoder interfaces directly with GE Fanuc servo amplifiers such as the A06B-6079 series and A06B-6096 series drive modules, preserving the original feedback loop without requiring parameter reconfiguration or drive replacement.

For facilities migrating from older A860-0201 or A860-0202 encoder variants, the A860-0203-T001 offers an upward-compatible signal specification. The connector pinout and cable harness routing remain consistent with the original installation, meaning field technicians can complete a swap in under two hours without modifying the machine’s electrical cabinet layout or cable trays. The encoder’s 2,500 PPR resolution and differential line-driver output are fully compatible with the quadrature feedback inputs on GE Fanuc servo control boards, including the A16B-2200 and A16B-2201 axis control PCBs.

In retrofit projects where the host CNC controller is being upgraded from a GE Fanuc 0-C or 0-D platform to a more current GE Fanuc 30i/31i/32i series controller, the A860-0203-T001 remains a viable feedback device. The encoder’s serial and incremental output modes are recognized by the newer FSSB (Fanuc Serial Servo Bus) interface when paired with an appropriate A860-0309 or A860-0360 serial converter module, allowing the mechanical servo axis to be retained while the control electronics are modernized. This approach significantly reduces retrofit capital expenditure compared to full axis replacement.

Power supply compatibility is another key consideration during replacement. The A860-0203-T001 operates on a 5 VDC supply sourced from the servo amplifier’s encoder power rail, consistent with the original GE Fanuc design specification. No additional power conditioning or voltage regulation is required when replacing a like-for-like unit. For installations where the servo amplifier’s encoder supply has degraded, TOPNLMS recommends inspecting the A06B-6110 series power supply module as part of the preventive maintenance scope during the encoder swap.

Physical installation dimensions are identical to the original OEM part. The encoder mounts directly to the servo motor’s rear shaft using the standard M3 coupling and flange arrangement common across GE Fanuc αi and βi series servo motors, including the A06B-0227 and A06B-0243 motor families. No machining, adapter plates, or custom brackets are required.

For facilities operating multi-axis CNC systems, it is common to replace encoders on all active axes during a scheduled maintenance window rather than reactively replacing individual units as they fail. TOPNLMS maintains stock of the A860-0203-T001 in sufficient quantity to support multi-unit orders, and can provide matched-batch shipments to ensure consistent firmware and hardware revision levels across all axes of a given machine tool.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful encoder replacement rarely occurs in isolation. During a planned maintenance window or unplanned breakdown, field engineers typically audit adjacent components to prevent repeat failures. When replacing the A860-0203-T001, consider the following commonly co-replaced or co-inspected components within the same servo axis or control cabinet:

The A06B-6079-H206 servo amplifier module is the most frequent companion replacement, as encoder failures often result from sustained vibration or thermal stress that simultaneously degrades the amplifier’s input stage. Replacing both units during the same maintenance window eliminates the risk of a second unplanned outage within weeks of the initial repair.

The A860-0309 serial encoder converter is essential for facilities upgrading the CNC controller to a 30i/31i platform while retaining the existing servo motor and A860-0203-T001 encoder. This converter bridges the incremental encoder output to the FSSB serial interface required by the newer controller generation.

The A02B-0236-C241 programming cable (or equivalent RS-232C interface cable) is required when re-parameterizing the CNC controller after encoder replacement, particularly if axis gain, backlash compensation, or reference point offset parameters need to be verified or adjusted post-installation.

For multi-axis machines, the A16B-2202-0900 axis control board should be inspected for capacitor aging and trace corrosion, as these boards share the same service life as the encoder and are a common source of intermittent feedback alarms following encoder replacement.

The A06B-6110-H015 power supply module provides the regulated 5 VDC encoder supply rail. If the replaced encoder shows signs of supply voltage fluctuation damage, this module should be tested and replaced as a precautionary measure.

Finally, the A660-2005-T505 encoder cable assembly is a high-flex shielded cable designed for continuous-flex servo applications. Replacing the cable alongside the encoder eliminates the most common source of recurring feedback alarms in high-cycle-rate machining environments.

Retrofit Guidance FAQ

Q: Can I replace the A860-0203-T001 without modifying the existing wiring harness?
A: Yes. The connector pinout and cable interface are identical to the original OEM specification. No rewiring is required for a direct like-for-like replacement.

Q: Will the replacement encoder work with my GE Fanuc 16i controller?
A: Yes. The A860-0203-T001 is compatible with GE Fanuc 0-Series, 15i, and 16i controllers in incremental encoder mode. For 30i/31i/32i controllers using FSSB, an A860-0309 serial converter is required.

Q: Do I need to re-home the machine axes after encoder replacement?
A: Yes. After replacing the encoder, a reference point return (zero-return) procedure must be performed on the affected axis. Grid shift and reference offset parameters should be verified against the machine’s maintenance records.

Q: Is the physical mounting footprint identical to the original?
A: Yes. The A860-0203-T001 uses the same M3 rear-shaft flange and overall envelope dimensions as the original, ensuring direct fit without adapter plates or machining.

Q: What communication protocol does this encoder use?
A: The encoder outputs differential incremental quadrature signals (A, B, Z phases) compatible with RS-422 line receivers. It does not use a serial protocol natively; a converter module is required for FSSB-based controllers.

Q: Can I install this encoder in a high-vibration environment?
A: Yes. The A860-0203-T001 is rated for the vibration and shock levels typical of industrial CNC machine tool environments. Ensure the coupling and mounting hardware are torqued to specification during installation.

Warranty Assurance

Every A860-0203-T001 unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes functional verification including signal output integrity testing, supply current measurement, and connector inspection. Units that do not meet specification are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our technical support team is available to assist with installation guidance, parameter verification, and fault diagnosis to minimize your machine downtime. Replacement units are dispatched within 1–3 business days of claim approval.

For procurement teams, TOPNLMS issues a formal invoice, packing list, and certificate of conformance with every shipment. Export documentation for international orders is prepared in compliance with applicable customs regulations. Shipments from our Xiamen warehouse typically reach destinations in Southeast Asia within 3–5 business days, and Europe or the Americas within 5–10 business days via express courier.

We maintain a standing inventory of the A860-0203-T001 to support both emergency breakdown orders and planned maintenance procurement schedules. Volume pricing is available for orders of 5 units or more.
