GE Fanuc 151X1249BR01SA01 Ruggedized VME Control Module

Product Overview

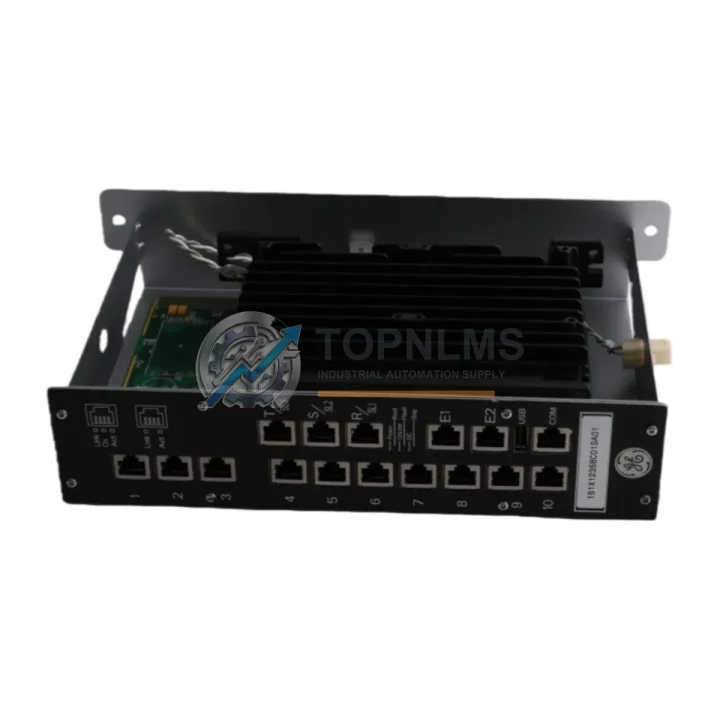

GE Fanuc 151X1249BR01SA01 Ruggedized VME Control Interface Module for Harsh Industrial Environments

The GE Fanuc 151X1249BR01SA01 is a VME-bus Control Interface Module engineered for the Series 90-70 PLC platform — one of GE Fanuc’s most robust and widely deployed programmable logic controller architectures in heavy industry. Designed to operate reliably under demanding conditions including high ambient temperatures, elevated humidity, airborne particulates, mechanical vibration, and electromagnetic interference, this module delivers the signal integrity and processing stability that mission-critical control systems require.

In continuous production environments — from petrochemical refineries and offshore platforms to steel mills, mining operations, and power generation facilities — control system reliability is non-negotiable. The 151X1249BR01SA01 serves as the backbone of the Series 90-70 VME rack architecture, managing control bus communications between the CPU module and downstream I/O assemblies. Its rugged VME form factor ensures secure mechanical seating within the rack chassis, minimizing the risk of intermittent contact failures caused by vibration or thermal cycling.

Rugged Specifications Table

Comprehensive Protection Solutions for Series 90-70 Control Systems

Deploying the 151X1249BR01SA01 as part of a broader Series 90-70 system upgrade or maintenance strategy requires careful attention to the surrounding control architecture. The module interfaces directly with the IC697CPU772 or IC697CPU781 central processing units, which manage ladder logic execution and I/O scanning across the VME rack. Ensuring these CPU modules are in good operational condition is the first step in any system reliability audit.

On the I/O side, the 151X1249BR01SA01 coordinates data exchange with analog and discrete I/O modules such as the IC697MDL340 discrete input module and the IC697ALG230 analog input module. In high-noise industrial environments, signal conditioning becomes critical — pairing these I/O modules with appropriate signal isolators and surge protection devices on field wiring terminals significantly reduces the risk of spurious trips or data corruption caused by ground loops or transient voltage spikes.

Power integrity is equally important. The Series 90-70 rack relies on dedicated power supply modules — the IC697PWR711 and IC697PWR724 are the most common — to deliver clean, regulated DC power to all VME cards. In facilities with unstable grid power, such as those near large motor drives or arc furnaces, supplementing the rack power supply with an external UPS or line conditioner is strongly recommended to protect the 151X1249BR01SA01 and adjacent modules from brownouts and voltage transients.

For facilities running GE Fanuc’s communications infrastructure, the IC697CMM742 communications coprocessor module enables the Series 90-70 rack to participate in Ethernet-based SCADA and DCS networks. This is particularly relevant in oil and gas facilities where the control system must report real-time process data to a centralized historian or DCS platform. The 151X1249BR01SA01 supports this architecture by maintaining reliable VME bus throughput even under high I/O polling rates.

In applications where the Series 90-70 rack is installed inside a sealed control cabinet — common in outdoor substations, offshore modules, or dusty mining environments — thermal management becomes a key reliability factor. Pairing the rack with cabinet-mounted heat exchangers or filtered fan units, along with periodic inspection of the IC697CHS750 rack chassis backplane connectors, ensures the 151X1249BR01SA01 maintains stable contact resistance over years of continuous operation.

Application in Critical Infrastructure

The GE Fanuc 151X1249BR01SA01 has a proven track record across some of the most demanding industrial sectors globally. In oil and gas upstream and midstream operations, Series 90-70 systems control wellhead safety shutdown logic, compressor station sequencing, and pipeline pressure regulation — environments where the VME control interface module must perform without interruption across wide temperature swings and persistent vibration from rotating equipment.

In power generation — including coal-fired, gas turbine, and hydroelectric plants — the Series 90-70 platform manages auxiliary systems such as cooling water pumps, fuel handling conveyors, and transformer protection relays. The 151X1249BR01SA01’s robust VME bus architecture ensures deterministic scan times even when the rack is populated with a full complement of I/O and communications modules, which is essential for time-critical protection functions.

Mining and mineral processing operations present some of the harshest environments for control hardware: fine conductive dust, high vibration from crushers and conveyors, and wide ambient temperature swings between day and night shifts. The Series 90-70 platform’s sealed module design and the 151X1249BR01SA01’s conformal-coated PCB construction provide meaningful protection against these conditions, reducing unplanned downtime and extending mean time between failures.

Water and wastewater treatment facilities rely on Series 90-70 systems for pump station control, chemical dosing, and SCADA integration. The 151X1249BR01SA01 enables reliable communication between the CPU and remote I/O drops, supporting distributed control architectures across large treatment plant footprints. In metallurgical and steel production environments, where electromagnetic interference from induction furnaces and large variable frequency drives is a constant challenge, the module’s shielded VME backplane design provides a meaningful layer of protection against data corruption on the control bus.

Security & Quality FAQ

Q: What warranty coverage is provided with the 151X1249BR01SA01?
A: Every 151X1249BR01SA01 shipped by TOPNLMS is covered by a 12-month warranty from the date of delivery. This covers functional failures under normal operating conditions. Our after-sales team responds within 24 business hours to warranty claims, and replacement units are dispatched promptly to minimize your system downtime.

Q: How is each module tested before shipment?
A: All units undergo a multi-stage inspection process including visual inspection for physical damage, power-on functional testing, VME bus communication verification, and I/O signal integrity checks. Modules that do not pass all test stages are not shipped. A test report is available upon request for quality-critical procurement processes.

Q: Is the 151X1249BR01SA01 compatible with my existing Series 90-70 rack and CPU?
A: Yes. The 151X1249BR01SA01 is designed for direct installation into standard Series 90-70 VME rack chassis, including the IC697CHS750 and IC697CHS782. It is compatible with all Series 90-70 CPU modules and does not require firmware changes or configuration modifications in most standard applications. If you have a specific rack configuration or CPU revision, our technical team can confirm compatibility before shipment.

Q: Can TOPNLMS provide long-term supply for ongoing maintenance programs?
A: Yes. TOPNLMS maintains stock of Series 90-70 components including the 151X1249BR01SA01 and related modules to support ongoing MRO (maintenance, repair, and operations) programs. We work with industrial facilities that require periodic replenishment of spare parts inventories and can provide volume pricing, reserved stock agreements, and priority shipping arrangements for qualified accounts.
