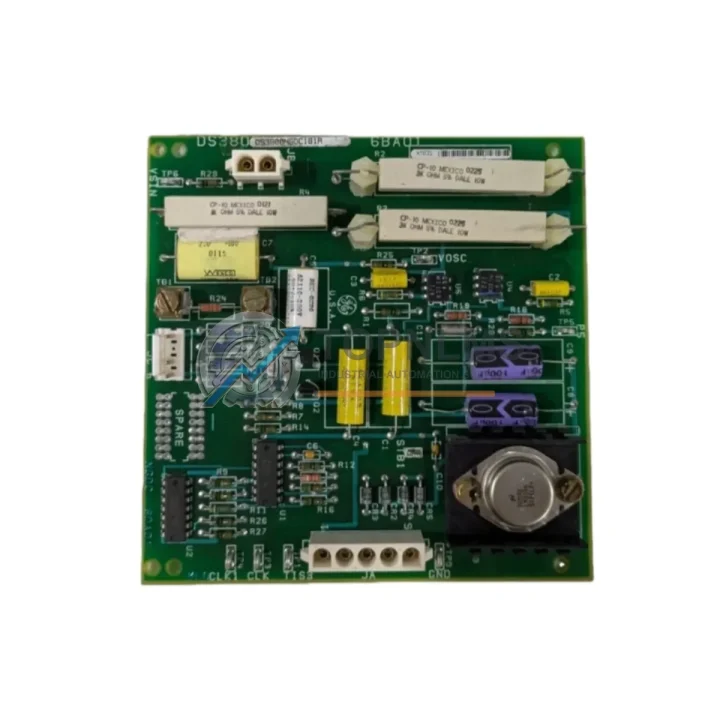

GE DS3800NGDC1B1A Ruggedized Ground Detector Module

Product Overview

GE DS3800NGDC1B1A Ruggedized Ground Detector Module: Industrial Resilience for Harsh Environments

The GE DS3800NGDC1B1A is a precision-engineered Ground Detector Module purpose-built for the GE Mark V Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in critical power generation and heavy industrial facilities worldwide. Manufactured to GE’s stringent industrial-grade standards, this module delivers continuous, reliable ground fault detection across high-voltage generator circuits, ensuring personnel safety and equipment protection in environments where failure is not an option.

In power plants, petrochemical refineries, offshore platforms, and metallurgical facilities, electrical ground faults represent one of the most dangerous and costly failure modes. The DS3800NGDC1B1A continuously monitors generator stator windings and associated electrical circuits for ground fault conditions, triggering protective relay logic within the Mark V Speedtronic control architecture before a fault can escalate into catastrophic equipment damage or personnel injury. Its hardened design tolerates electromagnetic interference (EMI), mechanical vibration, thermal cycling, high humidity, and conductive dust contamination — all routine hazards in turbine hall and heavy industrial environments.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS3800NGDC1B1A operates as a critical node within the broader GE Mark V Speedtronic control architecture, working in concert with a suite of complementary modules to deliver system-wide protection and operational continuity. In a typical turbine control cabinet, this Ground Detector Module interfaces directly with the DS3800NPPC Power Supply Card, which provides the regulated DC power rails essential for stable module operation even during grid disturbances or generator load transients.

The DS3800NPSB Power Supply Board conditions incoming AC supply and distributes clean power across the Mark V rack, shielding sensitive signal-processing cards from voltage spikes and harmonic distortion common in heavy industrial environments. Ground fault signals detected by the DS3800NGDC1B1A are processed by the DS3800NTBA Turbine Control Board, which coordinates protective trip logic and communicates fault status to the operator HMI in real time.

For I/O expansion and field signal conditioning, the DS3800NDAC Analog Output Card and DS3800NIOB I/O Board route protection signals to external relay panels and distributed control system (DCS) interfaces. In facilities running hybrid control architectures, the Mark V communicates with plant-level DCS platforms via the DS3800NCSC Communication Card, enabling centralized alarm management and SCADA integration without compromising the real-time response of the local turbine protection loop.

Safety relay modules such as the DS3800NRPC Relay and Protection Card provide the final hardwired trip outputs that physically disconnect the generator from the grid upon confirmed ground fault detection — a critical last line of defense in any IEC 61511 or NFPA 70E compliant safety instrumented system. Terminal modules and marshalling panels within the control cabinet ensure that field wiring from current transformers, voltage transformers, and neutral grounding resistors is correctly terminated and isolated, maintaining measurement accuracy across the full service life of the installation.

Application in Critical Infrastructure

The GE DS3800NGDC1B1A is deployed across some of the world’s most demanding industrial environments, where continuous uptime and personnel safety are non-negotiable operational requirements.

Power Generation: In combined-cycle and open-cycle gas turbine power plants, the DS3800NGDC1B1A monitors generator stator ground insulation in real time. A single undetected ground fault in a high-voltage generator can result in winding burnout, core damage, and weeks of unplanned outage. This module provides the early-warning detection that allows operators to schedule controlled shutdowns rather than suffer catastrophic failures.

Oil & Gas and Petrochemical: Offshore platforms and onshore refineries rely on gas turbine-driven compressors and generators operating in classified hazardous areas. The Mark V Speedtronic system, anchored by protection modules like the DS3800NGDC1B1A, ensures that ground fault events trigger safe, controlled shutdowns rather than uncontrolled electrical faults that could ignite flammable atmospheres.

Metallurgy and Heavy Industry: Steel mills, aluminum smelters, and mining operations run large motor-generator sets and turbine-driven blowers under continuous duty cycles. High ambient temperatures, pervasive metallic dust, and intense electromagnetic interference from arc furnaces and variable frequency drives (VFDs) create a hostile environment for electronic control modules. The DS3800NGDC1B1A’s hardened design maintains measurement integrity under these conditions, supporting uninterrupted production.

Water and Wastewater Treatment: Large pumping stations and water treatment facilities use turbine-driven or motor-driven generators for backup power. Ground fault protection ensures that electrical faults do not compromise the availability of critical water infrastructure, particularly during emergency operations when backup generation is most needed.

Mining: Underground and surface mining operations depend on reliable electrical protection to safeguard personnel working in proximity to high-voltage equipment. The DS3800NGDC1B1A provides the ground fault detection layer that supports compliance with mining electrical safety regulations and reduces the risk of arc flash incidents in confined, high-dust environments.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is it enforced?
All DS3800NGDC1B1A units supplied by TOPNLMS carry a 12-month warranty covering functional defects under normal operating conditions. If a module fails to perform its specified ground detection function within the warranty period due to a manufacturing or component defect, we will provide a replacement unit or full refund. Warranty claims are processed within 5 business days of receiving the returned module, and we maintain reserve stock specifically to support rapid warranty replacements without disrupting your operations.

Q2: How is each unit tested before shipment?
Every DS3800NGDC1B1A undergoes a multi-stage inspection and functional test protocol prior to dispatch. This includes visual inspection for physical damage, board-level continuity testing, power-on functional verification, and comparison against known-good reference units. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures. A test report is available upon request for customers requiring documentation for their quality management systems.

Q3: Is the DS3800NGDC1B1A compatible with all Mark V Speedtronic configurations?
The DS3800NGDC1B1A is designed for use within the GE Mark V Speedtronic turbine control system family. Compatibility depends on your specific Mark V panel configuration, software revision, and application (gas turbine, steam turbine, or combined cycle). We recommend providing your panel serial number and application details when ordering so our technical team can confirm compatibility and advise on any required configuration adjustments before installation.

Q4: Can TOPNLMS support long-term supply and emergency replacement needs?
Yes. TOPNLMS maintains ongoing inventory of GE Mark V Speedtronic modules, including the DS3800NGDC1B1A, to support both planned maintenance programs and emergency breakdown situations. Our standard dispatch time is 1–3 business days for in-stock items, with expedited shipping options available for critical plant emergencies. For customers managing large fleets of Mark V-controlled turbines, we offer reserved stock arrangements to guarantee availability when you need it most.
