GE DS3800HAFA1D1E Replacement/Upgrade for Mark IV

Product Overview

GE DS3800HAFA1D1E Replacement & Upgrade Solution for SPEEDTRONIC Mark IV: Smooth Transition from Legacy Turbine Control Systems

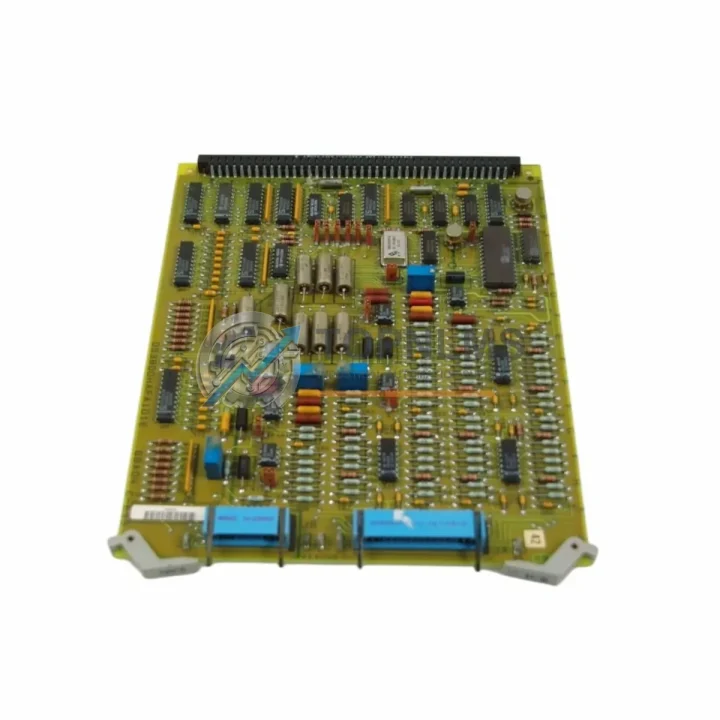

The GE DS3800HAFA1D1E is a Voltage Regulator Board designed for the GE SPEEDTRONIC Mark IV turbine control platform — one of the most widely deployed gas turbine control architectures in power generation, oil & gas, and heavy industrial facilities worldwide. As the Mark IV platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source reliable replacement boards that maintain system integrity without triggering a full control system overhaul.

At TOPNLMS, we specialize in sourcing, testing, and supplying hard-to-find GE SPEEDTRONIC boards including the DS3800HAFA1D1E. Every unit undergoes functional verification prior to shipment, ensuring that your replacement board arrives ready for installation with minimal commissioning time.

Compatibility Comparison Table

Seamless Upgrade Solutions

Replacing the DS3800HAFA1D1E is rarely an isolated action. In most Mark IV turbine control retrofit projects, the voltage regulator board works in close coordination with adjacent cards and system components. During the upgrade process, engineers commonly address the DS3800HPCA1C1E Power Supply Board, which provides the regulated DC rails that the voltage regulator depends on — a failing power supply is often the root cause of voltage regulator faults and should be inspected or replaced concurrently.

The DS3800HRSA1A1A Relay Output Board and DS3800HPIB1A1A I/O Interface Board are frequently serviced alongside the voltage regulator during planned outages, as they share the same Mark IV card rack and backplane bus. Replacing multiple boards during a single maintenance window significantly reduces total downtime compared to sequential replacements.

For sites migrating from Mark III to Mark IV architecture, the DS3800HUMB1A1A Microprocessor Board is the central processing unit that orchestrates all card communications across the Mark IV backplane. Ensuring this board is in good condition — or sourcing a tested replacement — is a prerequisite before commissioning a new voltage regulator board.

Communication integrity between the turbine control panel and the plant DCS or SCADA system is maintained through the DS3800HCNA1A1A Communication Interface Board, which handles serial and hardwired I/O signal routing. When upgrading excitation control, verifying that the communication board firmware is compatible with the replacement voltage regulator revision is a critical commissioning step.

On the field wiring side, the DS3800HTRB Terminal Board provides the physical connection point between the Mark IV card cage and the generator excitation wiring harness. Inspecting terminal boards for corrosion, loose connections, or insulation degradation during a DS3800HAFA1D1E replacement is standard practice and prevents repeat failures after the new board is installed.

For facilities also upgrading their HMI layer, the GE Cimplicity SCADA workstation or a modern GE iFIX HMI panel can be integrated with the Mark IV system to provide enhanced alarm management and trend visualization — a common request from plant operators seeking to extend the operational life of their turbine control infrastructure without a full platform migration to Mark VI or Mark VIe.

Finally, sites that require signal isolation between the Mark IV excitation outputs and third-party instrumentation loops often install Phoenix Contact or Weidmuller DIN-rail signal isolators in the control cabinet alongside the replacement board, ensuring clean 4–20 mA or discrete signal transmission to downstream monitoring systems.

Retrofit Guidance FAQ

Q: Is the DS3800HAFA1D1E a direct drop-in replacement for my existing board?
A: Yes, for Mark IV systems. The board occupies the same card slot, uses the same backplane connector, and retains the existing terminal block wiring. No mechanical modification to the rack or cabinet is required. Confirm the board revision suffix (1D1E) matches your system’s configuration file before installation.

Q: Do I need to reload the turbine control program after replacing this board?
A: In most cases, the control program resides on the DS3800HUMB Microprocessor Board, not the voltage regulator board. Replacing the DS3800HAFA1D1E typically does not require a full program reload. However, calibration parameters for the voltage regulator function block should be verified against the original commissioning records after installation.

Q: What communication protocols does the Mark IV system use, and will the replacement board be compatible?
A: The GE SPEEDTRONIC Mark IV uses a proprietary internal backplane bus for inter-card communication. The DS3800HAFA1D1E communicates exclusively via this backplane — there is no external Ethernet, Modbus, or PROFIBUS interface on this board. External DCS communication is handled by dedicated interface boards such as the DS3800HCNA series.

Q: My control cabinet has limited space. Will the replacement board fit?
A: The DS3800HAFA1D1E is a standard Mark IV form-factor PCB card. It fits directly into any Mark IV card rack without requiring additional mounting hardware. If you are migrating from a Mark II or Mark III system, a rack adapter may be required — contact our technical team for guidance.

Q: Can this board be used as a spare for inventory purposes?
A: Yes. We recommend that power generation facilities and industrial plants operating Mark IV turbine control systems maintain at least one spare DS3800HAFA1D1E in their critical spare parts inventory. The board can be stored in its anti-static packaging in a climate-controlled environment for extended periods without degradation.

Q: What testing is performed before shipment?
A: Each DS3800HAFA1D1E unit is subjected to visual inspection, power-on functional verification, and output signal testing prior to packaging. Units that fail any test stage are quarantined and not shipped. A test report is available upon request.

Warranty Assurance

Every DS3800HAFA1D1E supplied by TOPNLMS is backed by a 12-Month Warranty covering manufacturing defects and functional failure under normal operating conditions. Our warranty process is straightforward: if a board fails within the warranty period, we provide a replacement unit at no additional cost, with priority processing to minimize your plant downtime.

Prior to shipment, each unit undergoes a documented pre-shipment inspection including power-on testing and functional output verification. Units are packaged in anti-static bags with foam cushioning and shipped via tracked international courier to ensure safe arrival. Typical lead time from order confirmation to dispatch is 1–3 business days for in-stock units.

Our after-sales support team is available to assist with installation questions, compatibility verification, and commissioning guidance. We maintain detailed records of each shipped unit, enabling rapid cross-referencing in the event of a warranty claim. For urgent replacement requirements, expedited shipping options are available upon request.

Procurement teams can request a formal quotation, proforma invoice, and certificate of conformity for each order. We support payment via T/T bank transfer and other standard B2B payment methods. All units are shipped with a packing list and commercial invoice suitable for customs clearance.
