GE DS215TCQAG1BZZ01A Ruggedized Analog I/O Module for Harsh Environments

Product Overview

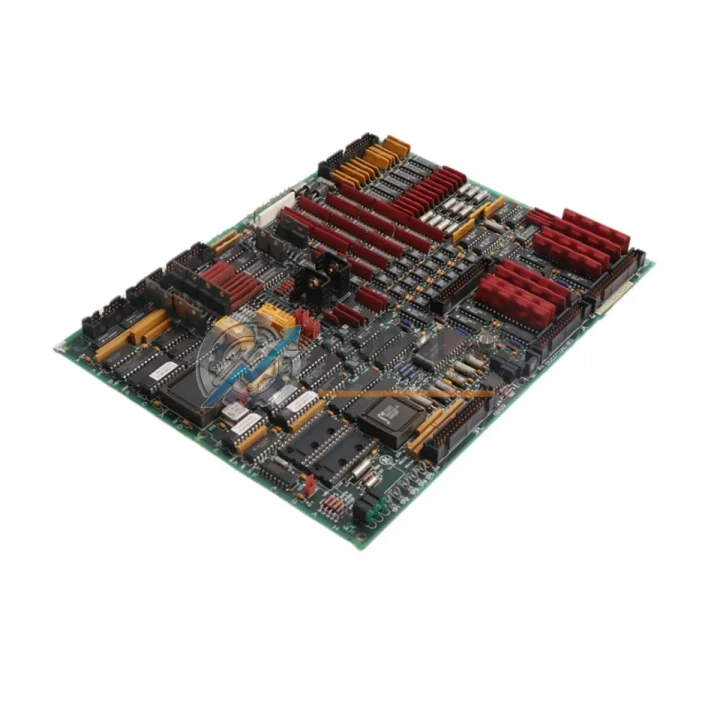

GE DS215TCQAG1BZZ01A Ruggedized Analog I/O Module for Harsh Environments

The GE DS215TCQAG1BZZ01A is a high-reliability Analog I/O Signal Conditioning Board engineered for the GE Mark V Speedtronic turbine control platform — one of the most demanding and safety-critical control architectures deployed in continuous industrial operations worldwide. Designed to perform without compromise in environments characterized by extreme temperature fluctuations, elevated humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this module represents the industrial standard for analog signal integrity in mission-critical applications.

In heavy industrial facilities — from gas turbine power plants and offshore oil platforms to steel mills and petrochemical refineries — the analog I/O layer is the nervous system of the control loop. The DS215TCQAG1BZZ01A conditions raw field signals from thermocouples, RTDs, pressure transmitters, and flow sensors before they reach the Mark V controller core, ensuring that every process variable is accurately represented in real time. Signal drift, noise injection, or board failure at this layer can cascade into turbine trips, production shutdowns, or — in the worst case — safety incidents. This is precisely why sourcing a verified, tested replacement board matters.

The DS215TCQAG1BZZ01A integrates seamlessly within the GE Mark V Speedtronic control cabinet alongside companion boards such as the DS215TCDAG1BZZ01A (Turbine Control Data Acquisition Board), the DS200TCQAG1BDD analog I/O variant, and the DS215TCQCG1BZZ01A signal conditioning module. Together, these boards form the analog front-end of the Mark V’s TMR (Triple Modular Redundancy) architecture, where three independent control paths — the R, S, and T processors — cross-validate every measurement to eliminate single-point failures. The DS215TCQAG1BZZ01A must maintain consistent signal conditioning performance across all three channels to preserve the integrity of this redundancy scheme.

Beyond the Mark V analog layer, the broader control system relies on a tightly integrated ecosystem of GE Speedtronic components. The DS200SDCCG1AFB Speed Detector Control Card monitors shaft speed and provides overspeed protection inputs, while the DS200TCRAG1AAA Turbine Control Relay Board manages discrete output switching for actuators and solenoids. The DS215TCPSG1BZZ01A Power Supply Board delivers regulated DC rails to the entire I/O rack, and the DS200IOCAG1A I/O Controller Board coordinates data flow between the analog conditioning layer and the Mark V processor. Any degradation in the DS215TCQAG1BZZ01A’s signal conditioning performance directly impacts the accuracy of the data these downstream components act upon.

In harsh-environment deployments — particularly in cement plants, mining operations, and offshore gas compression stations — the DS215TCQAG1BZZ01A is exposed to conductive dust, salt-laden air, and vibration profiles that exceed standard commercial electronics ratings. GE’s industrial-grade PCB construction, conformal coating, and robust connector design allow this board to maintain calibrated performance across its full operating temperature range. When a board does reach end-of-life or sustains damage from a surge event, a like-for-like replacement with a tested DS215TCQAG1BZZ01A is the fastest path to restoring turbine availability — far preferable to extended downtime waiting for OEM lead times.

For water treatment facilities and municipal power utilities operating GE Frame 6B or Frame 7EA gas turbines, the Mark V Speedtronic system — anchored by boards like the DS215TCQAG1BZZ01A — provides the analog measurement backbone for combustion control, exhaust temperature monitoring, and load management. Paired with the DS200TCQBG1BDD and the DS215TCQFG1BZZ01A signal conditioning variants, the system delivers the measurement resolution and noise rejection required for emissions compliance and grid-synchronization accuracy.

From a procurement standpoint, TOPNLMS maintains verified stock of the DS215TCQAG1BZZ01A, with each unit subjected to functional testing prior to dispatch. All boards are shipped with anti-static packaging, full documentation, and are covered by a 12-month warranty. Expedited shipping is available to minimize turbine downtime, and our technical team can assist with cross-referencing compatible Mark V Speedtronic board revisions to confirm fitment before your order is placed.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS215TCQAG1BZZ01A does not operate in isolation — it is one node in a tightly coupled protection and control architecture. In a fully configured Mark V Speedtronic cabinet, the analog signal conditioning layer works in concert with the DS200SDCCG1AFB Speed Detector Control Card to provide both continuous process measurement and overspeed trip protection. The DS215TCDAG1BZZ01A Data Acquisition Board aggregates conditioned signals for historian and HMI display, while the DS200TCRAG1AAA Relay Board executes discrete protective actions — fuel valve trips, bleed valve commands, and cooling system activations — based on the analog measurements the DS215TCQAG1BZZ01A delivers.

Power integrity is maintained by the DS215TCPSG1BZZ01A Power Supply Board, which provides the regulated +5 V, ±15 V, and +24 V rails that the analog conditioning circuitry depends on for accurate offset and gain performance. Any ripple or dropout on these rails directly degrades signal conditioning accuracy, making the power supply board a critical companion spare. Communication between the Mark V I/O rack and the operator interface is handled by the DS200IOCAG1A I/O Controller Board, which translates conditioned analog data into the Mark V’s internal communication protocol for display on the Mark V HMI workstation. For facilities also operating GE Mark VI or Mark VIe systems, the DS215TCQAG1BZZ01A’s signal conditioning principles carry forward into the newer IS200TCQAG1A platform, making familiarity with this board directly transferable to next-generation turbine control upgrades.

Application in Critical Infrastructure

The DS215TCQAG1BZZ01A is deployed across the full spectrum of heavy industrial infrastructure where gas turbine reliability is non-negotiable. In oil and gas processing facilities — including LNG terminals, gas compression stations, and offshore production platforms — GE Frame 7EA and Frame 9E turbines drive compressors and generators that must maintain continuous operation. The Mark V Speedtronic system’s analog I/O layer, anchored by boards like the DS215TCQAG1BZZ01A, monitors exhaust gas temperatures, compressor inlet conditions, and fuel flow rates in real time, enabling the control system to optimize combustion efficiency while staying within emissions and mechanical limits.

In power generation — both utility-scale peaker plants and industrial cogeneration facilities — the DS215TCQAG1BZZ01A supports the analog measurement chains that govern load control, frequency response, and grid synchronization. A failed or drifting signal conditioning board in this context can cause turbine trips during peak demand periods, with significant financial and grid-stability consequences. Mining and mineral processing operations running GE turbine-driven grinding mills and conveyor systems face similar risks, compounded by the high-vibration and high-dust environments that accelerate board degradation. Metallurgical plants and steel mills operating continuous casting lines and electric arc furnace power systems rely on Mark V Speedtronic controls to maintain the precise thermal and electrical parameters that product quality demands. In all of these environments, maintaining a verified spare DS215TCQAG1BZZ01A in the control room stores is standard practice for any reliability-focused maintenance program.

Security & Quality FAQ

Q: What warranty is provided with the DS215TCQAG1BZZ01A?
A: Every DS215TCQAG1BZZ01A supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. This covers functional failure under normal operating conditions and includes technical support for installation and commissioning questions.

Q: How is each board tested before shipment?
A: Each DS215TCQAG1BZZ01A undergoes functional verification testing prior to dispatch. Boards are inspected for physical integrity, connector condition, and component-level anomalies. Anti-static packaging is used throughout handling and shipping to prevent ESD damage in transit.

Q: Is this board compatible with all Mark V Speedtronic revisions?
A: The DS215TCQAG1BZZ01A is designed for the GE Mark V Speedtronic platform and is compatible with Frame 6B, Frame 7EA, and Frame 9E turbine control cabinets using the standard Mark V TMR architecture. If you are uncertain about revision compatibility with your specific cabinet configuration, our technical team can assist with cross-referencing before your order is placed.

Q: Can TOPNLMS support long-term or repeat supply of this board?
A: Yes. TOPNLMS maintains ongoing inventory of GE Mark V Speedtronic components, including the DS215TCQAG1BZZ01A and related signal conditioning boards. We support both emergency single-unit procurement and planned multi-unit spare parts programs for facilities managing long-term turbine maintenance schedules.
