GE DS200UPSAG1AFD Replacement Upgrade for Mark VI

Product Overview

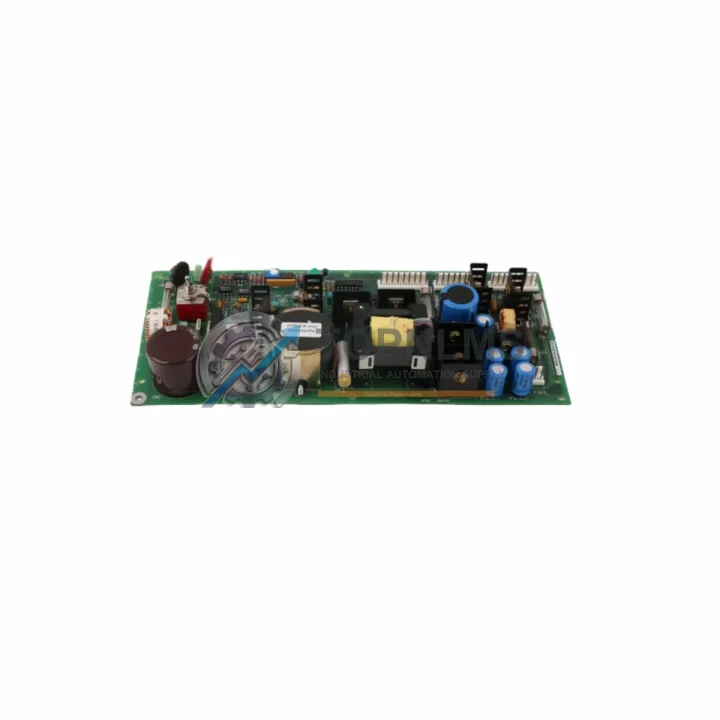

GE DS200UPSAG1AFD Replacement Upgrade for Mark VI: Seamless Transition from Legacy UPS Power Supply

The GE DS200UPSAG1AFD is a critical UPS (Uninterruptible Power Supply) module within the GE Mark VI Turbine Control System platform — one of the most widely deployed distributed control architectures in gas turbine, steam turbine, and combined-cycle power generation facilities worldwide. As GE progressively phases out legacy Mark VI hardware, plant engineers and procurement teams face increasing pressure to source reliable, tested replacement units that can be installed with minimal engineering rework, zero wiring changes, and no control logic modifications.

At TOPNLMS, we stock the DS200UPSAG1AFD as a direct drop-in replacement for failed or end-of-life UPS power supply modules in Mark VI control cabinets. Every unit undergoes pre-shipment functional testing and ships with a 12-month warranty, giving your maintenance team the confidence to proceed with a planned or emergency swap-out.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200UPSAG1AFD replacement rarely happens in isolation. In most Mark VI turbine control modernization projects, the UPS power supply module is one component within a tightly integrated control architecture. During the upgrade or emergency swap process, maintenance engineers typically also address adjacent hardware to ensure system-wide stability.

The DS200UPSAG1AFD feeds conditioned DC power to the Mark VI controller boards housed in the TCCA, TCCB, or TCCC controller racks. If the UPS module has failed due to age or surge damage, it is prudent to simultaneously inspect the DS200TCQAG1BDD TCQA I/O terminal board, which interfaces directly with field wiring and may have sustained transient damage. Similarly, the DS200SDCIG2AGB DC power supply card and DS200DSPCH1ADA digital signal processor card are frequently replaced as a set during planned outages to minimize future unplanned downtime.

For facilities migrating from GE Mark V to Mark VI, the communication architecture shift from ARCNET to IONet (GE’s proprietary 100 Mbps Ethernet-based control network) requires careful attention. The IS200ESELH1A Ethernet switch module and DS200IOCAG1A I/O controller board are commonly procured alongside the UPS module to complete the network infrastructure upgrade within the same maintenance window. Ensuring that the DS200TCEAG1BHF turbine control I/O board is also current-revision prevents firmware incompatibility issues that can arise when mixing card generations within the same rack.

On the field wiring side, engineers replacing the DS200UPSAG1AFD often take the opportunity to upgrade terminal blocks and signal conditioning hardware. The IS200TREGH1B terminal board for redundant excitation and IS200VTURH1BCC vibration terminal board are frequently part of the same bill of materials for a comprehensive Mark VI cabinet refurbishment. Where signal isolation is required between legacy 4–20 mA field instruments and the Mark VI I/O cards, a DIN-rail signal isolator/conditioner (such as those compatible with the IS200 series terminal boards) is added to the control cabinet to protect the new hardware from field-side noise and ground loops.

For sites that also operate GE EX2100 or EX2100e excitation control systems in parallel with the Mark VI turbine controller, the IS200EXHSG2A exciter HMI interface board may require a firmware update or replacement to maintain compatibility with the refreshed UPS power distribution architecture. Procurement teams should confirm the revision level of all IS200-series boards in the excitation cabinet before finalizing the replacement order.

Retrofit Guidance FAQ

Q: Can I replace the DS200UPSAG1AFD without modifying the control program (ToolboxST application)?
A: Yes, for a same-revision replacement (AFD suffix to AFD suffix), no ToolboxST application changes are required. The module is recognized automatically by the Mark VI controller upon power-up. If you are replacing an earlier revision (e.g., AFA or AFB), a minor hardware configuration update in ToolboxST may be needed — consult your GE Mark VI system documentation or contact our technical team before proceeding.

Q: Is the wiring harness compatible with the existing cabinet layout?
A: The DS200UPSAG1AFD uses the standard Mark VI card-edge connector and terminal block arrangement. For direct same-platform replacements, no rewiring is required. The existing AC input wiring, battery connection leads, and DC output bus connections can be reused without modification, significantly reducing installation time and the risk of wiring errors during a live-plant maintenance window.

Q: What communication protocol does this module use, and is it compatible with my existing IONet infrastructure?
A: The DS200UPSAG1AFD communicates status and diagnostics over GE’s IONet protocol (100 Mbps Ethernet, proprietary framing). It is fully compatible with existing Mark VI IONet infrastructure including the IS200ESELH1A Ethernet switch. No additional protocol converters or gateways are required for same-platform installations.

Q: Will this module fit in the existing Mark VI controller cabinet without mechanical modification?
A: Yes. The DS200UPSAG1AFD is designed to the standard Mark VI card form factor and mounts directly into the designated UPS slot in the TCCA, TCCB, or TCCC controller enclosure. No panel cutouts, bracket modifications, or DIN-rail adapters are needed.

Q: How do I verify the module is functioning correctly after installation?
A: After installation, power up the Mark VI system and observe the module’s LED status indicators. Use ToolboxST Diagnostic Viewer to confirm the UPS module is reporting healthy status on the IONet. Verify DC bus voltage at the output terminals with a calibrated multimeter. Battery charge status should be confirmed within 24 hours of installation to ensure the backup capacity is fully restored.

Q: What is the lead time and shipping arrangement?
A: Units are stocked in Xiamen, China and ship within 1–3 business days of order confirmation. International express delivery (DHL / FedEx) typically reaches most destinations within 3–7 business days. Expedited same-day dispatch is available for urgent plant breakdown situations — contact us directly at [email protected] or +86 18359293191.

Warranty Assurance

Every GE DS200UPSAG1AFD unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment testing protocol includes functional power-on verification, DC output voltage measurement, communication interface check, and visual inspection for component-level defects. Units that do not pass all test criteria are quarantined and never shipped.

In the event of a warranty claim, TOPNLMS provides a straightforward replacement process: contact our after-sales team with your order number and a description of the fault, and we will arrange a replacement unit dispatch or full refund within agreed SLA timelines. We understand that control system downtime in power generation or industrial automation environments carries significant operational and financial consequences — our warranty and after-sales response policy is designed to minimize your exposure.

For procurement teams requiring documentation, we can provide test reports, packing lists, and commercial invoices suitable for customs clearance and internal audit purposes. All units are shipped in anti-static packaging with appropriate hazardous-material and fragile-goods labeling.
