GE DS200UPSAG1A Replacement/Upgrade Solution for Mark V

Product Overview

GE DS200UPSAG1A Replacement/Upgrade Solution for Mark V: Smooth Transition from Legacy Turbine Control Systems

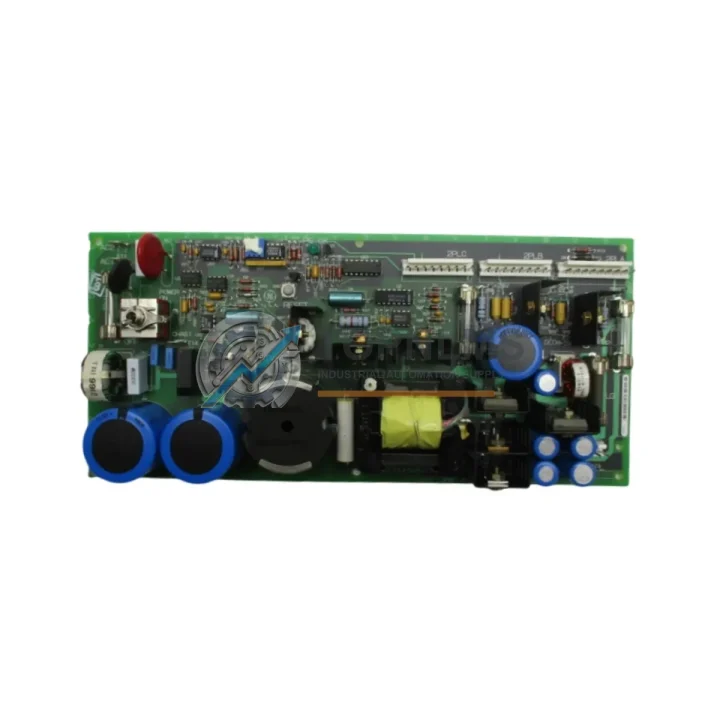

The GE DS200UPSAG1A is a critical power supply board within the GE Mark V Turbine Control System — a platform that has powered gas turbine, steam turbine, and combined-cycle plant control architectures for decades. As the Mark V platform approaches end-of-life and OEM support becomes increasingly limited, plant engineers and procurement teams face mounting pressure to source reliable replacement units or plan a structured upgrade path. TOPNLMS maintains verified stock of the DS200UPSAG1A to support both emergency replacement scenarios and planned migration projects, ensuring your turbine control infrastructure remains operational with minimal disruption.

The DS200UPSAG1A functions as the uninterruptible power supply assembly board within the Mark V and control rack architecture. It conditions and distributes regulated DC power to downstream boards including the TCCA, TCDA, TCQA, and TCEA processor cards, as well as I/O interface boards such as the DS200IOCAG1A and DS200DSPCH1A. Any degradation in the power supply board directly impacts the stability of the entire control rack, making fast, verified replacement essential to avoiding unplanned turbine trips and extended outages.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V power supply replacement rarely occurs in isolation. During the replacement process, field engineers frequently identify adjacent components that require attention or proactive replacement to ensure long-term system stability. When replacing the DS200UPSAG1A, it is common practice to simultaneously inspect and, where necessary, replace the DS200TCQAG1A (TMR voting logic card) and the DS200TCDAG1A (diagnostic and I/O interface card), both of which share the same regulated power rails and are subject to similar aging profiles in long-running turbine control panels.

For sites planning a broader migration from Mark V to the GE Mark VIe platform, the DS200UPSAG1A replacement can serve as a stabilization step while the migration is engineered. The Mark VIe system introduces a distributed I/O architecture using IS200 and IS215 series I/O packs — such as the IS200TBAIH1C terminal board and IS215UCVEH2A controller — which communicate over Ethernet-based IONet rather than the legacy ARCNET bus. Understanding this protocol shift is essential when planning phased migration, as it affects HMI connectivity, historian integration, and DCS interface design.

In parallel, sites operating GE EX2100 or EX2100e excitation control systems should verify that the turbine control power supply replacement does not affect shared DC bus arrangements. The DS200EXHAG1A exciter interface board and associated DS200SDCIG2A DC/DC converter boards are often co-located in the same control cabinet and may share grounding references with the Mark V rack power supply. Proper isolation and grounding verification during the DS200UPSAG1A swap prevents nuisance ground faults and excitation system trips.

For sites where the Mark V communicates with a DCS via Modbus RTU or PROFIBUS, the replacement procedure should include verification of the DS200SLCCG3A serial link communication card settings, as power cycling the rack during board replacement can reset communication parameters. Additionally, if the plant uses a DS200TCPSG1A power supply monitor card alongside the DS200UPSAG1A, both units should be inspected together to ensure coordinated power fault detection remains functional after the swap.

Retrofit Guidance FAQ

Q: Does replacing the DS200UPSAG1A require any wiring changes?
No. The DS200UPSAG1A connects to the Mark V rack via the standard backplane edge connector. No field wiring modifications are required. The board is a direct mechanical and electrical replacement.

Q: Will the turbine control program (application software) be affected?
No. The DS200UPSAG1A is a power supply board with no onboard firmware or application logic. The turbine control application residing on the TCCA/TCDA processor cards is unaffected by the power supply replacement.

Q: Is the DS200UPSAG1A compatible with all Mark V rack configurations (, , )?
Yes. The DS200UPSAG1A is designed for use across the TMR (Triple Modular Redundant) Mark V architecture and is compatible with , , and controller racks, as well as simplex configurations.

Q: What communication protocols does the Mark V use, and does the power supply replacement affect them?
The GE Mark V uses ARCNET for inter-controller communication and IONet (Ethernet-based) in some configurations. The DS200UPSAG1A replacement has no impact on communication protocol settings or network topology.

Q: How much physical space is required for the replacement?
The DS200UPSAG1A occupies a standard Mark V rack slot. No additional cabinet space or mechanical modification is required. The replacement board uses the identical PCB form factor as the original.

Q: Can this board be used as a spare for a Mark V system that is still operational?
Yes. TOPNLMS recommends maintaining at least one verified spare DS200UPSAG1A on-site for critical turbine control applications to minimize potential downtime in the event of an unexpected failure.

Warranty Assurance

Every DS200UPSAG1A unit shipped by TOPNLMS is covered by a 12-Month Warranty from the date of delivery. Prior to shipment, each board undergoes functional verification including power rail output testing, visual inspection for component damage, and continuity checks on all backplane connector pins. Units that do not meet our quality standards are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides replacement or repair support with a target response time of 1–2 business days. Our technical team can assist with failure diagnosis, installation guidance, and compatibility verification to support your maintenance and procurement workflow. We ship globally from our Xiamen warehouse, with express logistics options available for emergency replacement scenarios requiring rapid delivery.

For bulk procurement, long-term supply agreements, or site-wide Mark V spare parts programs, please contact our industrial sales team directly. We maintain ongoing stock of DS200UPSAG1A and related Mark V components to support planned maintenance outages, insurance spare inventories, and migration projects.
