GE DS200UCPBG5AFB Replacement for Mark V Turbine Control

Product Overview

GE DS200UCPBG5AFB Replacement for Mark V Turbine Control: Seamless Migration & Upgrade Solution

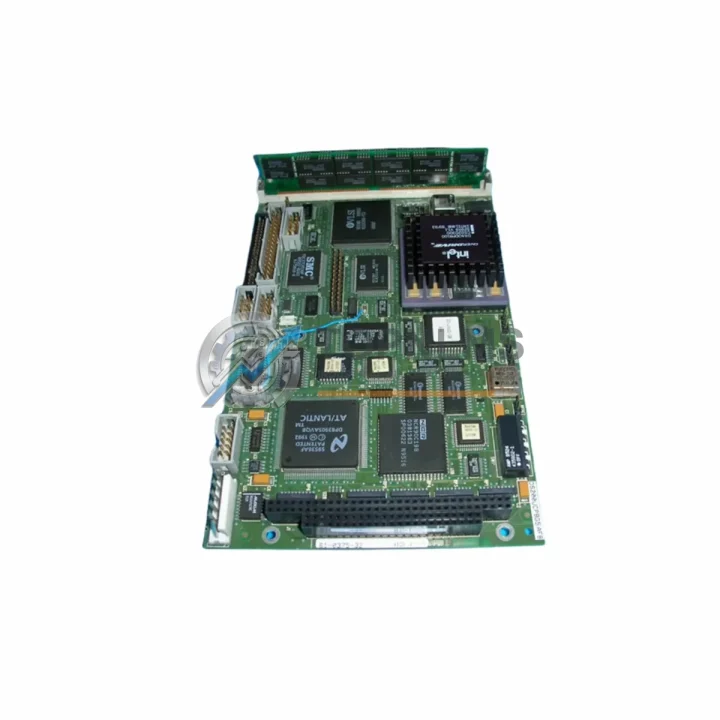

The GE DS200UCPBG5AFB is the Unit Control Processor (UCP) board at the heart of the GE Mark V Turbine Control System — one of the most widely deployed gas and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As GE progressively phases out Mark V hardware in favor of the Mark VIe architecture, plant engineers and procurement teams face a critical challenge: maintaining operational continuity while managing aging spare parts inventories, extended lead times, and the risk of unplanned downtime caused by board-level failures.

TOPNLMS supplies the DS200UCPBG5AFB as a verified replacement and upgrade solution for facilities operating existing Mark V panels. Every unit is sourced from qualified supply chains, subjected to pre-shipment functional inspection, and backed by a 12-month warranty — giving your maintenance team the confidence to proceed with scheduled or emergency replacements without compromising turbine availability.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V turbine control migration rarely involves a single board swap. In practice, the DS200UCPBG5AFB replacement is most effective when coordinated with a broader review of the control panel’s hardware health. During field retrofits, engineers commonly address the DS200SDCIG2AFB Sequence of Events / Digital I/O board alongside the UCP, since both boards share the same ARCNET communication bus and a failure in either can mask the root cause of turbine trips.

Power integrity is equally critical. The DS200PCCAG1ABB Power Circuit board and associated DS200TCQAG1BHF Turbine Control board should be inspected for capacitor aging and solder joint fatigue whenever the UCP is replaced — particularly in panels that have been in continuous service for more than ten years. Replacing the UCP without verifying the power supply rail stability is a common cause of repeat failures in the field.

On the I/O side, facilities migrating from older Mark V configurations frequently encounter degraded DS200IOCAG1A I/O Controller boards and worn DS200TBQCG1AFB terminal board assemblies. These terminal boards interface directly with field wiring — thermocouples, RTDs, 4–20 mA analog signals, and discrete digital inputs — and their condition directly affects the accuracy of turbine protection logic executed by the DS200UCPBG5AFB. Replacing terminal boards at the same time as the UCP eliminates the need for a second outage window.

For facilities planning a phased migration toward the GE Mark VIe platform, the DS200UCPBG5AFB serves as a cost-effective bridge solution. It allows continued operation of the existing Mark V panel while the engineering team prepares the IS420UCSBH2A Mark VIe Unit Controller configuration, I/O mapping, and HMI integration. During this transition period, the HMI Series 1 or Cimplicity-based operator interface typically remains unchanged, preserving operator familiarity and reducing retraining costs.

Communication gateway requirements should also be reviewed. Many Mark V installations use a DS200SLCCG1AFB Serial Link Communications board to bridge the ARCNET bus to Modbus RTU or other plant-level SCADA protocols. Confirming the SLCC board’s firmware version compatibility with the replacement UCP revision is a standard pre-commissioning step that prevents communication dropouts after the board swap.

Finally, for sites that maintain a hot-standby or TMR (Triple Modular Redundant) Mark V configuration, the DS200UCPBG5AFB must be installed in all three controller channels (R, S, T) to maintain voting logic integrity. Partial replacement — installing a new UCP in only one channel — is not recommended for TMR systems, as revision mismatches between channels can introduce spurious trip signals during the synchronization cycle.

Retrofit Guidance FAQ

Q: Can I replace the DS200UCPBG5AFB without shutting down the turbine?
A: In a simplex Mark V configuration, the UCP replacement requires a controlled turbine shutdown. In TMR configurations, channel-by-channel replacement may be possible during a maintenance window with the turbine at reduced load, subject to site safety procedures and GE Mark V maintenance guidelines.

Q: Do I need to reload the turbine control application software after replacing the UCP?
A: Yes. The DS200UCPBG5AFB does not retain the application program in non-volatile memory in the same way as newer controllers. The turbine control application (TCQA, TCCB, or equivalent) must be reloaded from the engineering workstation using the GE Mark V Toolbox software after board installation. Ensure your workstation has the correct software version and a verified backup of the turbine control program before proceeding.

Q: Is the wiring compatible with my existing field terminations?
A: The DS200UCPBG5AFB connects to the Mark V backplane — it does not interface directly with field wiring. Field wiring connects to the terminal boards (e.g., DS200TBQCG1AFB), which remain unchanged during a UCP replacement. No rewiring of field cables is required.

Q: What communication protocols does the DS200UCPBG5AFB support?
A: The board communicates internally via the Mark V ARCNET bus. External communication to SCADA or DCS systems is handled by dedicated communication boards such as the DS200SLCCG1AFB. The UCP itself does not require protocol reconfiguration during a like-for-like replacement.

Q: How do I verify the replacement board is compatible with my specific Mark V revision?
A: Check the board revision suffix (G5AFB in this case) against your Mark V panel’s hardware configuration record. Contact TOPNLMS with your panel serial number and existing board revision — our technical team will confirm compatibility before shipment.

Q: What if my control cabinet has limited space for board removal and reinstallation?
A: The DS200UCPBG5AFB occupies a single standard Mark V rack slot. No additional space is required. The board is extracted and inserted using the standard Mark V board extraction tool. Ensure the rack is de-energized and ESD precautions are followed during handling.

Warranty Assurance

Every GE DS200UCPBG5AFB unit shipped by TOPNLMS is covered by a 12-month warranty from the date of shipment. Our pre-shipment inspection process includes visual examination for physical damage, connector pin integrity check, and where applicable, functional power-on verification. Units that do not pass inspection are quarantined and not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund based on the nature of the defect and the customer’s preference. Our after-sales response target is within 24 hours of a warranty claim submission. Replacement units are dispatched with priority shipping to minimize your facility’s downtime exposure.

For procurement teams requiring documentation, TOPNLMS can provide a certificate of conformance, packing list, and commercial invoice with HS code declaration for customs clearance. We ship from Xiamen, China, with DHL, FedEx, and UPS express options available for urgent requirements. Standard lead time for in-stock units is 3–5 business days from order confirmation.

For volume orders, long-term supply agreements, or technical pre-sales consultation, contact our industrial controls team directly.
