GE DS200TCRAG1ABB Replacement for Mark V Turbine Control: Seamless Migration & Upgrade Solution

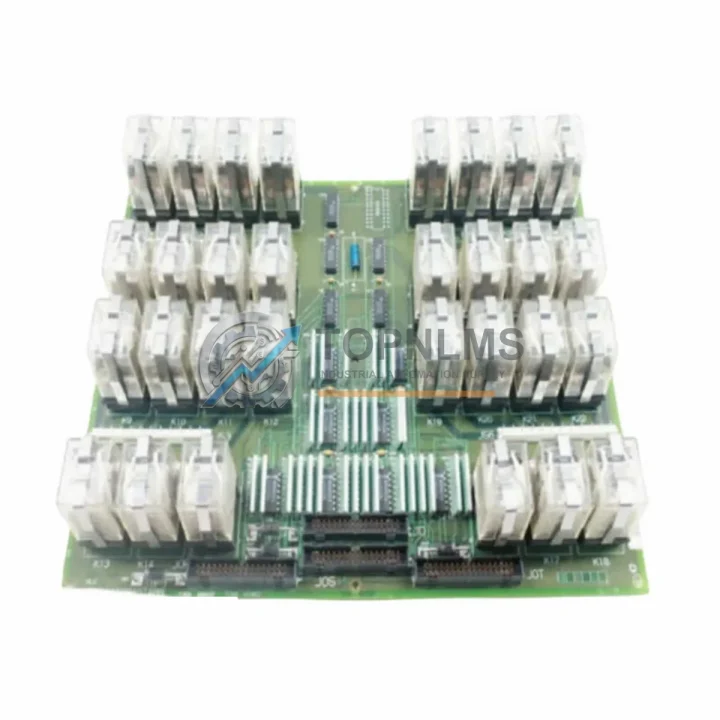

The GE DS200TCRAG1ABB is a relay output board engineered for the General Electric Mark V Turbine Control System — one of the most widely deployed turbine management platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As the Mark V platform approaches end-of-life and spare parts become increasingly scarce, plant engineers and procurement teams face mounting pressure to source verified replacement boards that maintain full backward compatibility with existing wiring, I/O configurations, and control logic.

TOPNLMS supplies the DS200TCRAG1ABB from verified inventory, fully tested prior to dispatch, and backed by a 12-month warranty. Whether you are executing an emergency breakdown replacement or planning a phased migration away from legacy Mark V hardware, this board is a direct drop-in solution that eliminates the need for rewiring or reprogramming your turbine control logic.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V relay output board replacement rarely occurs in isolation. During turbine control system modernization projects, the DS200TCRAG1ABB is typically sourced alongside a range of complementary Mark V and Mark VI components to ensure the entire control architecture is restored or upgraded cohesively.

In TMR (Triple Modular Redundant) configurations, plant engineers frequently replace the DS200TCQAG1BHF Analog I/O Board in the same maintenance window, as analog and relay output boards share the same rack and are subject to similar aging failure modes. The DS200SDCCG3A Speed Detector Card is another common co-replacement item — turbine speed sensing and relay output logic are tightly coupled in Mark V control sequences, and replacing both simultaneously reduces the risk of residual faults triggering nuisance trips after restart.

For sites migrating from Mark V to Mark VIe, the DS200TCRAG1ABB serves as a bridge solution, keeping the existing Mark V rack operational while the new Mark VIe controller and its associated IS200TBAAH1A Terminal Board are commissioned in parallel. This phased approach minimizes turbine downtime and avoids a full cutover outage.

Power integrity is critical in relay output applications. The DS200TCPSG1A Power Supply Board should be inspected and replaced if there is any evidence of voltage ripple or intermittent relay chatter, as degraded rack power is a leading cause of relay output board failures. Similarly, the DS200DSPCH1A Digital Signal Processor Board governs the control logic that drives relay outputs — a verified replacement of both boards together ensures the command chain from processor to output relay is fully restored.

For communication-intensive installations where the Mark V interfaces with a DCS or SCADA system via Modbus or IONET, the DS200TCRAG1ABB works in conjunction with the DS200SLCCG3AFG LAN Communication Card, which handles the serial and Ethernet gateway functions. Ensuring this card is also in good condition is essential before returning the turbine to service.

Finally, for field commissioning and diagnostic work, a GE Mark V Programming Cable (IS200UCSAS1A compatible) is required to interface with the Mark V HMI workstation and verify relay output status via the Cimplicity HMI or equivalent operator interface. TOPNLMS can advise on compatible programming and diagnostic accessories upon request.

Retrofit Guidance FAQ

Q: Does the DS200TCRAG1ABB require any wiring changes when replacing a failed relay output board?
A: No. The DS200TCRAG1ABB is a direct slot-in replacement for the Mark V relay output board position. It uses the same backplane connector and the same 28 VDC rack power supply. Field wiring to the terminal blocks on the Mark V I/O panel does not need to be modified.

Q: Will existing Mark V control programs need to be reloaded or modified after board replacement?
A: In most cases, no reprogramming is required. The Mark V controller retains its application logic in non-volatile memory on the processor boards. After installing the DS200TCRAG1ABB, the system will recognize the board during the next power-up sequence and resume normal relay output operation. A functional test of all relay outputs is recommended before returning the turbine to service.

Q: Is this board compatible with both TMR and Simplex Mark V configurations?
A: Yes. The DS200TCRAG1ABB is compatible with both Triple Modular Redundant (TMR) and Simplex Mark V architectures. Please confirm your rack configuration when placing your order so we can verify the exact board revision required.

Q: What communication protocols does the Mark V relay output board support?
A: The DS200TCRAG1ABB operates on the Mark V internal IONET communication bus and interfaces with the Mark V processor boards via the standard backplane. It does not require independent Modbus or Ethernet configuration — all communication is handled by the Mark V controller architecture.

Q: How much physical space does the board require in the control cabinet?
A: The DS200TCRAG1ABB occupies a standard Mark V card slot. No additional panel space, DIN rail mounting, or cabinet modification is required. It is a direct form-factor replacement.

Q: What is the lead time and shipping arrangement?
A: In-stock units ship within 1–3 business days from our Xiamen warehouse. We support DHL, FedEx, and freight forwarding for international orders. Emergency same-day dispatch is available for critical breakdown situations — contact us directly at [email protected] or +86 18359293191.

Warranty Assurance

Every DS200TCRAG1ABB supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point functional inspection including visual examination for component damage, relay contact continuity testing, and backplane connector integrity verification. Units that do not pass inspection are not shipped.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response time is within 24 hours on business days. We maintain reserve stock of common Mark V boards specifically to support rapid warranty replacements without extended lead times.

All units are shipped in anti-static packaging with protective foam inserts. A test report and inspection certificate are available upon request for quality-assurance documentation requirements.

For procurement teams requiring formal quotations, lead time confirmation, or technical datasheets, contact our industrial automation specialists directly.
