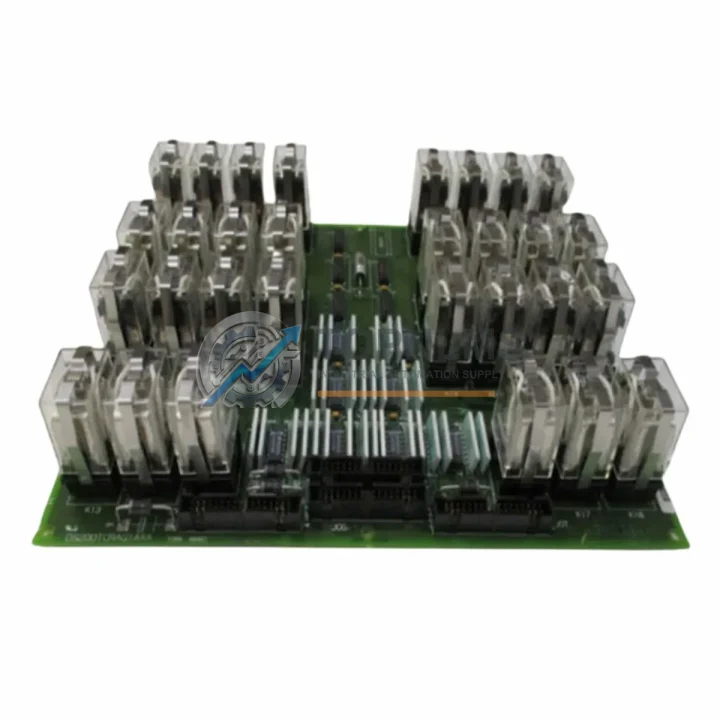

GE DS200TCRAG1AAA Ruggedized Power Supply Board

Product Overview

GE DS200TCRAG1AAA Ruggedized Power Supply Board: Industrial Resilience for Harsh Environments

The GE DS200TCRAG1AAA is a ruggedized power supply board engineered for the GE Mark V Speedtronic turbine control system — one of the most widely deployed gas and steam turbine control platforms in the global power generation and heavy industrial sector. Designed to operate continuously in environments characterized by high temperature, high humidity, airborne particulates, mechanical vibration, and intense electromagnetic interference, this board delivers the stable, conditioned power that mission-critical control architectures demand.

In continuous production environments — from combined-cycle power plants and offshore gas platforms to petrochemical refineries and metallurgical facilities — power supply integrity is the foundation of every control loop. The DS200TCRAG1AAA provides regulated DC output to the Mark V’s processor and I/O subsystems, ensuring that the turbine’s protection logic, sequencing functions, and trip circuits remain fully operational even under adverse grid conditions or local electrical disturbances.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200TCRAG1AAA does not operate in isolation — it is the power backbone for an entire ecosystem of GE Mark V control modules. Within a typical Mark V turbine control cabinet, this board supplies conditioned power to the DS200TCQAG1A (Turbine Control Quad Analog I/O board), the DS200SDCIG2AGB (Speed and Dynamics Control Interface board), and the DS200DSPCH1ADA (Digital Signal Processor board), all of which depend on stable, ripple-free DC rails to execute protection algorithms without false trips.

In installations where the Mark V system is integrated with external safety instrumented systems (SIS), the power supply board’s reliability directly affects the response time of emergency shutdown (ESD) logic. Facilities running GE Mark V TMR (Triple Modular Redundant) configurations rely on three independent power supply channels — each populated with a DS200TCRAG1AAA equivalent — to achieve the fault-tolerant architecture required for SIL 2 and SIL 3 rated protection loops.

Beyond the Mark V rack itself, the DS200TCRAG1AAA supports stable operation of associated field devices: 4–20 mA analog input modules, RTD and thermocouple signal conditioning cards, LVDT position transducer interfaces, and discrete I/O terminal boards that connect to field instrumentation across the turbine skid. When power supply boards degrade — exhibiting voltage droop, increased ripple, or thermal runaway — the downstream effect cascades through every connected I/O channel, producing erratic readings, nuisance trips, and ultimately unplanned outages.

For facilities managing mixed-generation turbine fleets, TOPNLMS also stocks complementary GE Mark V components including the DS200TCRAG1BBA (revision B variant), DS200TCEAG1BHF (Turbine Control Excitation Analog board), and DS200TCDAG1AAA (Turbine Control Discrete Analog board), enabling complete rack-level restoration without sourcing from multiple vendors.

Application in Critical Infrastructure

The GE DS200TCRAG1AAA is a proven component in some of the world’s most demanding industrial environments. In combined-cycle power plants, Mark V systems govern both gas turbine and steam turbine trains simultaneously; a failed power supply board can force a full unit trip, costing operators tens of thousands of dollars per hour in lost generation revenue. Maintaining a qualified spare DS200TCRAG1AAA on-site is standard practice for any reliability-centered maintenance (RCM) program.

In offshore oil and gas platforms, where replacement logistics are constrained by helicopter access windows and weather delays, the DS200TCRAG1AAA’s robust construction — with conformal-coated PCB layers and high-reliability capacitor selection — provides the mean time between failures (MTBF) margins that offshore maintenance teams require. The board’s tolerance for salt-laden, high-humidity atmospheres makes it suitable for platform compressor trains and gas injection turbines operating in marine environments.

In mining and mineral processing facilities, where heavy equipment generates persistent vibration and electrical noise, the DS200TCRAG1AAA’s shielded power conversion architecture maintains output stability even when adjacent variable frequency drives (VFDs), large motor starters, and arc furnace rectifiers introduce significant harmonic distortion onto the facility power bus. The board’s internal filtering suppresses conducted interference before it reaches the Mark V’s sensitive processor and communication modules.

In water treatment and municipal utility applications, where continuous 24/7 operation is mandated and scheduled maintenance windows are narrow, the DS200TCRAG1AAA enables rapid board-swap replacement — restoring turbine control functionality within minutes rather than the hours required for component-level repair. This plug-and-play replaceability is a key procurement consideration for plant engineers managing aging Mark V installations.

In metallurgical and steel production environments, where blast furnace blowers and rolling mill drives are governed by turbine-driven compressors, the DS200TCRAG1AAA ensures that the Mark V’s protective relay logic — overspeed, overtemperature, vibration trip — remains armed and responsive throughout the production cycle, protecting both personnel and capital equipment from catastrophic failure events.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TCRAG1AAA?
The 12-month warranty covers all functional failures attributable to component defects or workmanship under normal operating conditions consistent with GE Mark V system specifications. If the board fails to perform its rated power supply function within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is each DS200TCRAG1AAA tested before shipment?
Every DS200TCRAG1AAA unit undergoes a multi-stage pre-shipment inspection: visual inspection for physical damage, PCB trace integrity check, powered functional test verifying output voltage regulation and ripple within OEM tolerances, and thermal cycling verification. Units that do not pass all test stages are quarantined and not offered for sale. A test report is available upon request for critical procurement applications.

Q3: Is the DS200TCRAG1AAA compatible with both TMR and Simplex Mark V configurations?
Yes. The DS200TCRAG1AAA is designed for use in both Triple Modular Redundant (TMR) and Simplex GE Mark V Speedtronic control systems. It is form-fit-function compatible with the original GE specification and can be installed as a direct replacement without firmware modification or rack reconfiguration. Always verify the revision suffix (e.g., G1AAA) against your existing board to confirm exact compatibility.

Q4: Can TOPNLMS support long-term supply for DS200TCRAG1AAA as part of an ongoing maintenance contract?
Yes. TOPNLMS maintains standing inventory of high-demand GE Mark V spare parts and can support blanket purchase orders, scheduled delivery programs, and emergency expedite requests. For facilities managing multiple turbine units or planning multi-year maintenance budgets, contact our technical sales team to discuss volume pricing, reserved stock agreements, and cross-reference support for obsolete or superseded part numbers.
