GE DS200TCQEG2AED Replacement/Upgrade for Mark V

Product Overview

GE DS200TCQEG2AED Replacement/Upgrade Solution for Mark V Speedtronic: Smooth Transition from Legacy Control Systems

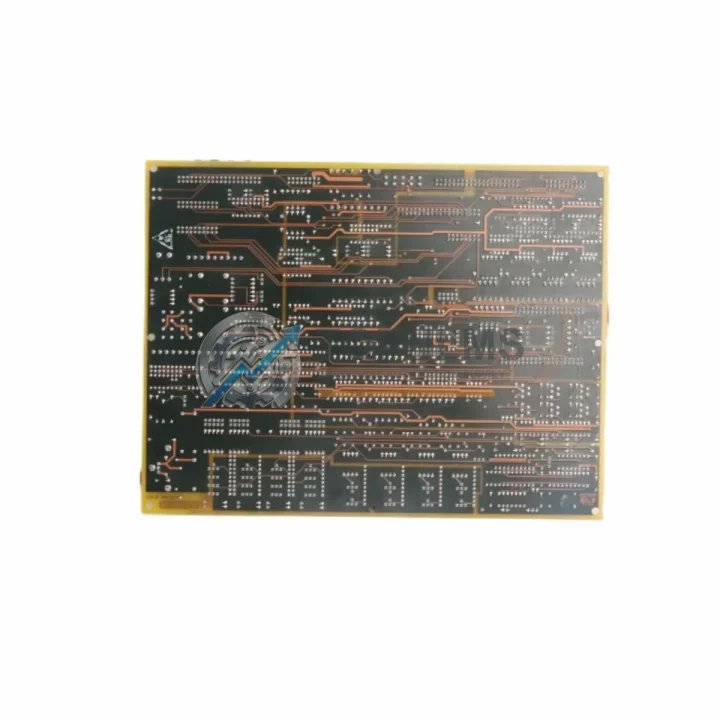

The GE DS200TCQEG2AED is the main control board (TCQE board) used in the GE Mark V Speedtronic turbine control system — one of the most widely deployed gas turbine and steam turbine control platforms in power generation, oil & gas, and heavy industrial facilities worldwide. As GE has progressively discontinued support for the Mark V platform, operators are increasingly confronted with the challenge of sourcing reliable replacement boards or planning a structured migration to a supported control architecture.

At TOPNLMS, we supply tested, verified DS200TCQEG2AED boards to support both direct drop-in replacement and phased system upgrade strategies. Whether your plant is managing an emergency board failure or executing a planned retrofit, our inventory and technical support are structured to minimize your downtime and protect your capital investment.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200TCQEG2AED replacement or Mark V system upgrade rarely involves a single board in isolation. In practice, field engineers must assess the condition and compatibility of the surrounding hardware before commissioning the replacement unit. During the upgrade process, the following components are commonly evaluated or replaced alongside the TCQE board:

The DS200SDCCG3A (Speed and Dynamics Control Card) works in close coordination with the TCQE board to manage turbine speed sensing and dynamic response. If the SDCC board shows signs of degradation — erratic speed signals, communication faults on the ARCNET bus, or failed self-diagnostics — it should be replaced concurrently to avoid masking the root cause of control anomalies after the TCQE swap.

The DS200TCDAG1AED (Turbine Control Distribution Board) handles I/O signal routing between the TCQE and field devices. Wiring integrity at the TCDA terminal blocks should be verified before and after the TCQE replacement, as corroded or loose terminations can generate false fault codes that complicate commissioning.

Power supply stability is critical during the transition. The DS200PSDAG1A power supply module provides the regulated DC rails that the TCQE board depends on. A failing PSU can cause intermittent resets or corrupt board initialization sequences, so PSU output voltages should be measured under load before the new TCQE board is inserted.

For plants that are simultaneously upgrading their HMI layer, the GE Cimplicity SCADA interface or a modern third-party HMI panel can be integrated with the Mark V system via the existing serial communication ports, provided the communication protocol mapping is correctly configured. This allows operators to modernize the operator interface without replacing the entire control system.

In multi-controller Mark V configurations (TMR — Triple Modular Redundant), the DS200TCQEG2AED may need to be replaced in all three controller slots to maintain voting logic integrity. The DS200TCEAG1BDD (Turbine Control Expander Board) and associated I/O expander modules should also be inspected for firmware revision compatibility when upgrading the primary TCQE board.

For facilities planning a longer-term migration from Mark V to GE Mark VIe, the DS200TCQEG2AED replacement serves as a bridge solution — maintaining turbine availability while the engineering team completes the Mark VIe migration design, I/O mapping, and operator training. The IS200TBAAH1A terminal board assemblies used in Mark VIe systems are not directly compatible with Mark V wiring, so a phased approach using verified Mark V spares is the most cost-effective strategy for minimizing production risk during the transition period.

Retrofit Guidance FAQ

Q: Can I replace the DS200TCQEG2AED without reprogramming the Mark V application?
A: Yes. The TCQE board stores the application software on the Mark V system’s shared memory and does not hold application logic locally. A direct board swap does not require reloading or modifying the turbine control application, provided the replacement board revision is compatible with your system’s firmware baseline.

Q: What communication protocol does the DS200TCQEG2AED use, and is it compatible with my existing network?
A: The Mark V system uses ARCNET as its internal communication bus. The DS200TCQEG2AED communicates natively over ARCNET and is fully compatible with the existing Mark V ARCNET topology. No protocol converters or additional communication modules are required for a direct replacement.

Q: How do I verify physical compatibility before installation?
A: Confirm the board revision suffix (G2AED) matches your system’s hardware baseline. Inspect the backplane connector pins for damage. Verify that the rack slot is correctly assigned in the Mark V configuration. Check that the power supply rails are within specification before inserting the new board.

Q: What if my control cabinet has space constraints?
A: The DS200TCQEG2AED is a standard VME form-factor card and occupies the same physical slot as the original board. No cabinet modifications, additional mounting hardware, or cable extensions are required for a direct replacement.

Q: How should I handle the transition if the turbine cannot be taken offline for an extended period?
A: In TMR Mark V configurations, individual controller boards can sometimes be replaced during a maintenance window without a full turbine shutdown, subject to your site safety procedures and GE’s maintenance guidelines. Consult your site’s control system engineer and review the Mark V maintenance manual before attempting a hot-swap procedure.

Warranty Assurance

Every DS200TCQEG2AED unit supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a functional verification process including power-on self-test, communication bus check, and visual inspection for component condition and connector integrity.

If a unit develops a functional defect within the warranty period, TOPNLMS will provide a replacement unit or arrange repair at no additional cost to the buyer. Our after-sales response target is within 24 hours of a warranty claim submission. We maintain buffer stock of critical Mark V boards specifically to support rapid warranty replacements without extended lead times.

For procurement teams, we can provide a test report and shipping documentation upon request. Units are packaged in anti-static protective packaging and shipped via tracked international courier. Typical transit time from our Xiamen warehouse to major industrial hubs in Europe, the Middle East, Southeast Asia, and the Americas is 3–7 business days.

For volume orders, long-term supply agreements, or emergency same-day dispatch requirements, please contact our technical sales team directly.
