GE DS200TCQBG1BBC Replacement for Mark VI RST Series

Product Overview

GE DS200TCQBG1BBC Replacement for Mark VI RST Series: Seamless Transition & Legacy System Upgrade

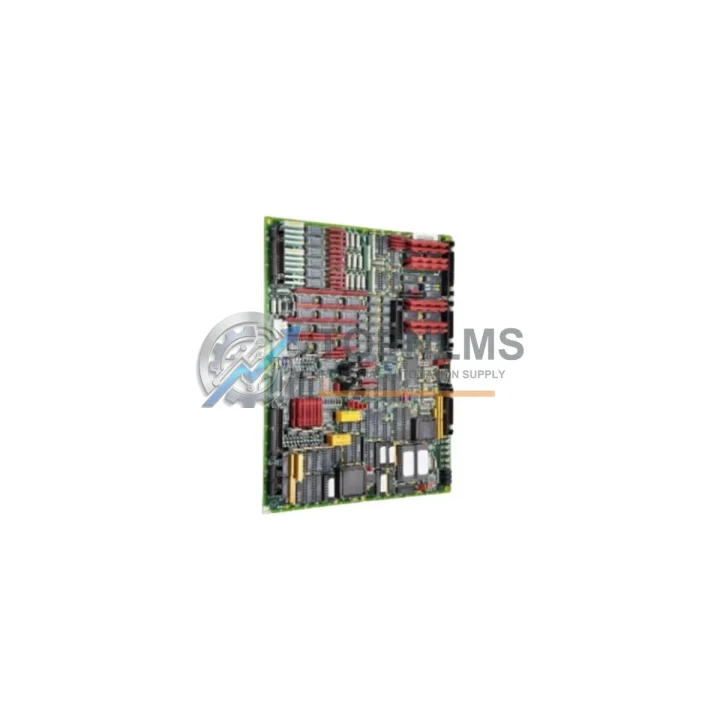

The GE DS200TCQBG1BBC is a critical RST Overflow Board designed for GE Mark VI turbine control systems. As aging Mark VI installations approach end-of-support milestones, plant engineers and procurement teams face increasing pressure to source verified replacement boards that maintain full backward compatibility with existing wiring harnesses, I/O termination panels, and communication architectures. TOPNLMS supplies the DS200TCQBG1BBC from verified inventory, pre-tested and ready to ship, enabling a smooth drop-in replacement that minimizes turbine downtime and avoids costly control system overhauls.

Whether you are replacing a failed board in an operating Mark VI cabinet or building a retrofit strategy to extend the service life of your turbine control platform, the DS200TCQBG1BBC integrates directly into the existing Mark VI VCMI/VCRC rack architecture. The board retains the original connector pinout, allowing field technicians to reconnect existing cable assemblies without rewiring. This is especially valuable in brownfield installations where the control cabinet layout, cable routing, and terminal block assignments have been fixed for years and cannot be easily modified during a short maintenance window.

In a typical Mark VI turbine control system, the RST Overflow Board works in close coordination with other boards in the same rack, including the DS200TCQAG1B TCQA Analog I/O Board, the DS200TCDAG1A TCDA Discrete I/O Board, and the DS200TCEAG1B TCEA Excitation Board. When one board in this tightly coupled architecture fails, the entire turbine protection and sequencing logic can be affected. Sourcing a verified DS200TCQBG1BBC replacement from a stocked supplier like TOPNLMS allows maintenance teams to restore the full board set to operational status without waiting weeks for factory lead times.

For sites migrating from older Mark V or early Mark VI revisions to a more current Mark VI or Mark VIe architecture, the DS200TCQBG1BBC serves as a transitional component that preserves the existing I/O wiring infrastructure while the broader migration is planned and budgeted. The board communicates over the IONet Ethernet-based I/O network used throughout the Mark VI platform, ensuring compatibility with the UCVEH or UCVEG controller cards already installed in the system. No firmware changes or protocol adapters are required for a direct replacement.

Physical installation follows the standard Mark VI board extraction and insertion procedure. The board is secured in the rack via the standard card guide and front-panel locking mechanism. Power is supplied through the backplane at +5 VDC and ±15 VDC, consistent with all other boards in the Mark VI I/O rack. Field technicians familiar with the DS200TCQBG1B or DS200TCQBG1A predecessor revisions will find the installation process identical, with no changes to the physical form factor or connector layout.

For sites that are executing a broader control system modernization — for example, replacing a full Mark VI cabinet with a Mark VIe distributed control architecture — the DS200TCQBG1BBC can be retained as a spare or used to keep the legacy system operational during the transition period. This parallel-run strategy is common in power generation facilities where turbine availability requirements prevent a hard cutover. During this period, the existing VCMI I/O module, VCRC relay output card, and associated JR1/JR2 terminal boards continue to operate normally alongside the new architecture, with the DS200TCQBG1BBC maintaining RST overflow protection logic throughout.

TOPNLMS maintains stock of the DS200TCQBG1BBC and related Mark VI boards to support urgent replacement scenarios. All units are inspected and function-tested prior to shipment. Orders placed before the daily cutoff are dispatched the same business day from our Xiamen warehouse, with DHL Express and FedEx International Priority options available for time-critical plant maintenance situations.

Compatibility Comparison Table

Seamless Upgrade Solutions

A complete Mark VI RST board replacement or system migration typically involves more than a single board. Depending on the scope of your retrofit, the following components are commonly sourced alongside the DS200TCQBG1BBC:

• The DS200TCQAG1B TCQA Analog I/O Board handles analog signal conditioning in the same rack and is frequently replaced as part of a full I/O board set refresh.
• The DS200TCDAG1A TCDA Discrete I/O Board manages discrete input and output channels and shares the same backplane power and IONet communication bus.
• The DS200TCEAG1B TCEA Excitation Board is critical for generator excitation control and is often evaluated for replacement during the same maintenance outage.
• The IS200VCMIH2C VCMI I/O Module serves as the primary I/O interface controller in the Mark VI rack and must be confirmed compatible before board-level replacements are finalized.
• The DS200TCPSG1A TCPS Power Supply Board provides regulated backplane power; a failing power supply can cause cascading board failures and should be inspected when replacing any Mark VI board.
• The IS200VCRCH1BBB VCRC Relay Output Card controls relay-driven outputs in the turbine protection circuit and is commonly stocked as a companion spare to the DS200TCQBG1BBC.
• For sites requiring programming or configuration access, the GE Mark VI Toolbox programming cable and software interface is necessary to verify board configuration parameters after replacement.
• The JR1 / JR2 terminal boards provide the physical wiring termination points for field cables; verifying terminal board condition during a board replacement prevents intermittent connection faults after commissioning.
• Signal isolators and surge protection modules installed on the field wiring side should also be inspected, as transient events that damaged the DS200TCQBG1BBC may have also stressed upstream signal conditioning components.

Retrofit Guidance FAQ

Q: Does replacing the DS200TCQBG1BBC require rewiring the field cables?
A: No. The DS200TCQBG1BBC uses the same connector pinout as predecessor RST Overflow Board revisions. Existing cable assemblies connect directly without modification.

Q: Is the DS200TCQBG1BBC compatible with both Mark VI and Mark VIe systems?
A: The board is designed for the Mark VI platform. In Mark VIe migrations, it is typically used to maintain the legacy Mark VI rack in service during a parallel-run transition period. Confirm with your GE system documentation for your specific architecture.

Q: What communication protocol does the DS200TCQBG1BBC use?
A: The board communicates over GE’s IONet Ethernet-based I/O network, which is standard across the Mark VI platform. No protocol adapters or converters are required.

Q: How much physical space does the board require in the cabinet?
A: The DS200TCQBG1BBC occupies a single card slot in the standard VCMI/VCRC rack. No additional cabinet space is required beyond the existing slot vacated by the failed board.

Q: Is firmware reconfiguration required after installation?
A: In most direct replacement scenarios, no firmware changes are required. However, it is recommended to verify board configuration parameters using GE Mark VI Toolbox after installation to confirm all settings match the system baseline.

Q: Can TOPNLMS supply multiple boards for a full rack refresh?
A: Yes. TOPNLMS maintains stock of multiple Mark VI board types and can fulfill multi-board orders for planned maintenance outages or emergency replacements. Contact us for availability and lead times.

Warranty Assurance

Every DS200TCQBG1BBC supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each unit undergoes a visual inspection and functional verification process to confirm board integrity. If a unit is found to be defective on arrival or fails within the warranty period under normal operating conditions, TOPNLMS will provide a replacement unit or issue a refund, subject to return verification.

Orders are processed and dispatched from our Xiamen warehouse, typically on the same business day for orders received before the daily cutoff. DHL Express and FedEx International Priority shipping options are available for urgent plant maintenance requirements. Tracking information is provided upon dispatch.

For procurement teams requiring documentation, TOPNLMS can provide a packing list, commercial invoice, and certificate of conformance upon request. All units are packed in anti-static protective packaging suitable for international air freight.

For stock inquiries, bulk pricing, or technical compatibility questions, contact our team directly:

📧 [email protected] | 📞 +86 18359293191
