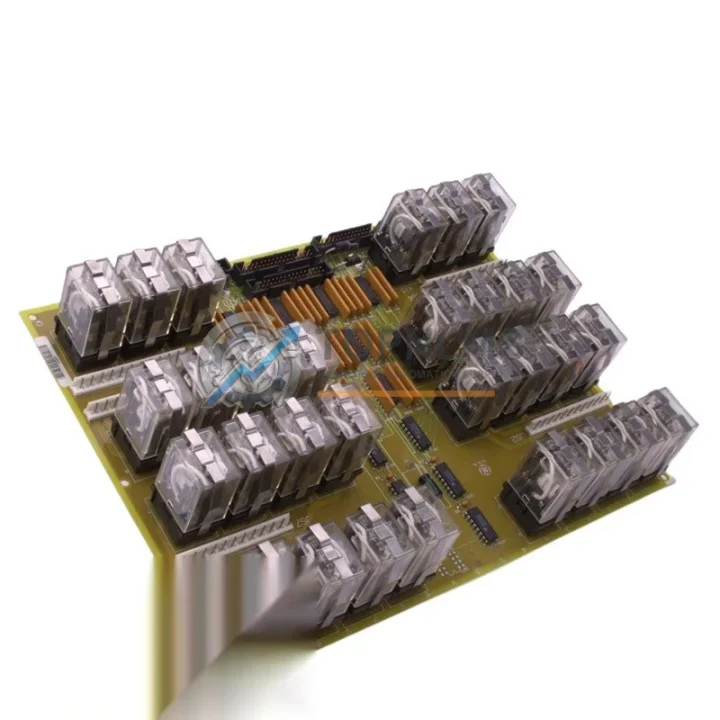

GE DS200TCQBG1BBA Ruggedized Digital I/O Module – Mark V

Product Overview

GE DS200TCQBG1BBA Ruggedized Digital I/O Module – Mark V: Industrial Resilience for the Harshest Environments

The GE DS200TCQBG1BBA is a ruggedized Digital I/O Expansion Board engineered for the GE Mark V Turbine Control System — one of the most demanding and safety-critical control platforms deployed in power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate continuously under extreme thermal cycling, high-humidity conditions, pervasive particulate contamination, mechanical vibration, and intense electromagnetic interference, this board delivers the signal integrity and channel reliability that mission-critical turbine control demands.

In environments where a single I/O failure can trigger an unplanned turbine trip, cascade shutdown, or safety system activation, the DS200TCQBG1BBA provides the deterministic digital signal processing that plant engineers and control system integrators depend on. Its robust PCB construction, conformal coating, and hardened connector interfaces are purpose-built to sustain reliable operation across the full lifecycle of a Mark V installation — from initial commissioning through decades of continuous baseload or peaking service.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200TCQBG1BBA does not operate in isolation — it is a critical node within a tightly integrated Mark V control architecture. In a typical turbine control cabinet, this digital I/O board works in concert with the DS200TCQAG1BBA and DS200TCQCG1BBA variants to provide redundant I/O channel coverage across the turbine’s protection and sequencing logic. The DS200SDCCG3A Speed and Dynamics Control Card manages turbine speed reference and acceleration control, while the DS200DSPCH1A Digital Signal Processor Card handles high-speed computational tasks that underpin the Mark V’s real-time control loops.

On the power distribution side, the DS200PCCAG1A Power Supply and Control Card ensures stable, conditioned DC power delivery to all rack-mounted boards — including the DS200TCQBG1BBA — even when upstream AC supply quality is degraded by generator switching transients or utility grid disturbances. For analog signal acquisition, the DS200TCEAG1BBA Analog I/O Expansion Board complements the digital I/O channels of the DS200TCQBG1BBA, together providing the Mark V with a complete picture of turbine operating parameters including exhaust temperatures, inlet pressures, and vibration amplitudes.

Communication integrity across the Mark V rack is maintained by the DS200TCRAG1BBA Communication Interface Board, which bridges the internal IONET backplane to external plant DCS networks — typically a GE Speedtronic or third-party DCS platform. In installations where the Mark V interfaces with a broader plant automation layer, the IS200TREGH1B Terminal Board provides the field-wiring termination points that connect the DS200TCQBG1BBA’s digital outputs to field devices such as solenoid valves, relay coils, and safety interlock circuits. Relay output modules and terminal blocks from the IS200 series further extend the reach of the digital I/O signals into the physical plant environment, ensuring that turbine trip commands, fuel valve actuations, and alarm relay closures are executed with the speed and reliability that safety systems demand.

Application in Critical Infrastructure

The GE DS200TCQBG1BBA is deployed across some of the world’s most demanding industrial environments. In combined-cycle power plants, it manages the digital sequencing logic for gas turbine start-up, load transfer, and emergency shutdown — operations where microsecond-level I/O response times and zero false-trip tolerance are non-negotiable. In offshore oil and gas platforms, where salt-laden air, constant mechanical vibration from wave action, and the ever-present risk of explosive atmospheres make component reliability a safety imperative, the conformal-coated DS200TCQBG1BBA sustains reliable operation inside pressurized, climate-controlled control rooms.

In mining and mineral processing facilities, where high-voltage motor switching generates severe electromagnetic transients and airborne conductive dust poses a constant contamination risk, the board’s shielded I/O architecture and robust PCB construction prevent signal corruption that could otherwise cause nuisance trips or, worse, missed protective shutdowns. Steel mills and aluminum smelters operating continuous casting lines rely on Mark V-controlled turbine generators for captive power generation; in these facilities, the DS200TCQBG1BBA’s ability to sustain reliable digital I/O under radiated EMI from large induction furnaces and arc furnaces is a key operational asset.

In water treatment and pumping stations where Mark V-controlled gas turbine generators provide backup power for critical infrastructure, and in petrochemical refineries where turbine-driven compressors and pumps operate continuously in classified hazardous areas, the DS200TCQBG1BBA’s proven field reliability makes it the preferred replacement choice when original boards reach end-of-life or suffer storm-related damage. Its direct plug-in compatibility with the Mark V rack eliminates the engineering risk and commissioning time associated with cross-platform substitutions.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TCQBG1BBA?
The 12-month warranty covers all manufacturing defects and functional failures arising under normal operating conditions consistent with GE Mark V installation specifications. If the board fails to perform its specified digital I/O functions within the warranty period, TOPNLMS will provide a replacement unit or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is the DS200TCQBG1BBA tested before shipment?
Every DS200TCQBG1BBA unit undergoes a multi-stage pre-shipment inspection that includes visual inspection for PCB damage, component integrity checks, and functional verification of digital I/O channel continuity and logic response. Refurbished units are additionally subjected to burn-in testing to screen for early-life failures before dispatch. A test report is available upon request for critical plant applications.

Q3: Is the DS200TCQBG1BBA compatible with both TMR and Simplex Mark V configurations?
Yes. The DS200TCQBG1BBA is compatible with both Triple Modular Redundant (TMR) and Simplex Mark V rack configurations. It interfaces directly with the Mark V backplane and is interoperable with the full DS200 and IS200 series board ecosystem. Customers are advised to confirm their specific rack revision and backplane connector type prior to ordering; TOPNLMS technical support can assist with compatibility verification.

Q4: Can TOPNLMS support long-term or repeat supply of the DS200TCQBG1BBA for ongoing maintenance programs?
Yes. TOPNLMS maintains standing inventory of high-demand Mark V series boards including the DS200TCQBG1BBA to support planned maintenance shutdowns, emergency replacements, and multi-unit plant standardization programs. We can provide volume pricing, reserved stock agreements, and expedited shipping for customers with recurring procurement needs. Contact our team to discuss a supply framework tailored to your plant’s maintenance schedule.
