GE DS200TCPSG1ARE Replacement for Mark V Series: Smooth Transition & Legacy System Compatibility

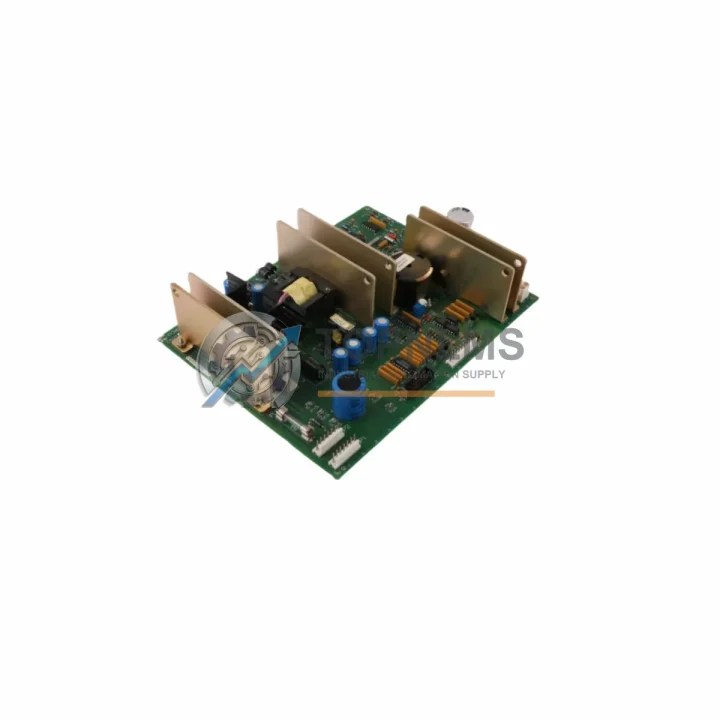

The GE DS200TCPSG1ARE is a Turbine Signal Input Board designed for the GE Mark V Turbine Control System — one of the most widely deployed turbine control platforms in power generation, oil & gas, and industrial process facilities worldwide. As GE progressively phases out Mark V hardware in favor of the Mark VIe platform, many plant operators face the critical challenge of sourcing reliable, drop-in replacement boards to maintain operational continuity without committing to a full control system overhaul.

TOPNLMS supplies the DS200TCPSG1ARE as a direct replacement and upgrade solution for facilities running legacy Mark V configurations. Each unit is sourced, inspected, and dispatched from our Xiamen warehouse, with full traceability documentation and a 12-month warranty. Whether you are managing an emergency breakdown, building a critical spare inventory, or executing a phased migration strategy, this board is engineered to restore your turbine control loop with minimal engineering intervention.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful Mark V turbine control system retrofit rarely involves a single board in isolation. In practice, the DS200TCPSG1ARE is most commonly replaced or upgraded alongside a broader set of Mark V components. During commissioning and site surveys, engineers frequently encounter concurrent failures or end-of-life conditions in the DS200TCQAG1BHF Turbine Control Quad Analog Board and the DS200TCEAG1BHF Turbine Control Exciter Analog Board, both of which share the same Mark V rack and backplane power architecture as the TCPSG board.

For facilities upgrading their I/O infrastructure, the DS200IOCAG1D I/O Controller Board is a natural companion replacement — it manages the communication bridge between the Mark V processor and field I/O modules, and its failure mode often presents symptoms similar to a faulty signal input board. Pairing the DS200TCPSG1ARE replacement with a verified DS200IOCAG1D ensures the entire signal chain is restored to specification.

On the communication side, Mark V systems relying on the DS200SLCCG1AFG Serial Link Communication Card for HMI or historian connectivity should have this module inspected during any board-level replacement campaign. Degraded serial communication cards are a common source of intermittent alarms that are misdiagnosed as signal input board faults. Similarly, the DS200TCDAG1ABB Turbine Control Diagnostic Board should be verified functional before and after the TCPSG swap to confirm that diagnostic loop integrity is maintained.

For plants executing a partial migration toward the Mark VIe platform, the DS200TCPSG1ARE serves as a cost-effective bridge solution while the IS420UCSBH2A Mark VIe UCB Controller Board and associated IS200TRLYH1B Relay Output Terminal Board are being engineered into the new control cabinet. This phased approach allows turbine operation to continue uninterrupted on the proven Mark V architecture while the new Mark VIe I/O packs and IS200EACFG1A Exciter Analog Control Board are staged, tested, and validated offline.

Where control cabinet space is constrained, the DS200TCPSG1ARE installs without any physical modification to the existing Mark V rack. This is a significant advantage over alternative retrofit solutions that require new DIN rail mounting, additional terminal blocks, or signal isolators. For sites that do require signal conditioning between legacy field instruments and the replacement board, a DIN-rail-mounted signal isolator compatible with 4–20 mA and discrete input channels can be inserted inline without affecting the Mark V application program.

Retrofit Guidance FAQ

Q: Can I replace the DS200TCPSG1ARE without modifying the existing field wiring?
A: Yes. The DS200TCPSG1ARE uses the same terminal block pinout and connector layout as earlier TCPSG revisions. Field wiring connected to the original board can be transferred directly to the replacement unit without any rewiring or re-labeling. Always de-energize the rack and follow your site’s lockout/tagout procedure before board removal.

Q: Do I need to reload or modify the Mark V application program after replacement?
A: No application code changes are required for a direct board replacement. The Mark V controller will recognize the DS200TCPSG1ARE on power-up using the existing configuration. If the replacement is part of a broader Mark VIe migration, consult your GE Speedtronic application engineer for any required I/O mapping updates in the new platform’s toolbox.

Q: Is the DS200TCPSG1ARE compatible with both TMR (Triple Modular Redundant) and Simplex Mark V configurations?
A: Yes. The TCPSG board is used in both TMR and Simplex Mark V architectures. Ensure you are replacing the correct slot position in a TMR system — all three redundant boards should ideally be replaced as a matched set to maintain voting logic integrity.

Q: What communication protocols does the DS200TCPSG1ARE support?
A: The board communicates via the Mark V internal IONET bus, which is a proprietary GE serial communication architecture. It does not natively support Modbus, PROFIBUS, or Ethernet/IP. If your upgrade path requires integration with a modern DCS or SCADA system using these protocols, a protocol gateway or the Mark VIe migration path with its native Ethernet-based IONet should be evaluated.

Q: What physical space does the replacement require in the control cabinet?
A: The DS200TCPSG1ARE occupies a single standard Mark V board slot. No additional cabinet space, DIN rail, or mounting hardware is required. The board slides directly into the existing rack slot and locks with the standard Mark V board ejector mechanism.

Q: How do I verify the replacement board is functioning correctly after installation?
A: After installation and power-up, monitor the Mark V diagnostic display for any new fault codes. Verify that all signal input channels are reading correctly against known process values. Run a full I/O check sequence per your site’s commissioning procedure. TOPNLMS recommends retaining the removed board as a secondary spare until the replacement has completed a full operational cycle.

Warranty Assurance

Every DS200TCPSG1ARE supplied by TOPNLMS is covered by a 12-month warranty from the date of shipment. Prior to dispatch, each board undergoes a multi-point inspection process that includes visual examination for component damage, connector integrity verification, and functional bench testing where applicable. Units that do not meet our quality threshold are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit or full refund within the warranty period. Our after-sales response target is 24 hours for initial acknowledgment and 72 hours for resolution proposal. Replacement units are dispatched from our Xiamen warehouse via DHL Express or equivalent international courier, with typical transit times of 3–7 business days to most global destinations.

For urgent breakdown situations, TOPNLMS offers priority dispatch with same-day or next-business-day shipping for in-stock units. Buyers are encouraged to contact our sales team directly to confirm stock availability and lead time before placing an order. All shipments include a packing list, inspection report, and warranty certificate.

TOPNLMS maintains a standing inventory of Mark V and Mark VIe series boards to support both planned maintenance programs and emergency procurement. We work with plant engineers, procurement managers, and MRO distributors across Asia, the Middle East, Europe, and the Americas.
