GE DS200TCEBG1AAB Ruggedized Relay Output for Harsh Environments

Product Overview

GE DS200TCEBG1AAB Ruggedized Relay Output for Harsh Environments

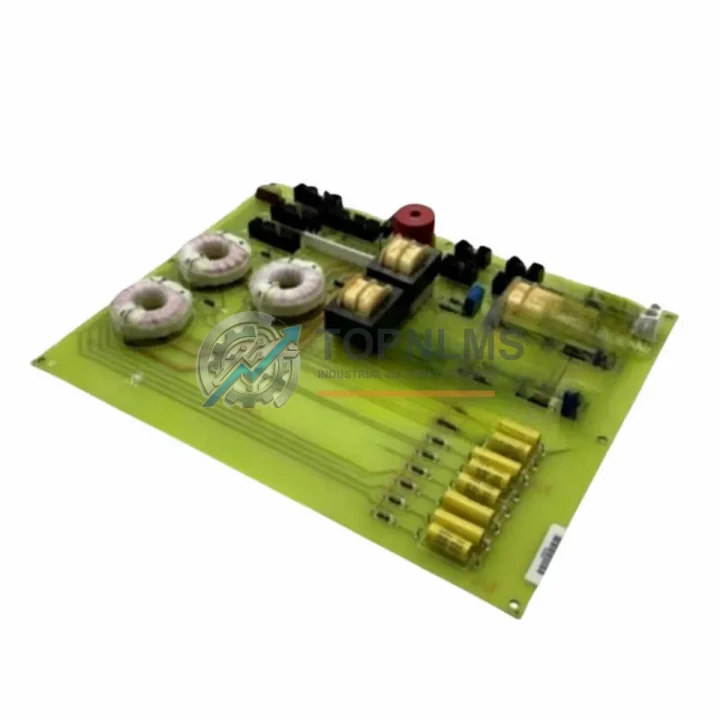

The GE DS200TCEBG1AAB is a discrete relay output board engineered for the GE Mark VI Turbine Control System, part of the proven DS200 Series platform deployed across power generation, oil & gas, petrochemical, mining, and heavy industrial facilities worldwide. Built to sustain reliable operation under extreme thermal cycling, high-humidity atmospheres, persistent mechanical vibration, and elevated electromagnetic interference (EMI), this module delivers the contact-closure precision that mission-critical turbine protection loops demand — without compromise.

In continuous-production environments where unplanned downtime translates directly into lost revenue and safety risk, the DS200TCEBG1AAB provides the discrete switching backbone that keeps turbine trip logic, protection sequences, and auxiliary relay circuits functioning with deterministic accuracy. Its robust relay contact architecture is rated for the inductive loads common in industrial switchgear panels, making it a dependable interface between the Mark VI controller and field devices such as solenoid valves, motor starters, and alarm annunciators.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200TCEBG1AAB operates as one node in a tightly integrated control architecture. Within a typical Mark VI turbine control cabinet, it works in concert with the DS200TCQAG1B analog I/O board, which handles 4–20 mA process signals from temperature and pressure transmitters, and the DS200SDCIG2A DC power supply board that conditions and distributes 28 VDC across the backplane. The relay outputs driven by the DS200TCEBG1AAB interface directly with field-side devices through terminal blocks on the DS200TCDAG1A terminal board, ensuring clean, noise-immune signal routing even in high-EMI environments adjacent to large variable-frequency drives (VFDs) and motor control centers.

For turbine protection sequences, the DS200TCEBG1AAB relay contacts are typically wired into trip solenoid circuits and auxiliary alarm relays, complementing the safety logic executed by the DS200TCEAG1B I/O controller board. In installations where redundant I/O is required for SIL-rated safety loops, the module pairs with the DS200TCRAG1A redundancy module to provide hot-standby relay output capability — a configuration common in combined-cycle power plants and offshore gas compression platforms.

Beyond the DS200 family, the relay outputs of this board frequently interface with third-party safety PLCs, Siemens S7-300/S7-400 series digital I/O modules, and Rockwell Automation ControlLogix output cards in hybrid control architectures. Communication between the Mark VI system and plant-level DCS platforms — such as Emerson DeltaV or Honeywell Experion PKS — is typically handled by the DS200TCPSG1A communication processor board, which passes relay status data upstream via Modbus TCP or OPC-DA. The DS200TCEBG1AAB’s contact states are thus visible at the SCADA level, enabling remote monitoring of turbine protection status without additional signal conditioning hardware.

In control cabinet assemblies, the module is typically mounted alongside DS200TCESG1A servo output boards and DS200TCPAG1A power amplifier boards, all sharing the same ruggedized Mark VI chassis backplane. This modular architecture allows maintenance teams to replace a failed relay output board in under 30 minutes without disturbing adjacent I/O modules — a critical advantage in facilities operating on tight maintenance windows or continuous production schedules.

Application in Critical Infrastructure

The DS200TCEBG1AAB has established a strong field record across the most demanding sectors of critical infrastructure. In combined-cycle and gas turbine power plants, it governs the discrete relay outputs that arm and disarm turbine trip circuits, fuel shutoff solenoids, and lube oil pump contactors — functions where a single relay failure can trigger an unplanned unit trip costing tens of thousands of dollars per hour in lost generation revenue.

In upstream oil and gas facilities — including offshore platforms and onshore compression stations — the board operates in control rooms subject to salt-laden air, wide ambient temperature swings, and continuous mechanical vibration from rotating equipment. Its conformal-coated PCB construction resists moisture ingress and corrosive atmospheres, maintaining relay contact integrity over multi-year service intervals between scheduled maintenance outages.

In mining and mineral processing plants, where high-dust environments and frequent motor starts generate severe electrical transients, the DS200TCEBG1AAB’s relay contacts provide the galvanic isolation needed to protect the Mark VI controller backplane from field-side voltage spikes. Similarly, in water and wastewater treatment facilities, the board controls pump start/stop sequences and valve actuator commands in environments with elevated humidity and chemical vapors.

For metallurgical and steel mill applications, where continuous casting lines and rolling mills demand 24/7 uptime, the DS200TCEBG1AAB serves as a proven spare-parts investment. Facilities that maintain a buffer stock of DS200 series boards — including this relay output module — consistently achieve faster mean-time-to-repair (MTTR) metrics compared to sites that rely solely on OEM lead times, which can extend to 16–24 weeks for legacy Mark VI components.

Security & Quality FAQ

Q1: What does the 12-month warranty cover, and how is a claim processed?
The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions from the date of shipment. If a unit fails within the warranty period, TOPNLMS will arrange a replacement or repair at no additional cost. Claims are initiated by contacting [email protected] with the order reference and a description of the fault. Return shipping instructions are provided within one business day.

Q2: How is each DS200TCEBG1AAB tested before shipment?
Every unit undergoes a full functional test prior to dispatch. This includes relay contact continuity verification, coil energization testing at rated voltage, and visual inspection for PCB damage, corrosion, or component anomalies. A test report is available upon request for customers with quality-assurance documentation requirements.

Q3: Is this board compatible with both Mark VI and Mark VIe control systems?
The DS200TCEBG1AAB is designed for the GE Mark VI platform. Compatibility with Mark VIe systems depends on the specific chassis and backplane configuration in use. Customers are advised to verify the target system’s I/O board slot assignments and backplane revision before ordering. TOPNLMS technical staff can assist with compatibility verification — contact us with your system’s Bill of Materials or controller model number.

Q4: Can TOPNLMS support long-term or repeat procurement of DS200 series boards?
Yes. TOPNLMS maintains a dedicated inventory of DS200 series modules — including relay output boards, analog I/O boards, power supply boards, and communication processor boards — to support ongoing MRO (Maintenance, Repair & Operations) procurement programs. Volume pricing and priority allocation are available for customers with scheduled maintenance contracts or annual blanket purchase orders. Contact our team at +86 18359293191 or [email protected] to discuss supply agreements.
