GE DS200TCDAF1BCM Replacement for Mark VI Speedtronic

Product Overview

GE DS200TCDAF1BCM Replacement for Mark VI Speedtronic: Seamless Migration & Upgrade Solution

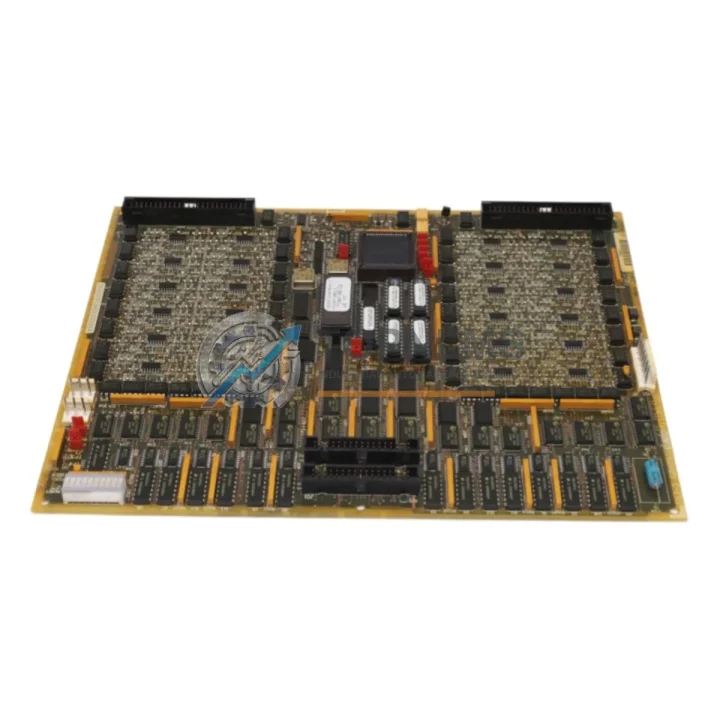

The GE DS200TCDAF1BCM is a critical EPROM Firmware Module used within the GE Mark VI Speedtronic turbine control platform. As legacy Mark V and early Mark VI installations reach end-of-life, plant engineers and procurement teams face increasing pressure to source verified replacement modules that maintain full backward compatibility with existing wiring harnesses, I/O racks, and communication architectures. This listing provides a thoroughly tested, ready-to-ship DS200TCDAF1BCM replacement module designed to minimize turbine downtime and eliminate the risk of unplanned outages caused by firmware corruption or module failure.

The DS200TCDAF1BCM houses the EPROM-based firmware set that governs core sequencing logic, protection trip functions, and communication handshaking within the Mark VI Speedtronic controller. When this module fails or becomes corrupted, the entire turbine control system can be rendered inoperable. Our replacement units are sourced from verified supply chains, subjected to pre-shipment functional testing, and shipped with full documentation to support your site commissioning team.

Whether you are executing a planned outage replacement, responding to an emergency trip event, or undertaking a broader Mark V to Mark VI migration project, the DS200TCDAF1BCM is a direct drop-in solution that requires no modification to existing terminal blocks, backplane connectors, or rack mounting hardware. The module slots directly into the DS200TCQAG1BHF TCQA controller board assembly and interfaces natively with the DS200SDCIG2AGB SDCI serial data communications interface board, preserving your existing MODBUS and proprietary GE serial communication topology without reconfiguration.

Compatibility Comparison Table

Seamless Upgrade Solutions

A successful DS200TCDAF1BCM replacement rarely occurs in isolation. In most Mark VI Speedtronic retrofit and migration projects, the EPROM firmware module is replaced as part of a broader system refresh that may also involve the DS200TCQAG1BHF TCQA controller board, which hosts the firmware module and manages the primary control loop execution. Engineers frequently pair the DS200TCDAF1BCM with the DS200SDCIG2AGB serial data communications interface to ensure that the updated firmware revision is fully synchronized with the communication stack.

For sites migrating from Mark V to Mark VI, the transition often requires updating the I/O terminal boards as well. The DS200IOCAG1B I/O controller board and associated DS200TBCBG1AAA terminal board are commonly replaced in the same outage window to eliminate compatibility gaps between the new firmware and legacy analog/digital I/O signal conditioning circuits. Where the existing power supply module — typically a DS200DCFBG1BNC DC power supply board — is approaching its service life, replacement during the same planned outage is strongly recommended to avoid a secondary failure event shortly after commissioning the new firmware.

Communication infrastructure upgrades are another common companion task. Sites running older DS200TCDAG1AAA TCDA communication boards may find that upgrading to a current-revision SDCI interface alongside the DS200TCDAF1BCM firmware set resolves intermittent communication faults that were previously attributed to software issues. For HMI connectivity, the Mark VI platform interfaces with GE Cimplicity SCADA workstations via the existing Ethernet or serial backbone, and no HMI reconfiguration is typically required when performing a like-for-like firmware module replacement.

In control cabinet environments where space is constrained, the DS200TCDAF1BCM’s identical form factor to its predecessors means that no DIN rail modifications, cable tray rerouting, or cabinet door clearance adjustments are necessary. This is a significant advantage over cross-platform migrations that require new rack assemblies or backplane adapters. Sites that also need to address aging DS200EXPSG1ADA expansion power supply boards or DS200DSPXG1ADB digital signal processor boards can schedule those replacements in the same maintenance window, consolidating downtime and reducing total project cost.

Retrofit Guidance FAQ

Q: Does replacing the DS200TCDAF1BCM require any wiring changes at the terminal blocks?
No. The DS200TCDAF1BCM is a direct plug-in replacement for the existing EPROM firmware module within the Mark VI Speedtronic controller. All field wiring connections at the terminal boards remain unchanged. The module interfaces with the backplane via the standard Mark VI edge connector, and no jumper or DIP switch reconfiguration is required for a like-for-like replacement.

Q: Is the DS200TCDAF1BCM compatible with both the R and S controller configurations in a TMR (Triple Modular Redundant) Mark VI system?
Yes. The DS200TCDAF1BCM firmware set is compatible with R, S, and T controller roles within a Mark VI TMR architecture. When replacing a module in a redundant system, it is recommended to perform the replacement one controller at a time while the remaining two controllers maintain turbine operation, following GE’s standard hot-swap procedure for non-critical firmware modules.

Q: What programming software is required after installing the replacement module?
The DS200TCDAF1BCM is supplied with the firmware pre-loaded. In most like-for-like replacement scenarios, no re-programming is required. However, if the site application requires a specific firmware revision or if the replacement is part of a Mark V to Mark VI migration, GE Toolbox or WorkstationST software will be used to load or verify the application program. Our technical team can advise on firmware revision compatibility prior to shipment.

Q: How does the DS200TCDAF1BCM handle communication protocol compatibility during a Mark V to Mark VI migration?
The Mark VI Speedtronic platform retains backward-compatible GE serial and MODBUS RTU communication support. The DS200TCDAF1BCM firmware set supports the same communication protocol stack as its predecessors, meaning that existing DCS interfaces, historian connections, and remote I/O links do not require reconfiguration in a standard replacement scenario. For sites adding new Ethernet-based communication (e.g., MODBUS TCP or EGD), additional communication interface boards may be required.

Q: What is the lead time and shipping arrangement for the DS200TCDAF1BCM?
Stock units are available for immediate dispatch from our Xiamen warehouse. Standard international shipping via DHL or FedEx Express typically delivers within 3–7 business days to most destinations. For urgent outage situations, same-day dispatch is available for orders confirmed before 14:00 CST. All units are shipped with anti-static packaging, individual serial number documentation, and a pre-shipment test report.

Warranty Assurance

Every DS200TCDAF1BCM unit supplied by TOPNLMS is covered by a 12-Month Replacement Warranty from the date of shipment. Our warranty program is designed specifically for industrial control system procurement, where module failures can have significant operational and financial consequences.

Prior to shipment, each unit undergoes a structured pre-shipment inspection that includes visual inspection for physical damage, EPROM data integrity verification, connector pin inspection, and functional bench testing where applicable. A test report is included with every shipment. Units that do not pass our inspection criteria are quarantined and not offered for sale.

In the event of a warranty claim, TOPNLMS provides a replacement unit dispatch within 48 hours of claim confirmation, subject to stock availability. Our after-sales response team is reachable via email at [email protected] and by phone at +86 18359293191. We support warranty claims with photographic evidence review and, where required, coordinate with site engineers to confirm the failure mode before processing the replacement.

For procurement teams requiring formal warranty documentation for vendor qualification or project records, a signed warranty certificate can be provided upon request at the time of order confirmation.
