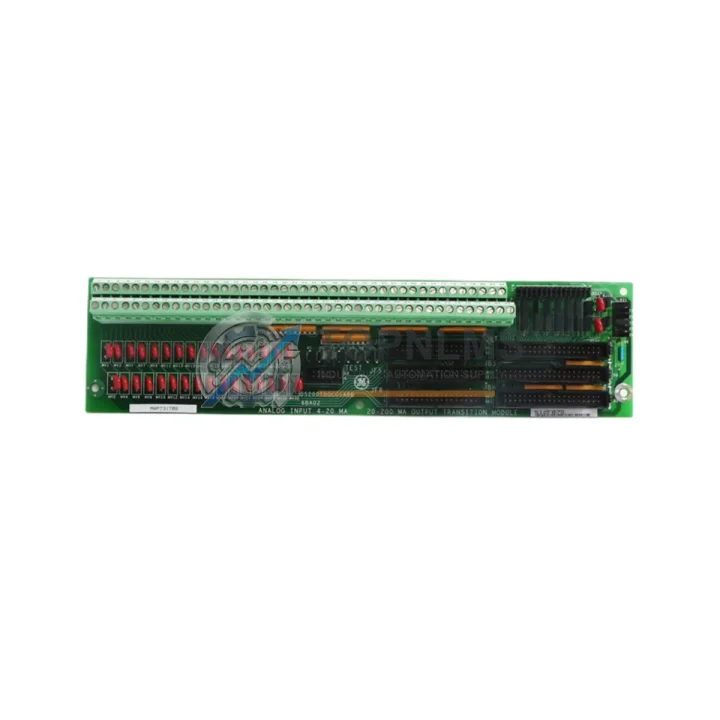

GE DS200TBQDG1ACC Ruggedized Termination Board Harsh Env

Product Overview

GE DS200TBQDG1ACC Ruggedized Termination Board: Industrial Resilience for Harsh Environments

The GE DS200TBQDG1ACC is a high-integrity termination board engineered for the GE Mark V Speedtronic turbine control platform — one of the most widely deployed DCS architectures in critical power generation, oil & gas, and heavy industrial facilities worldwide. Designed to operate reliably under extreme thermal cycling, high-humidity conditions, pervasive airborne particulates, continuous mechanical vibration, and intense electromagnetic interference, this module delivers the signal integrity and structural durability that mission-critical control systems demand.

As a core I/O signal interface component within the Mark V control cabinet, the DS200TBQDG1ACC serves as the physical and electrical bridge between field instrumentation and the Mark V processor cards. It terminates analog and digital field wiring with precision, ensuring that sensor signals — from thermocouples, RTDs, pressure transmitters, and proximity probes — are routed cleanly to the control logic without degradation. In environments where signal noise, ground loops, or loose terminations can trigger spurious trips or unsafe shutdowns, the robust construction of this board provides a measurable layer of protection.

Rugged Specifications Table

Comprehensive Protection Solutions

The DS200TBQDG1ACC does not operate in isolation — it is a foundational element within a tightly integrated Mark V control architecture. In a typical turbine control cabinet, this termination board works in concert with the DS200TCQAG1BHF TCQA Quad Core Processor, which handles the redundant voting logic that makes the Mark V a triple-modular-redundant (TMR) safety system. Field signals terminated on the DS200TBQDG1ACC are processed by the DS200TCDAG1AAA TCDA Analog I/O Board, which performs the analog-to-digital conversion critical for accurate turbine speed, temperature, and pressure monitoring.

Power integrity across the control cabinet is maintained by the DS200VPBLG1AEE Power Distribution Board, which conditions and distributes 28 VDC and 5 VDC rails to all Mark V cards including this termination board. Upstream, the DS200SDCCG1AFB Speed Detector Card interfaces with magnetic pickups and proximity probes to deliver real-time shaft speed data — signals that pass through termination boards like the DS200TBQDG1ACC before reaching the processor cores.

For communication and diagnostics, the Mark V system relies on the DS200CPCAG1A Communication Processor Card to interface with HMI workstations and SCADA systems via Modbus or proprietary GE protocols. In safety-critical zones, the DS200SLCCG3AEE Sequence of Events Card captures millisecond-resolution event logs — essential for post-incident analysis in power plants and refineries. The DS200IOCAG1A I/O Controller Card further extends the system’s field connectivity, managing discrete output signals to actuators, solenoid valves, and relay panels.

Complementing the termination board’s role in signal conditioning, the DS200TBCBG1AAA Terminal Board for Contact Inputs handles dry-contact and wet-contact discrete inputs from limit switches, pressure switches, and vibration sensors. Together, these modules form a cohesive, fault-tolerant I/O layer that underpins the Mark V’s reputation for continuous, uninterrupted turbine protection across decades of field deployment.

Application in Critical Infrastructure

The GE DS200TBQDG1ACC is a proven workhorse in some of the world’s most demanding industrial environments. In gas turbine power plants, it terminates the thermocouple arrays that monitor exhaust gas temperatures across all combustion cans — data that the Mark V uses to balance fuel distribution and prevent hot-section damage. A single faulty termination in this signal chain can cause nuisance trips or, worse, mask a developing over-temperature condition, making the integrity of this board a direct safety concern.

In oil & gas upstream and midstream facilities — compressor stations, LNG terminals, and offshore platforms — the DS200TBQDG1ACC operates in environments where ambient temperatures fluctuate dramatically, salt-laden air accelerates corrosion, and hydrocarbon vapors demand strict electrical safety compliance. The Mark V’s panel-enclosed architecture, combined with the robust PCB construction of this termination board, provides the isolation and signal fidelity required for safe operation in these hazardous areas.

In mining and mineral processing operations, where heavy equipment generates persistent vibration and electrical noise, the DS200TBQDG1ACC’s secure terminal block design prevents the micro-arcing and intermittent connections that plague lesser-quality termination hardware. Steel mills and aluminum smelters rely on Mark V-controlled drive systems where this board interfaces with high-current motor protection relays and variable frequency drives, ensuring that process uptime is maintained even under the electromagnetic stress of large induction motors cycling on and off.

Water and wastewater treatment plants operating 24/7 depend on the long-term reliability of their control infrastructure. Here, the DS200TBQDG1ACC’s compatibility with the full Mark V ecosystem means that maintenance teams can replace a worn termination board without re-engineering the control system — a critical advantage when plant shutdowns carry significant regulatory and operational consequences.

Security & Quality FAQ

Q1: What does the 12-month warranty cover for the DS200TBQDG1ACC?
The 12-month warranty covers all functional defects attributable to component failure or manufacturing anomalies under normal operating conditions. If the board fails to perform its specified I/O termination and signal interface functions within the warranty period, TOPNLMS will provide a replacement or full refund. The warranty period begins from the date of confirmed delivery.

Q2: How is the DS200TBQDG1ACC tested before shipment?
Every DS200TBQDG1ACC unit undergoes a multi-stage inspection process prior to dispatch: visual inspection for PCB damage, corrosion, and component integrity; functional bench testing to verify terminal continuity and signal path integrity; and a final quality-control check against GE’s original part specifications. Units that do not pass all stages are quarantined and not offered for sale.

Q3: Is this board compatible with all Mark V configurations, including TMR systems?
Yes. The DS200TBQDG1ACC is designed for use within the GE Mark V Speedtronic platform and is compatible with both simplex and triple-modular-redundant (TMR) Mark V configurations. It interfaces with the standard Mark V backplane and is interchangeable with other DS200TBQDG1ACC units across Mark V <R>, <S>, and <T> control cores. Always verify the revision suffix (ACC in this case) against your system’s BOM for exact compatibility.

Q4: Can TOPNLMS support long-term or repeat procurement of this part?
Yes. TOPNLMS maintains a dedicated inventory of GE Mark V series components, including the DS200TBQDG1ACC and related termination boards, processor cards, and power distribution modules. We support both one-time emergency replacement orders and scheduled long-term supply agreements for maintenance programs. Lead times are confirmed at the time of inquiry, and expedited shipping options are available for critical plant situations.
